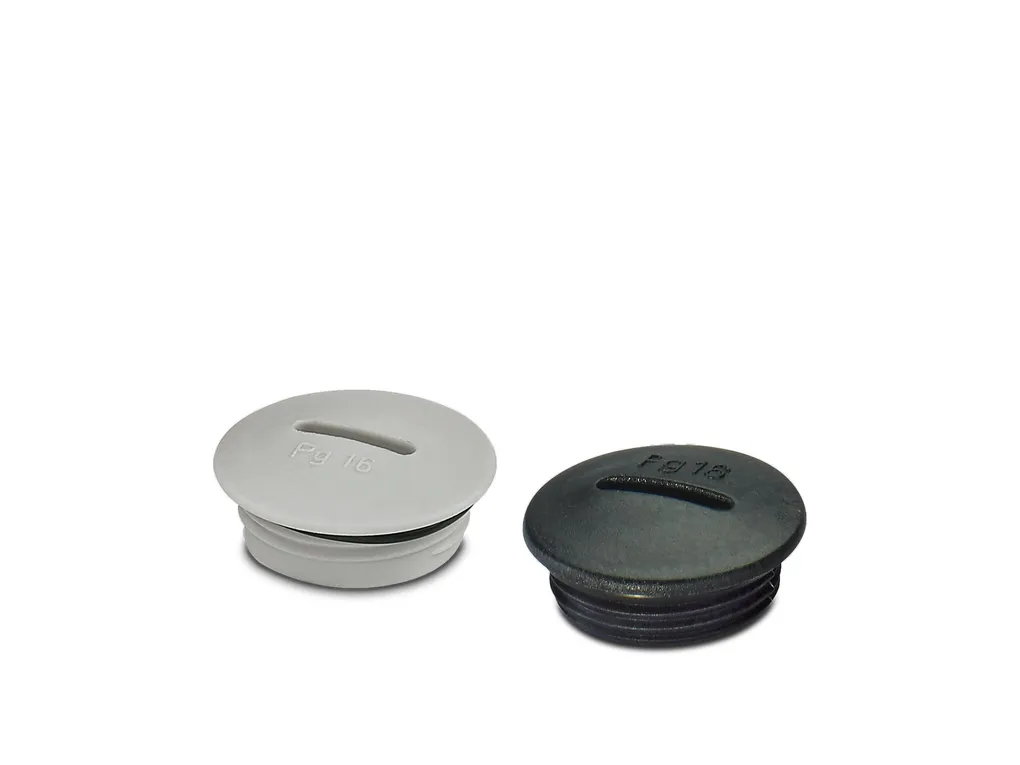

Product properties | Product type: Plug for cable screw gland |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e5caeb6b944cdb4ea438122e2df50b8f/-S204x204-FJPG Length: 9.5 mm Length of the connecting thread: 6 mm Diameter: 22.5 mm 27 mm 27 mm Connecting thread diameter: 22.5 mm Hexagon angular dimension: Diameter Thread type connection side: Pg16 |
Material specifications | Material: PA Seal material O-ring: EPDM Material for screw connection: PA |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -40°C ... 100°C |
ECLASS | ECLASS-11.0: 23111190 ECLASS-12.0: 23111190 ECLASS-13.0: 23111190 |
ETIM | ETIM 9.0: EC000032 |
UNSPSC | UNSPSC 21.0: 31261500 |
