Product properties | Type: B32 Product type: Protective cover Application: Standard Housing type: Protective cover Seal present: no |

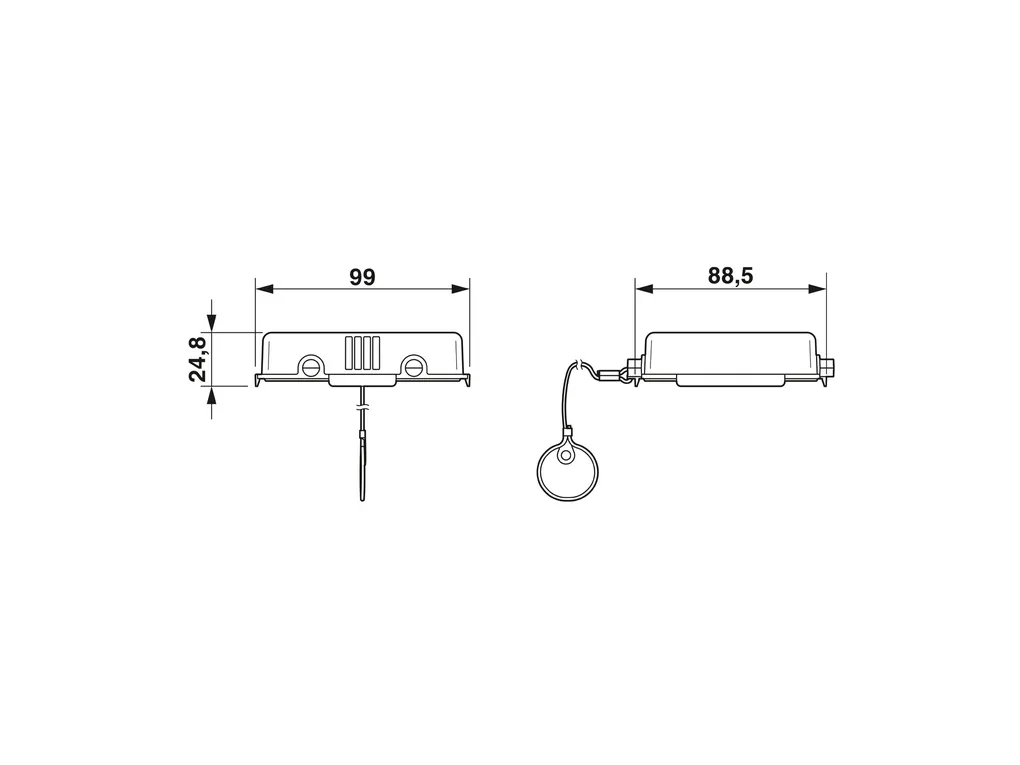

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6d7149d96f4e5c449240debac26c5bbb/-S204x204-FJPG Width: 88.5 mm Height: 24.8 mm Length: 99 mm |
Material specifications | Material: PA Material, protective cover: PA |
Mechanical properties | Mechanical data Locking type: Pin |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Enclosure rating (NEMA): 4 (UL50e) 4X (UL50e) 12 (UL50e) Ambient temperature (operation): -40°C ... 125°C |
Mounting | Assembly instructions: Plastic protective cover for short-term protection |
ECLASS | ECLASS-11.0: 27440208 ECLASS-12.0: 27440208 ECLASS-13.0: 27440208 |
ETIM | ETIM 9.0: EC002314 |
UNSPSC | UNSPSC 21.0: 39121400 |
