| Notes | General: Connectors may be operated only when there is no load/voltage. |
| Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required |
| Product properties | Type: D7 Product type: Contact insert with a fixed no. of positions Number of positions: 7 Note number of positions: 7+PE Connection profile: 7+PE Contact numbering: 1 - 7 Contact material type: turned Series: HC-D Insulation characteristics Overvoltage category: III Degree of pollution: 3 |

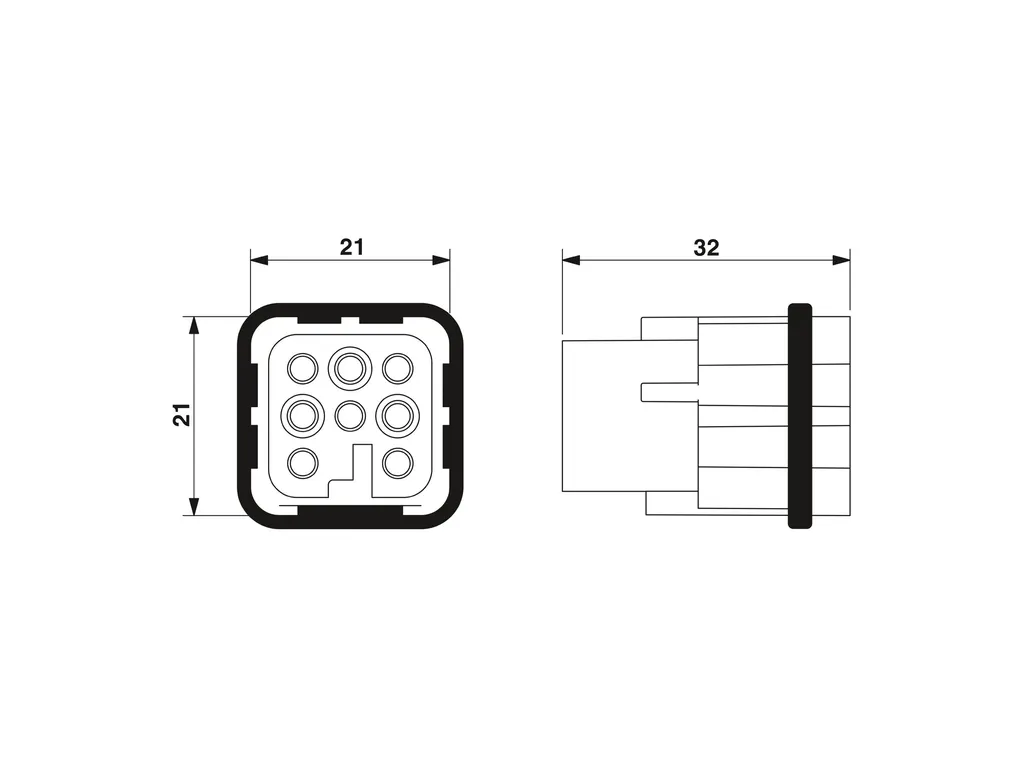

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/167c7dd2a00809408e248e28470ed5a7/-S204x204-FJPG Height: 32 mm Mechanical characteristics Contact diameter: 1.6 mm |
| Connection data | Connection technology Connection technology: Crimp connection Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 0.14 mm² ... 2.5 mm² Connection cross section AWG: 26 ... 14 Tightening torque: 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) Stripping length of the individual wire: 8 mm (0.14mm²...1.5mm²) 6 mm (2.5mm²) |
| Electrical properties | Rated voltage (III/3): 42 V Rated surge voltage: 0.8 kV Rated current: 10 A SCCR: 5 kA (UL 2237) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material Profile gasket: NBR, conductive Contact material: Copper alloy Contact surface material: Ag (alternatively Au) Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C (including heating up of contacts) |
| Standards and regulations | Constructional and testing regulations: DINVDE0627/86 DINVDE0110/02.79 DINVDE0110-1/04.97 IEC 60664-1, DINIEC 60512 IEC 60352 Tests: DINVDE0627/86 DINVDE0110/02.79 DINVDE0110-1/04.97 IEC 60664-1, DINIEC 60512 IEC 60352 Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
| ECLASS | ECLASS-11.0: 27440205 ECLASS-12.0: 27440205 ECLASS-13.0: 27440205 |
| ETIM | ETIM 8.0: EC000438 |
| UNSPSC | UNSPSC 21.0: 39121500 |
