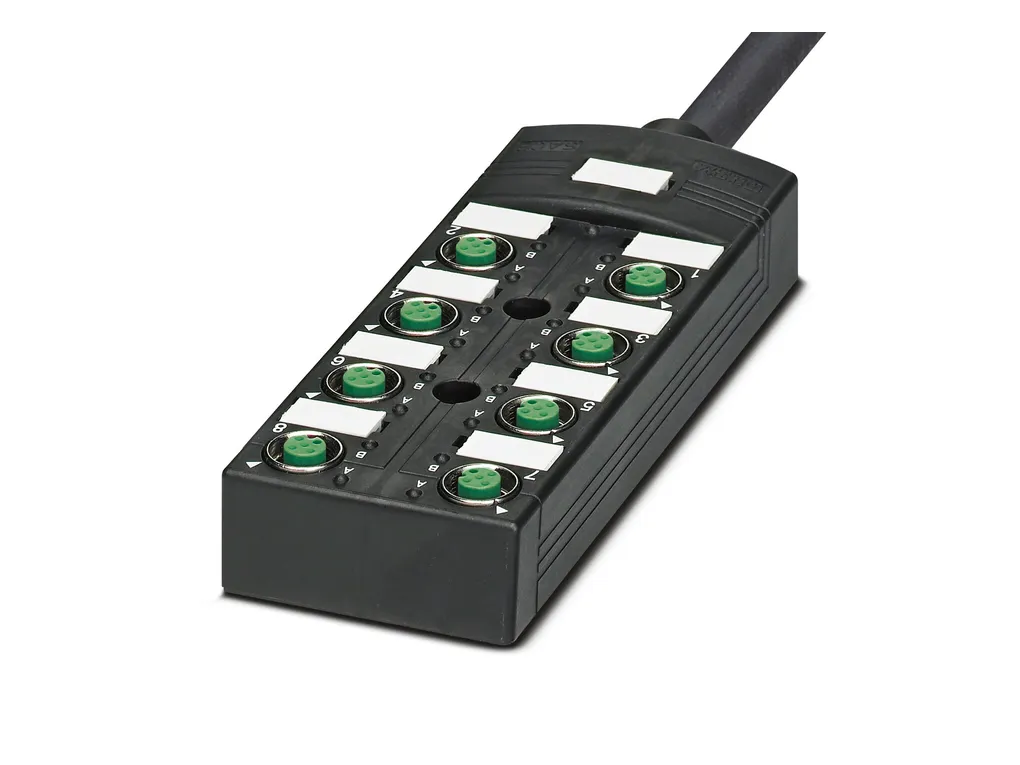

Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". |
Product properties | Product type: Distributor boxes with M8 to M12 slots Number of positions: 5 Application: Food processing industry Number of slots: 8 Coding: A LED: yes |
Material specifications | Material: Stainless steel 1.4404 PUR Seal material O-ring: FKM Contact material: CuSn6 Contact surface material: gold-plated Contact carrier material: PBT |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d09de8cd075b6249bb9c3917041d06ad/-S204x204-FJPG Width: 60 mm Height: 34.9 mm Length: 170 mm |
Connection data | Conductor connection Connection method: Fixed connection Tightening torque slot sensor/actuator cable: 0.4 Nm Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)=WH 1 / 2 (B)=GYPK 2 / 4 (A)=GN 2 / 2 (B)=RDBU 3 / 4 (A)=YE 3 / 2 (B)=WHGN 4 / 4 (A)=GY 4 / 2 (B)=BNGN 5 / 4 (A)=PK 5 / 2 (B)=WHYE 6 / 4 (A)=RD 6 / 2 (B)=YEBN 7 / 4 (A)=BK 7 / 2 (B)=WHGY 8 / 4 (A)=VT 8 / 2 (B)=GYBN 1-8 / 1 (+ 24 V)=BN 1-8 / 3 (0 V)=BU 1-8 / 5 (PE)=GNYE |
Signaling | Status display present: Yes |
Electrical properties | Max. operating voltage Umax: 30 VDC Local diagnostics: Supply voltage Green LED Status display I/O Yellow LED Nominal voltage UN: 24 VDC Rated current, total: 12 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 4 A |
Cable/line | Cable length: 5 m Sensor/actuator connection system: M12 socket Connection method: Fixed connection Outside diameter: 10.5 mm Conductor cross section signal conductor: 16x 0.5 mm² Conductor structure signal line: 64x 0.10 mm AWG signal line: 20 Conductor cross section voltage supply: 3x 1 mm² Conductor structure, voltage supply: 128x 0.10 mm AWG power supply: 17 Number of bending cycles: 1000000 Traversing rate: 3 m/s Traversing path: 5 m Tightening torque slot sensor/actuator cable: 0.4 Nm Ambient temperature (operation): -40°C ... 90°C (for fixed installation) -5°C ... 80°C (for flexible installation) |
Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP69K Ambient temperature (operation): -30°C ... 80°C |
ECLASS | ECLASS-11.0: 27440108 ECLASS-12.0: 27440108 ECLASS-13.0: 27440108 |
ETIM | ETIM 9.0: EC002585 |
UNSPSC | UNSPSC 21.0: 31251500 |
