1556825 PHOENIX CONTACT - Technology Bsa

Tecnichal data

Notes	General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties.
Mounting	Connection method: Screw connection

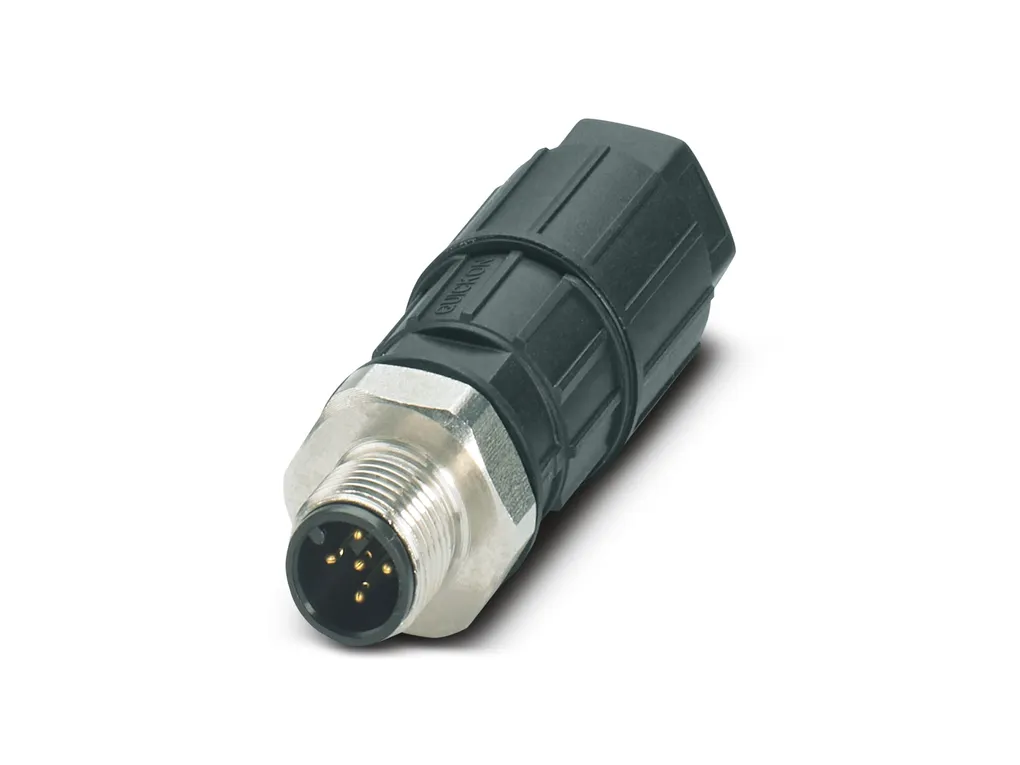

Product properties	Product type: Circular connector (cable-side) Sensor type: Universal Number of positions: 5 No. of cable outlets: 1 Shielded: no Coding: A Cable outlet: straight Pg screw connection: Pg9 Insulation characteristics Overvoltage category: II Degree of pollution: 3

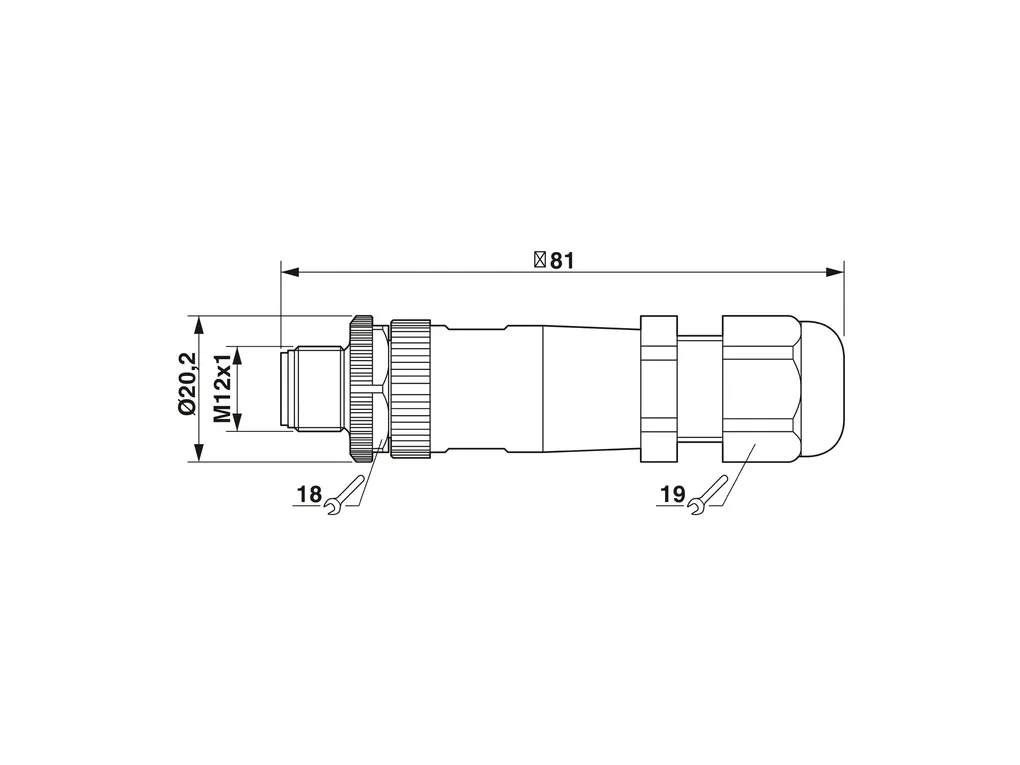

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7b9d8ebdd339a54baaec7227cbb29a5a/-S204x204-FJPG Width: 20.2 mm Height: 20.2 mm Length: 81 mm External dimensions Outside diameter: 6 mm ... 8 mm Housing Diameter housing: 20.2 mm
Material specifications	Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: PBT Contact material: CuZn Contact surface material: CuSnZn Contact carrier material: PA Material for screw connection: Zinc die-cast, nickel-plated
Connection data	Conductor connection Connection method: Screw connection Connection cross section: 0.25 mm² ... 0.75 mm² (without ferrule) 0.14 mm² ... 0.75 mm² (with ferrule) 0.25 mm² ... 0.75 mm² (solid) Connection cross section AWG: 24 ... 18 (without ferrule) 26 ... 20 (with ferrule) Stripping length of the individual wire: 5 mm Tightening torque: 0.4 Nm (M12 knurl) 0.2 Nm (Screw terminal blocks) 0.8 Nm ... 1 Nm (Pressure screw)
Electrical properties	Rated surge voltage: 1.5 kV Contact resistance: Ã¢¤ 8 mÃ© Insulation resistance: Ã¢¥ 100 MÃ© Nominal voltage U_N: 48 VAC 60 VDC Nominal current I_N: 4 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢¥ 100
Connector	Connection 1 Head design: Plug Head cable outlet: straight Head thread type: M12 Coding: A
Cable/line	Signal type/category: Universal Stripping length of the individual wire: 5 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -20°C ... 80°C (Plug / socket)
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
