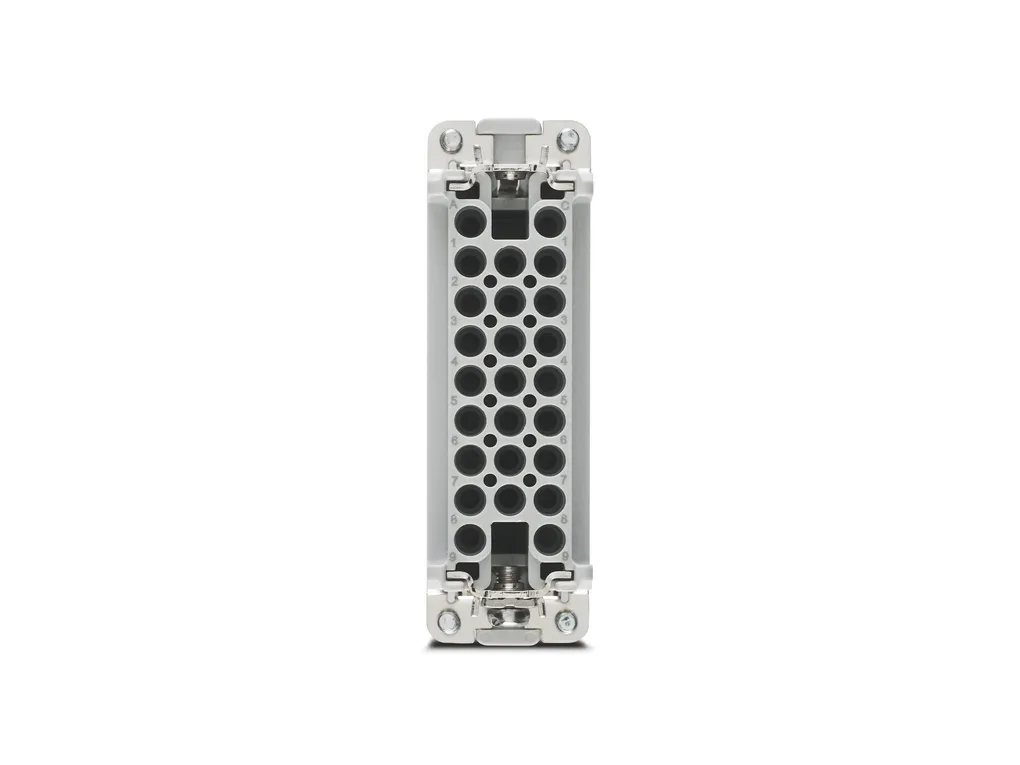

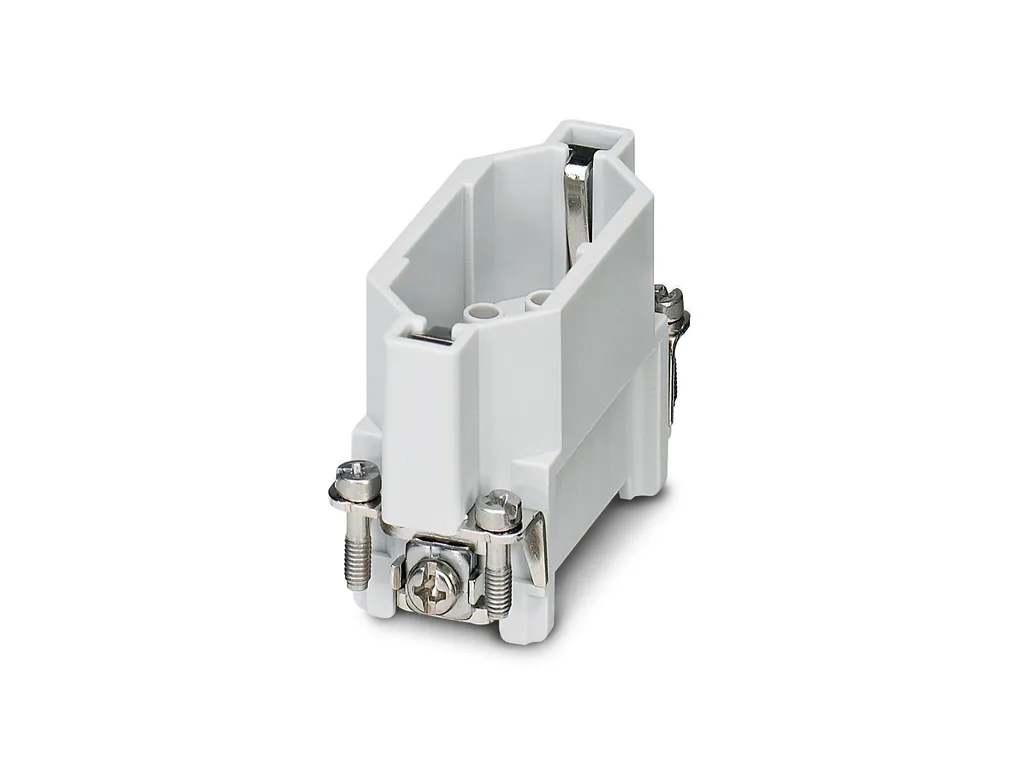

| Notes | General: For HEAVYCON housing type D25, CK1,6-ED crimp contacts (crimp contacts not supplied as standard) Connectors may be operated only when there is no load/voltage. It is imperative that guide pins (HC-CST) and sockets (HC-CBU) are used to prevent tip collision due to misalignment. |
| Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required |
| Product properties | Type: D25 D50 Product type: Contact insert with a fixed no. of positions Number of positions: 25 Note number of positions: 25+PE Connection profile: 25+PE Number of connections per position: 1 Contact material type: turned rolled Series: HC-D Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d3a97daa78eb314f9023ae50ad0f3e4d/-S204x204-FJPG Width: 22.5 mm Height: 33.5 mm Length: 72 mm Drill hole distance, horizontal: 66 mm Drill hole distance, vertical: 16 mm Mechanical characteristics Contact diameter: 1.6 mm |
| Connection data | Connection technology Connection technology: Crimp connection Number of connections per position: 1 Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 0.14 mm² ... 2.5 mm² Connection cross section AWG: 26 ... 14 Tightening torque: 0.7 Nm ... 1 Nm (PE connection) 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) Stripping length of the individual wire: 8 mm (0.14mm²...1.5mm²) 6 mm (2.5mm²) |
| Electrical properties | Rated voltage (III/3): 250 V Rated surge voltage: 4 kV Rated current: 10 A SCCR: 5 kA (UL 2237) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag (alternatively Au) Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C (including heating up of contacts) |
| Standards and regulations | Constructional and testing regulations: DINVDE0627/86 DINVDE0110/02.79 DINVDE0110-1/04.97 IEC 60664-1, DINIEC 60512 IEC 60352 Tests: DINVDE0627/86 DINVDE0110/02.79 DINVDE0110-1/04.97 IEC 60664-1, DINIEC 60512 IEC 60352 Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
| ECLASS | ECLASS-11.0: 27440205 ECLASS-12.0: 27440205 ECLASS-13.0: 27440205 |
| ETIM | ETIM 9.0: EC000438 |
| UNSPSC | UNSPSC 21.0: 39121500 |
