PHOENIX CONTACT 1596399

PHOENIX CONTACT 1596399

Not available

RC-09S1N8AT003 - Cable connector

M23, Cable connector, series: RC, angled, shielded: yes, Screw locking mechanism, No. of pos.: 8+1, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 6.5 mm ... 7.5 mm, coding: N

Product Code: 1596399 Copia - Copy

Copia - Copy

Partner cod.: 1596399 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Notes	General: Order crimp contacts 8 x ÃÃ 1 mm, 1 x ÃÃ 2 mm separately
Product properties	Product type: Circular connector (cable-side)
Connector	Insulating body Note: Order information: Order crimp contacts 8 x ÃÃ 1 mm, 1 x ÃÃ 2 mm separately Coding: N Connection method: Crimp connection Contact switching type: Socket Application: Signal Number of positions: 9 Direction of rotation: Standard Connection profile: 8+1 Contact diameter Power contacts: 2 mm Rated current Power contacts: 20 A Rated voltage: 48 VÃAC 74 VÃDC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Contact diameter Signal contacts: 1 mm Nominal current per signal contact: 8 A Housing Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23 Seal External cable diameter: 6.5 mm ... 7.5 mm

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_09923.pdf

Other products

Description other products

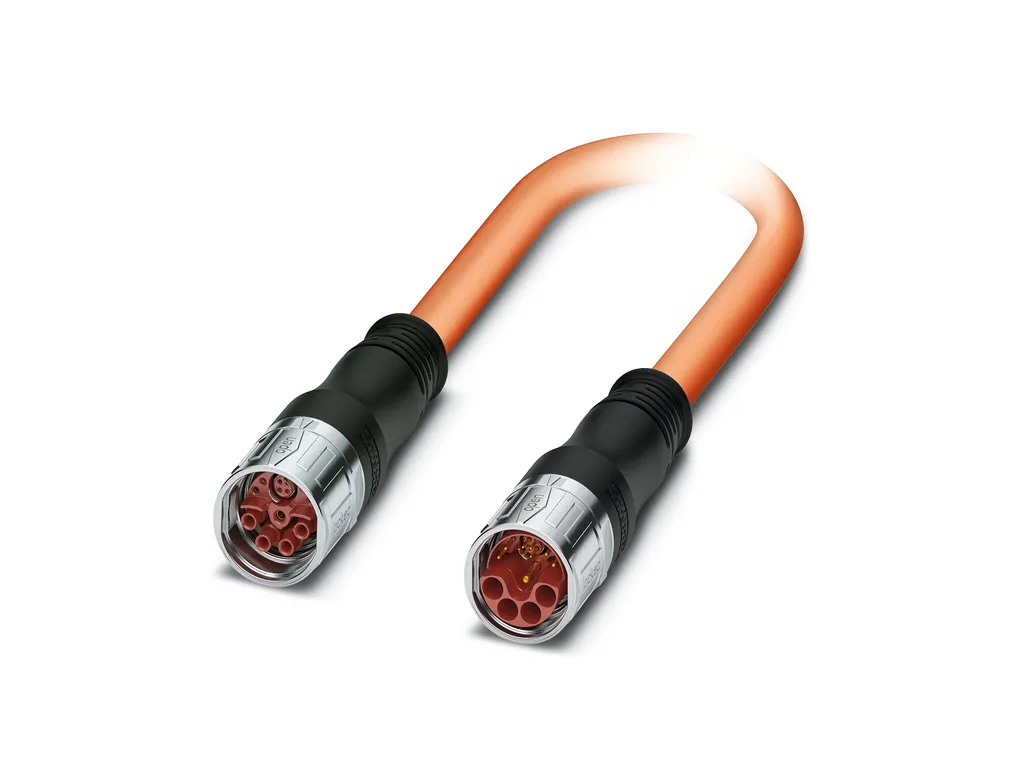

PHOENIX CONTACT 1622248

K-8E-M23M8/5,0-H00/M23F8-C5-S - Connector in molded plastic on both sides
Cod. Articolo: 1622248

Connector in molded plastic on both sides, series: KSH, M23-Socket, Straight, plastic molded, number of positions: 4+4+4+PE, type of locking: SPEEDCON, on M23-Pin, Straight, plastic molded, number of positions: 4+4+4+PE, type of locking: SPEEDCON, cable length: 5 m, shielded: yes, color of outer sheath: orange RAL2003, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1244566

PHOENIX CONTACT 1606070

UC-06P1N1280AB - Cable connector
Cod. Articolo: 1606070

M23, Cable connector, series: UC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 6, Direction of rotation: Standard, contact connection type: Pin, Solder cup, cable diameter range: 9.5 mm ... 11.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1242070

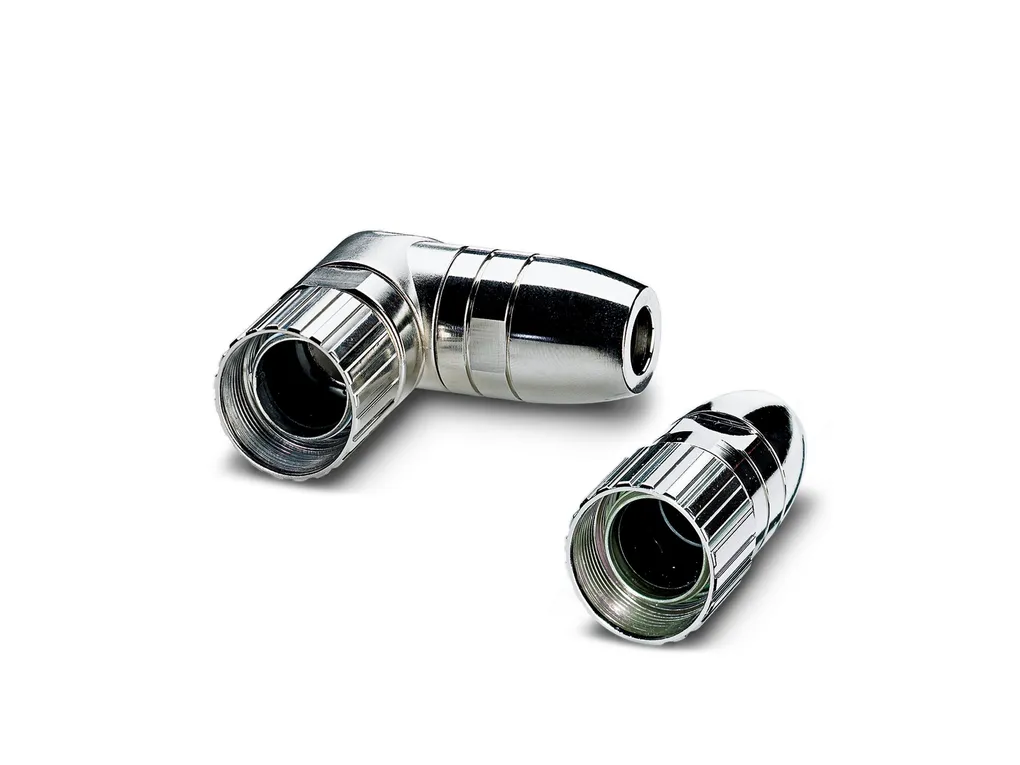

PHOENIX CONTACT 1592684

RC-000000080G2 - Housing for circular connector
Cod. Articolo: 1592684

M23, Housing for circular connector, straight, shielded: no, Screw locking mechanism, cable diameter range: 3 mm ... 10.5 mm, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240261
