Mounting | Connection method: Solder connection |
Product properties | Product type: Circular connectors (device side) Thread type: M23 |
Material specifications | Flammability rating according to UL 94: V0 |
Connection data | Conductor connection Connection method: Solder connection |

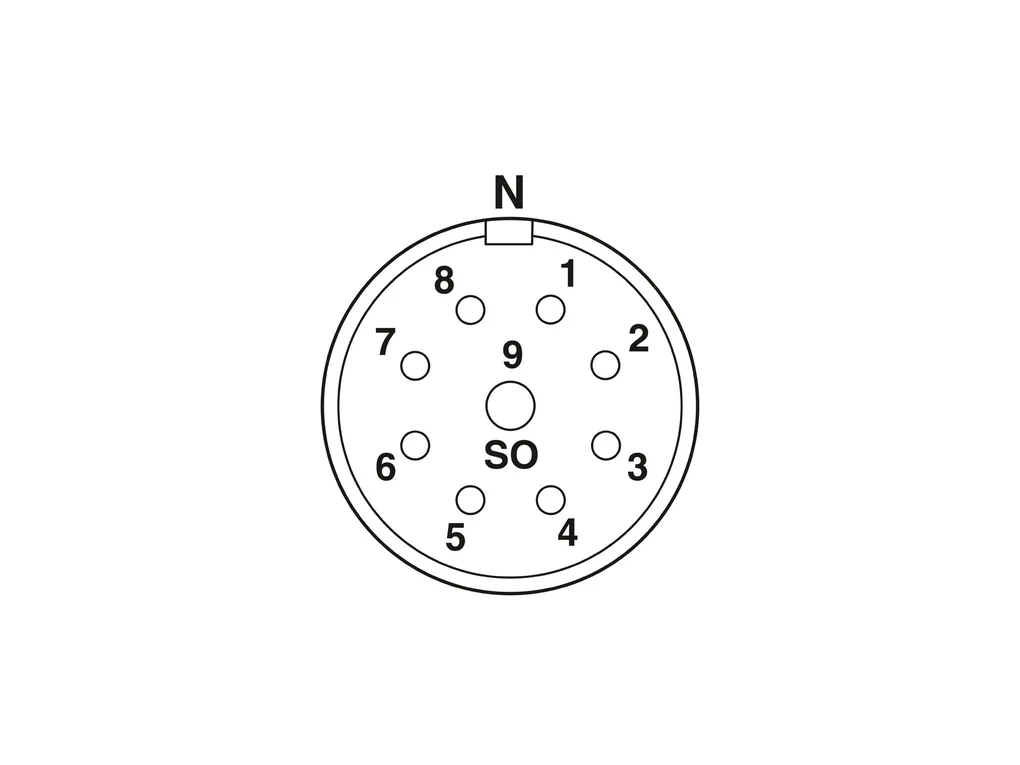

Connector | Insulating body Coding: N Insertion/withdrawal cycles: 50 Connection method: Solder cup Contact switching type: Socket Application: Signal Number of positions: 9 Direction of rotation: Counter direction Connection profile: 8+1 Contact diameter Power contacts: 2 mm Litz wire cross-section Power contacts min.: 0.08 mm² Litz wire cross-section Power contacts max.: 2.5 mm² Rated current Power contacts: 20 A Rated voltage: 48 VAC 74 VDC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Contact diameter Signal contacts: 1 mm Litz wire cross-section Signal contacts min.: 0.08 mm² Litz wire cross-section Signal contacts max.: 1 mm² Nominal current per signal contact: 8 A Housing Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 |
ECLASS | ECLASS-11.0: 27440109 ECLASS-12.0: 27440109 ECLASS-13.0: 27440109 |
ETIM | ETIM 8.0: EC003569 |
UNSPSC | UNSPSC 21.0: 39121400 |
