PHOENIX CONTACT 1599614
PHOENIX CONTACT 1599614
PHOENIX CONTACTNot available

RC-12S2N120000 - Contact insert

Contact insert, M23, number of positions: 12, contact connection type: Socket, Solder cup, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241095
Product Code: 1599614
Partner cod.: 1599614
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesProduct type: Contact insert

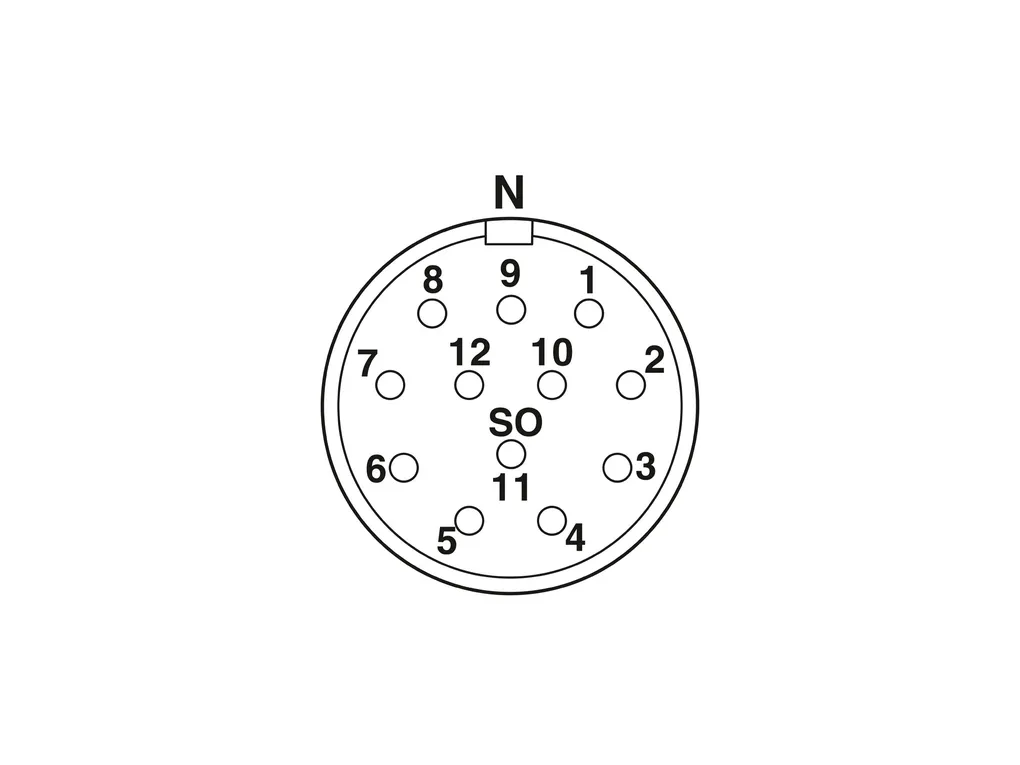

Number of positions: 12
Connection profile: 12
Application: Signal
Series: NC
RC
RM
TU
UC
Coding: N
Thread type: M23
Electrical propertiesContact
Contact diameter: 1 mm
Min. cross section: 0.08 mm²
Max. cross section: 1 mm²
Max. current: 8 A
Nominal voltage UN: 48 VÂAC 74 VÂDC
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 1.5 kV
Material specificationsInsulator material: PBT
Contact material: CuZn
Contact surface: Nickel-plated, gold coating
ConnectorDirection of rotation: Counter direction
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: 50
MountingConnection method: Solder cup
