PHOENIX CONTACT 1600333

PHOENIX CONTACT 1600333

Not available

RC-12S2S8A1200 - Cable connector

M23, Cable connector, series: RC, straight, shielded: no, Screw locking mechanism, contact connection type: Socket, Crimp connection, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241205

Product Code: 1600333 Copia - Copy

Copia - Copy

Partner cod.: 1600333 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Notes	General: Order crimp contacts ÃÃ 1 mm separately
Product properties	Product type: Circular connector (cable-side)
Connector	Insulating body Note: Order information: Order crimp contacts ÃÃ 1 mm separately Connection method: Crimp connection Contact switching type: Socket Application: Signal Number of positions: 12 Rated voltage: 48 VÃAC 74 VÃDC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Housing Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: Pg11 Degree of protection (plugged in): IP65 IP67 IP68 Thread type: M23

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_10247.pdf

Other products

Description other products

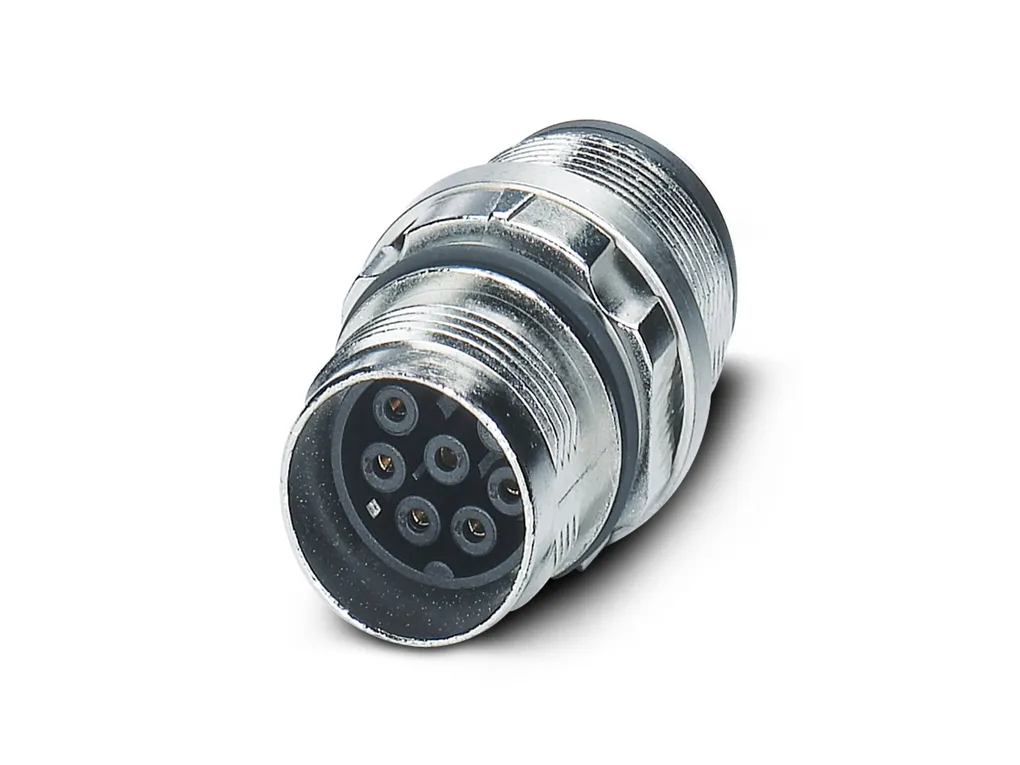

PHOENIX CONTACT 1613546

ST-3ES1N8A6100S - Device connector front mounting
Cod. Articolo: 1613546

Device connector front mounting, straight, for standard and SPEEDCON interlock, M17, number of positions: 3+PE, contact connection type: Socket, Axial O-ring, Central fixing, shielded: yes, degree of protection: IP67, number of positions: 4, connection method: Crimp connection, series: ST, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1242775

PHOENIX CONTACT 1620378

K-5E-M40 M9/010-C05/M40 F8 - Connector in molded plastic on both sides
Cod. Articolo: 1620378

Connector in molded plastic on both sides, series: KSM, M40-Socket, Straight, plastic molded, number of positions: 2+3+PE, type of locking: Screw locking mechanism, on M40-Pin, Straight, plastic molded, number of positions: 2+3+PE, cable length: 10 m, shielded: yes, color of outer sheath: orange RAL2003

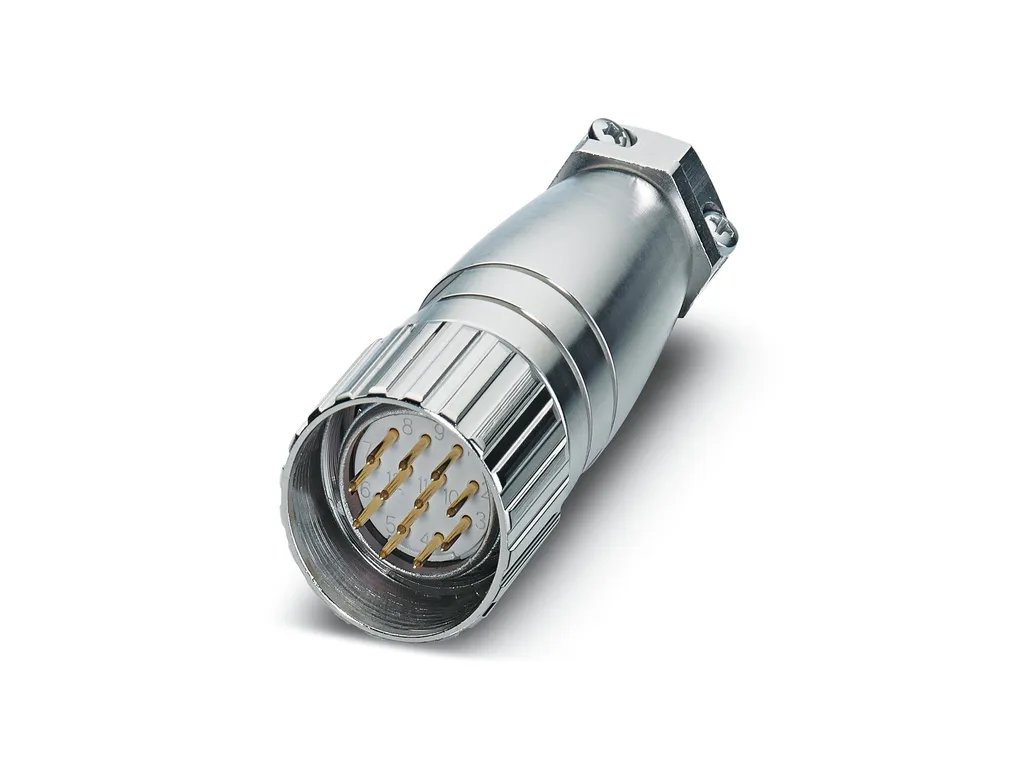

PHOENIX CONTACT 1595481

RC-09P1N8AR1Q8 - Cable connector
Cod. Articolo: 1595481

M23, Cable connector, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 8+1, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, cable diameter range: 6.5 mm ... 7.5 mm, coding: N
