Notes | General: Order crimp contacts à 1 mm separately |

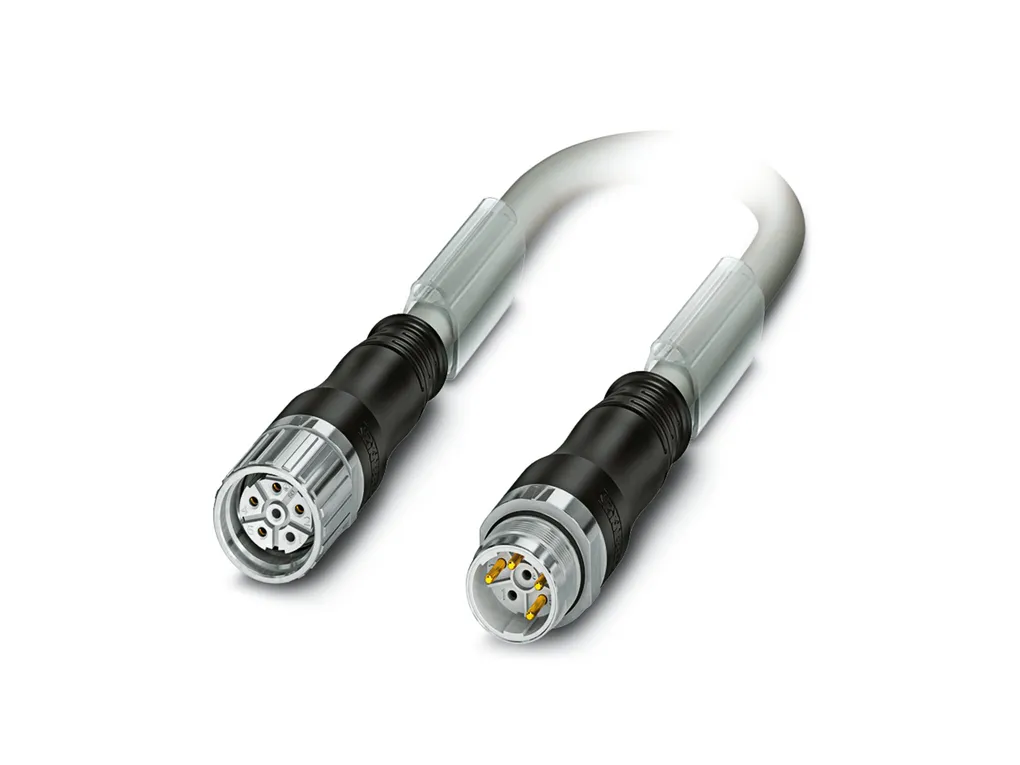

Product properties | Product type: Circular connector (cable-side) |
Connector | Insulating body Note: Order information: Order crimp contacts à 1 mm separately Coding: N Connection method: Crimp connection Contact switching type: Pin Application: Signal Number of positions: 17 Direction of rotation: Standard Connection profile: 17 Contact diameter Power contacts: 1 mm Rated current Power contacts: 8 A Rated voltage: 48 VAC 74 VDC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Housing Degree of protection (plugged in): IP67 Seal External cable diameter: 3.5 mm ... 4.5 mm Seal material: NBR |
ECLASS | ECLASS-11.0: 27281101 ECLASS-12.0: 27281101 ECLASS-13.0: 27281101 |
ETIM | ETIM 8.0: EC000761 |
UNSPSC | UNSPSC 21.0: 39131500 |
