PHOENIX CONTACT 1619919
PHOENIX CONTACT 1619919
PHOENIX CONTACTNot available

CA-16P1NA22S00 - Device connector front mounting

M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 16, Direction of rotation: Standard, contact connection type: Pin, Solder-in connection, Flat gasket, 4x Ø 3.2, flange dimensions: 25 mm x 25 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1243897
Product Code: 1619919
Partner cod.: 1619919
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesProduct type: Circular connectors (device side)
DimensionsLength of the solder pin: 10 mm
ConnectorInsulating body

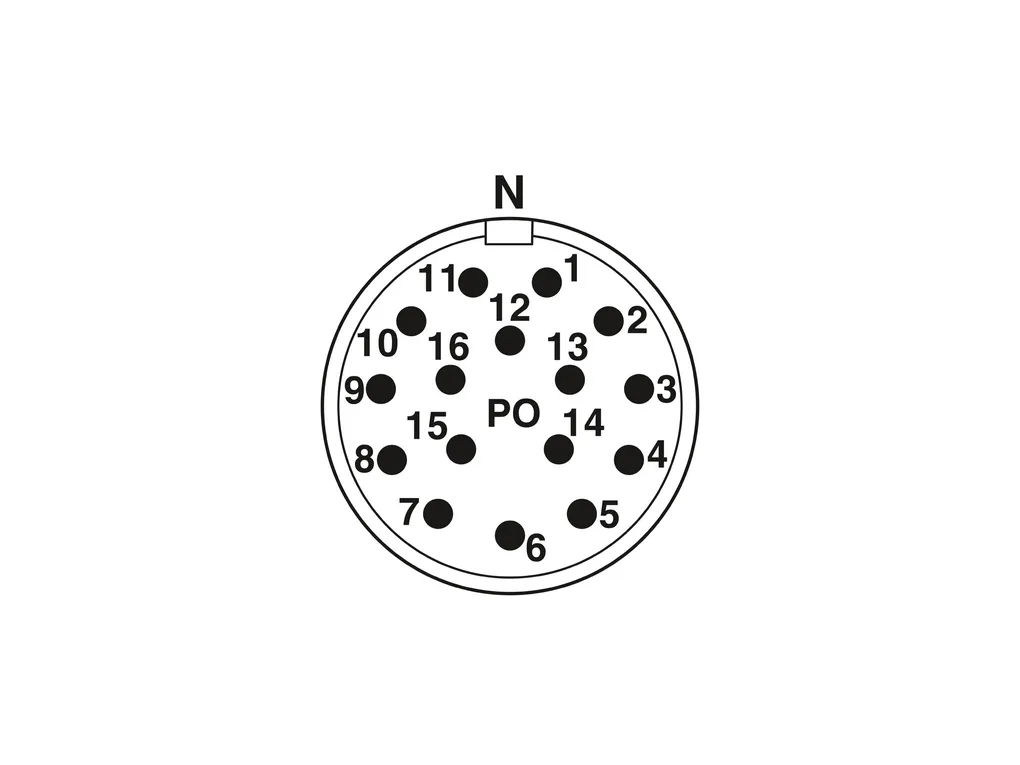

Coding: N
Insulation body material: PBT
Contact material: CuZn
Contact surface material: Ni/Au
Connection method: Solder-in connection
Contact switching type: Pin
Application: Signal
Number of positions: 16
Direction of rotation: Standard
Connection profile: 16
Contact diameter Power contacts: 1 mm
Rated current Power contacts: 8 A
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: GD-Zn
Flange dimensions: 25Âmm x 25Âmm
Type of locking: for standard and SPEEDCON interlock
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00058.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_12048.pdf
