PHOENIX CONTACT 1623277
PHOENIX CONTACT 1623277
PHOENIX CONTACTNot available

HC-26S1N8AQ0DU - Rear panel feed-through

Rear panel feed-through, straight, Screw locking mechanism, M27, number of positions: 26, contact connection type: Socket, Axial O-ring, Central fixing, shielded: yes, degree of protection: IP67, when plugged in, cable diameter range: 2 mm ... 14.5 mm, number of positions: 26, connection method: Crimp connection, series: HC
Product Code: 1623277
Partner cod.: 1623277
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
NotesGeneral: Order crimp contacts Ø 1 mm separately
MountingMounting: Central fixing
Connection method: Crimp connection
Product propertiesProduct type: Circular connector (cable-side)

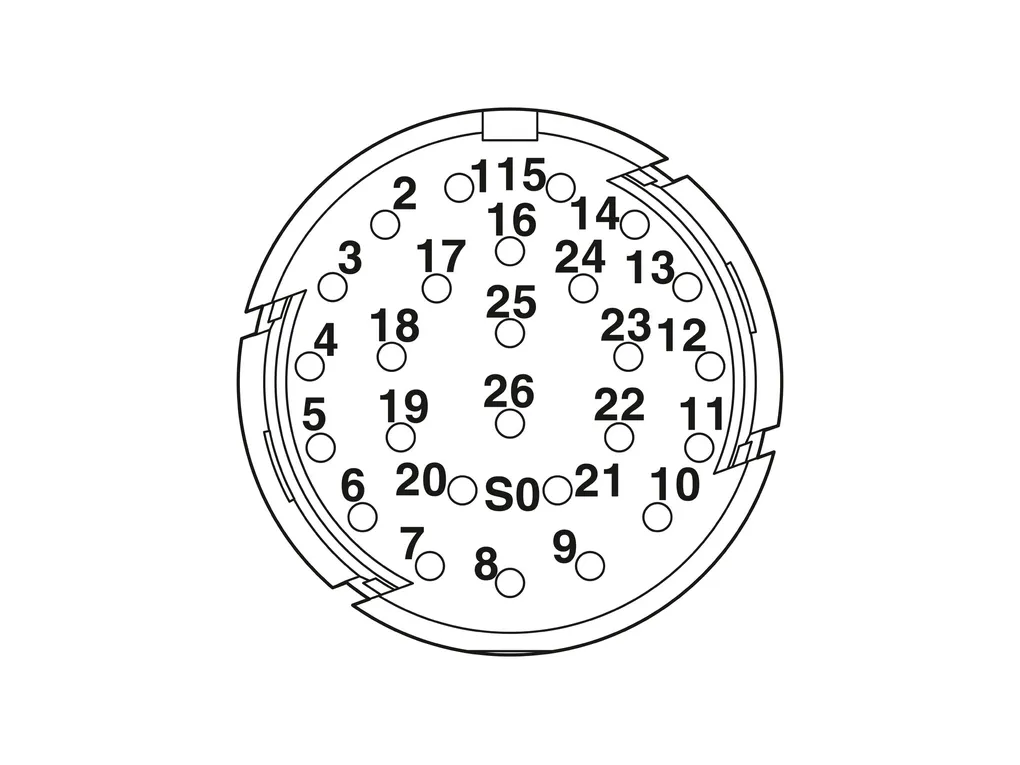

Number of positions: 26
Connection profile: 26
Application: Signal
Series: HC
Shielded: yes
Coding: N
Thread type: M27
Material specificationsFlammability rating according to UL 94: V0
Seal material: NBR
Housing material: Metal
Connection dataConductor connection
Connection method: Crimp connection
Electrical propertiesContact
Contact diameter: 1 mm
Max. current: 8 A
Nominal voltage UN: 48 VÂAC 74 VÂDC
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 1.5 kV
ConnectorType: straight
Direction of rotation: Standard
Cable/lineExternal cable diameter: 2 mm ... 14.5 mm
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67, when plugged in
Ambient temperature (operation): -20°C ... 125°C
Altitude: 2000 m
