| Product properties | Product type: Full screw connection Application: for data connectors No. of conductors: 1 Manufacturer: Pflitsch Manufacturer Designation: 25056 dpmk 1/10 Shielded: no |
| Characteristics | Conductor sealing range: 9.50 mm ... 10.00 mm |

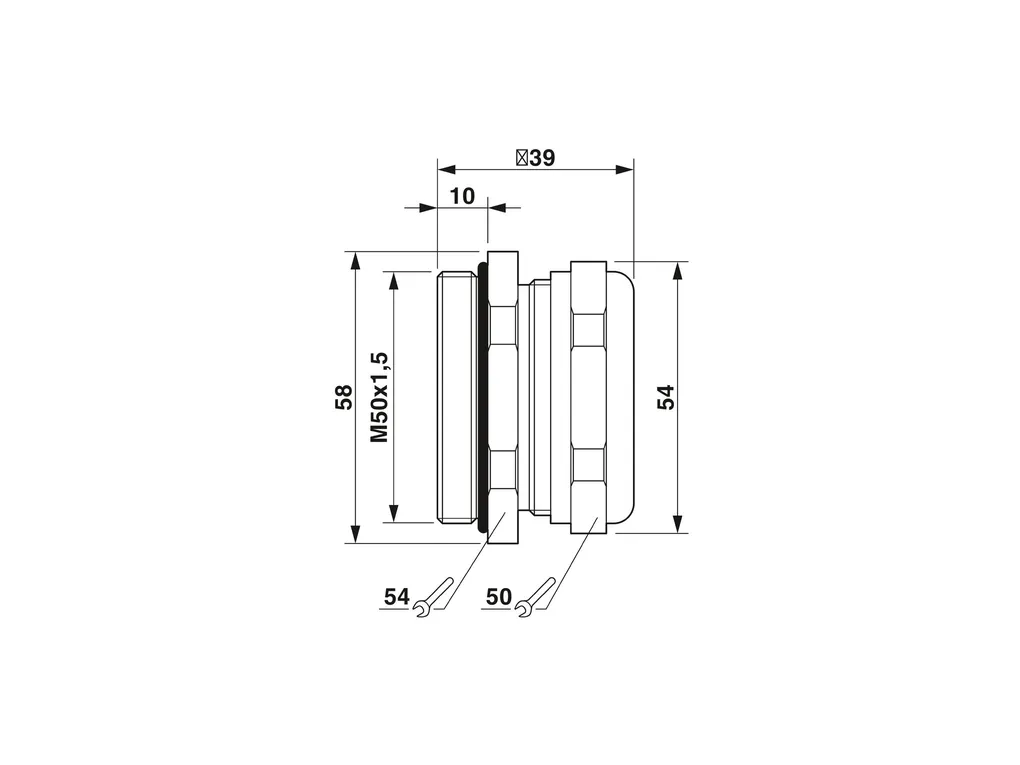

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c1e5d52f47e6a344b8a1595de5b90f72/-S204x204-FJPG Height: 58 mm Length: 39 mm Length of the connecting thread: 10 mm Wrench size, union nut: 50 mm Wrench size, support: 54 mm Hexagon angular dimension: 58 mm Thread type connection side: M50 x 1.5 Thread pitch: 1.5 mm Internal dimensions Internal diameter: 37 mm |
| Material specifications | Color: Brass Seal material O-ring: NBR Seal material: TPE Material for screw connection: Brass, nickel-plated |
| Cable/line | External cable diameter (Cable 1): 9.5 mm ... 10 mm Halogen-free: no |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -40°C ... 125°C |
| ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
| ETIM | ETIM 9.0: EC000441 |
| UNSPSC | UNSPSC 21.0: 39121300 |
