PHOENIX CONTACT 1660371
PHOENIX CONTACT 1660371
PHOENIX CONTACTNot available

HC-B 10-AP-GY - Cover plate

HEAVYCON cover plate, for panel cutouts of type B10/HV3, 3.5 mm thick, gray
Product Code: 1660371
Partner cod.: 1660371
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
NotesGeneral: For panel cutouts of type B10/HV3
Product propertiesType: B10 / HV3
Product type: Cover plate
Seal present: yes

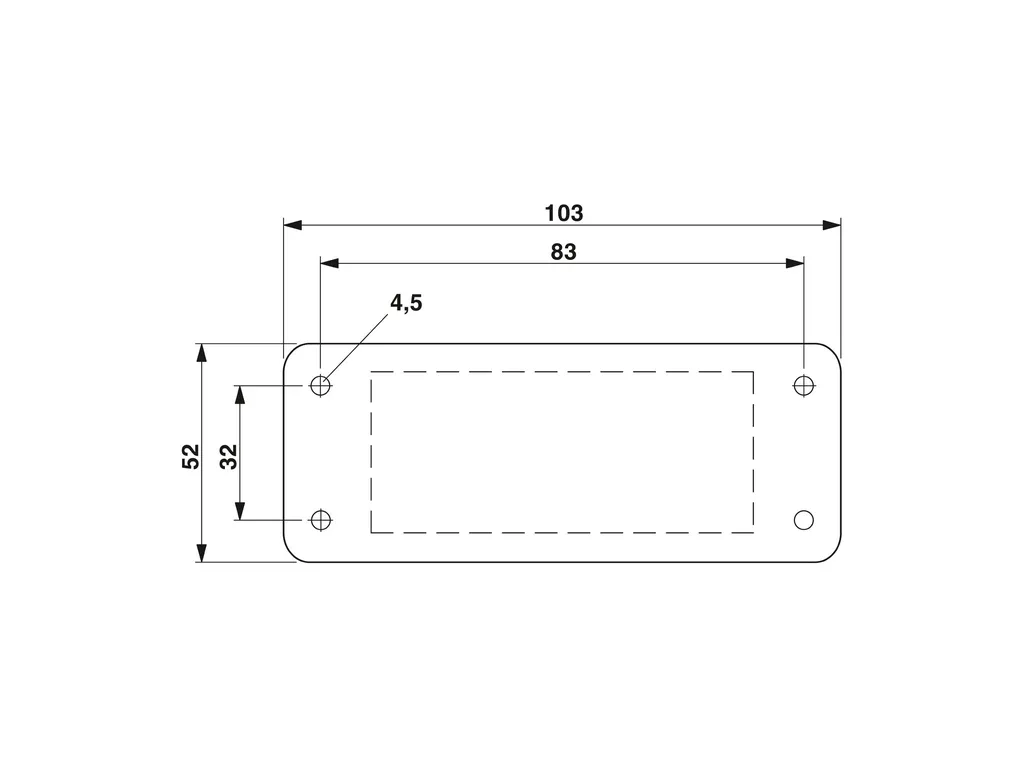

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8aae7a7485969e4d88cb5837f73334b7/-S204x204-FJPG
Width: 52 mm
Height: 4.5 mm
Length: 103 mm
Drill hole distance, horizontal: 83 mm
Drill hole distance, vertical: 32 mm
Hole diameter: 4.5 mm
Installation dimensions
Width of the assembly cutout: 36 mm
Length of the assembly cutout: 65 mm
Material specificationsMaterial: PA
Flammability rating according to UL 94: HB
Seal material: PTS
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP54
Ambient temperature (operation): -20°C ... 100°C
