| Notes | General: For panel cutouts of type B24/HV16 |
| Product properties | Type: B24 / HV16 Product type: Cover plate Seal present: yes |

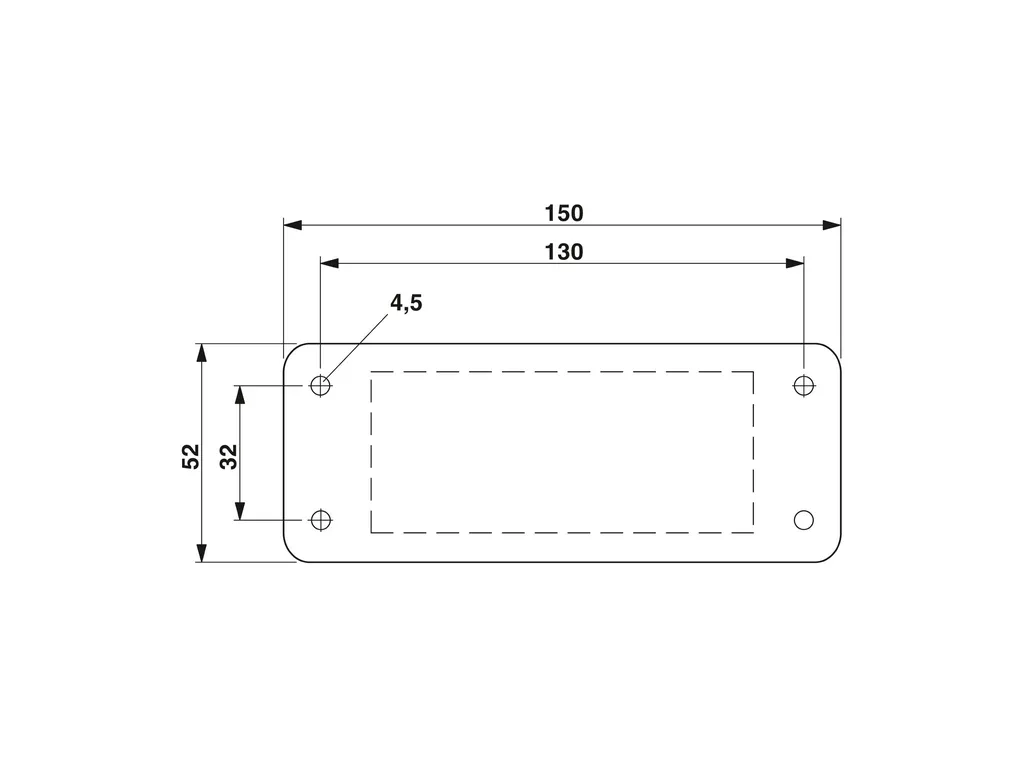

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ac877ff032cd0547b0d88f705f2df758/-S204x204-FJPG Width: 52 mm Height: 4.5 mm Length: 150 mm Drill hole distance, horizontal: 130 mm Drill hole distance, vertical: 32 mm Hole diameter: 4.5 mm Installation dimensions Width of the assembly cutout: 36 mm Length of the assembly cutout: 113 mm |
| Material specifications | Material: PA Flammability rating according to UL 94: HB Seal material: PTS |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 Ambient temperature (operation): -20°C ... 100°C |
