PHOENIX CONTACT 1661312
PHOENIX CONTACT 1661312
PHOENIX CONTACTNot available

HC-D 15-ADP/1 DSUB 9 - Adapter plate

D-SUB adapter plate, for one D-SUB connector, no. of positions 9, housing series HC-D 15...
Product Code: 1661312
Partner cod.: 1661312
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesType: D15
Product type: Adapter plate
Number of positions: 9
Seal present: yes

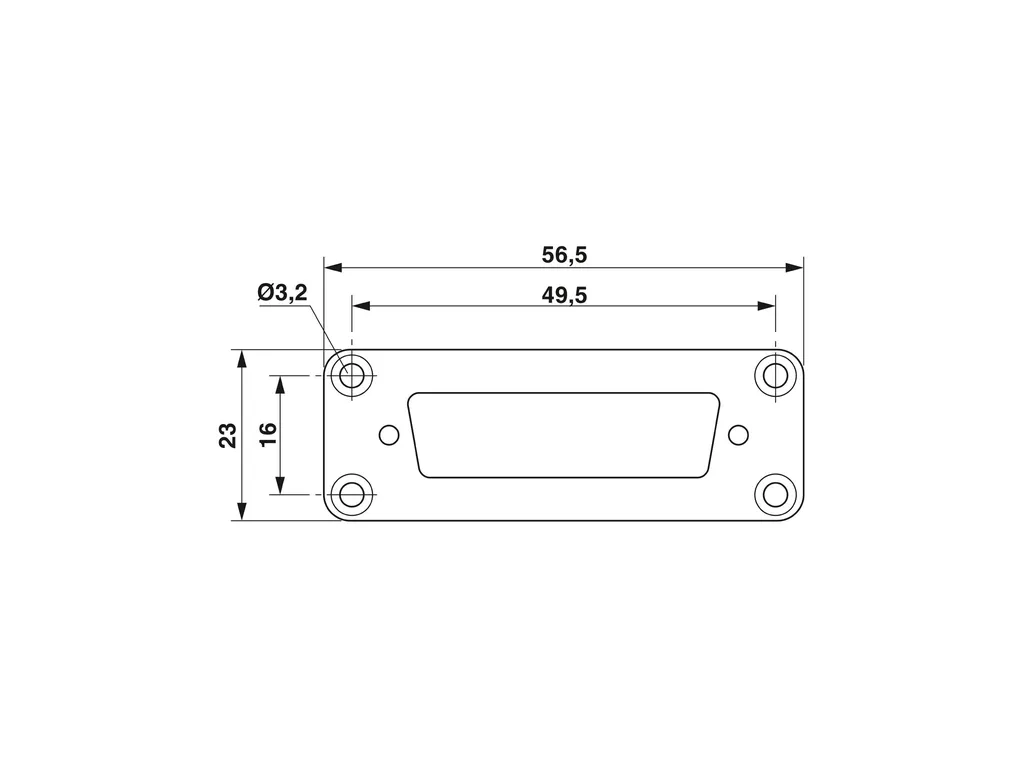

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/51a7b92a0604324fb55fc4657120bb97/-S204x204-FJPG
Width: 23 mm
Height: 7 mm
Length: 57 mm
Material specificationsMaterial: PA
Flammability rating according to UL 94: HB
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP54
Ambient temperature (operation): -20°C ... 100°C
MountingAssembly instructions: With mounting screws: 1) Phillips self-tapping screw 2.9 x 6.2/2) M3 x 10 DIN 84
Mounting position of the adapter plate in the sleeve housing: T is visible after mounting in the housing. Mounting position of the adapter plate in the panel mounting base/socket housing/coupling housing: A is visible after mounting in the housing. Mounting position of the D-SUB (after mounting in the housing): in front of the mounting panel (front mounting)
