| Notes | General: For panel cutouts of type B24, cannot be used for panel mounting bases having a pre-mounted protective cover |
| Product properties | Type: B24 Product type: Adapter plate |

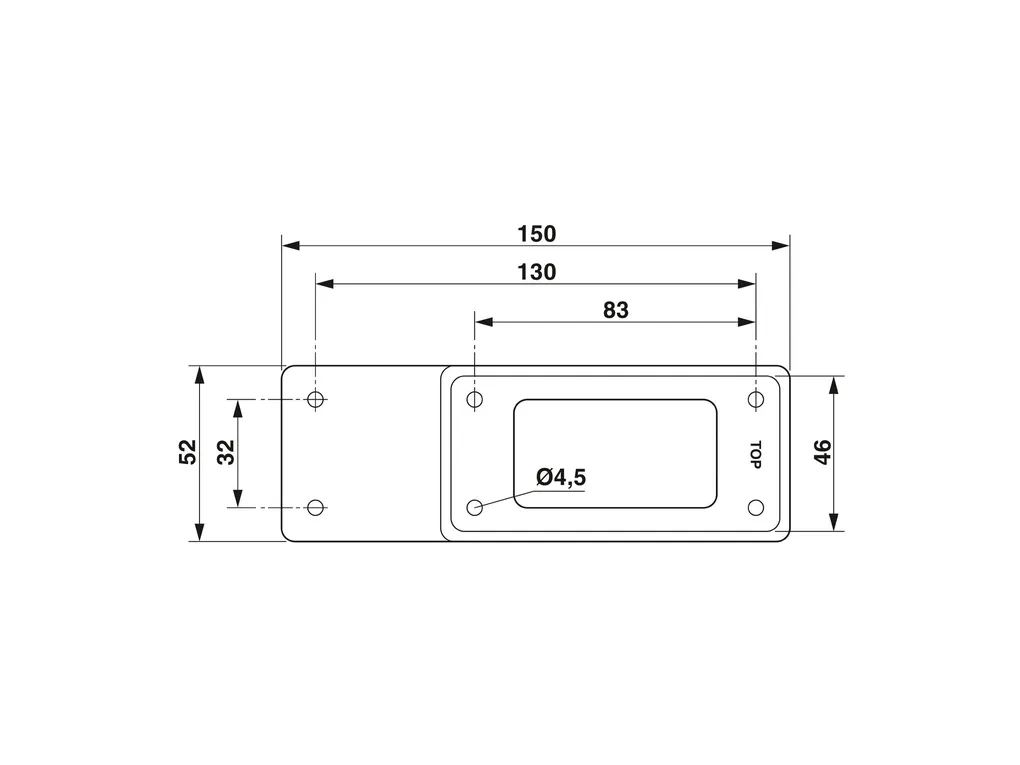

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3dcdb1ef38b0284cb17da6c286b988b4/-S204x204-FJPG Width: 52 mm Height: 7 mm Length: 150 mm Drill hole distance, horizontal: 130 mm Drill hole distance, vertical: 27 mm Hole diameter: 4.5 mm Installation dimensions Width of the assembly cutout: 36 mm Length of the assembly cutout: 113 mm |
| Material specifications | Color: gray Material: PA Flammability rating according to UL 94: HB Seal material: PTS |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 Ambient temperature (operation): -20°C ... 100°C |
| Mounting | Assembly instructions: Cannot be used in panel mounting bases having a pre-mounted cover |
