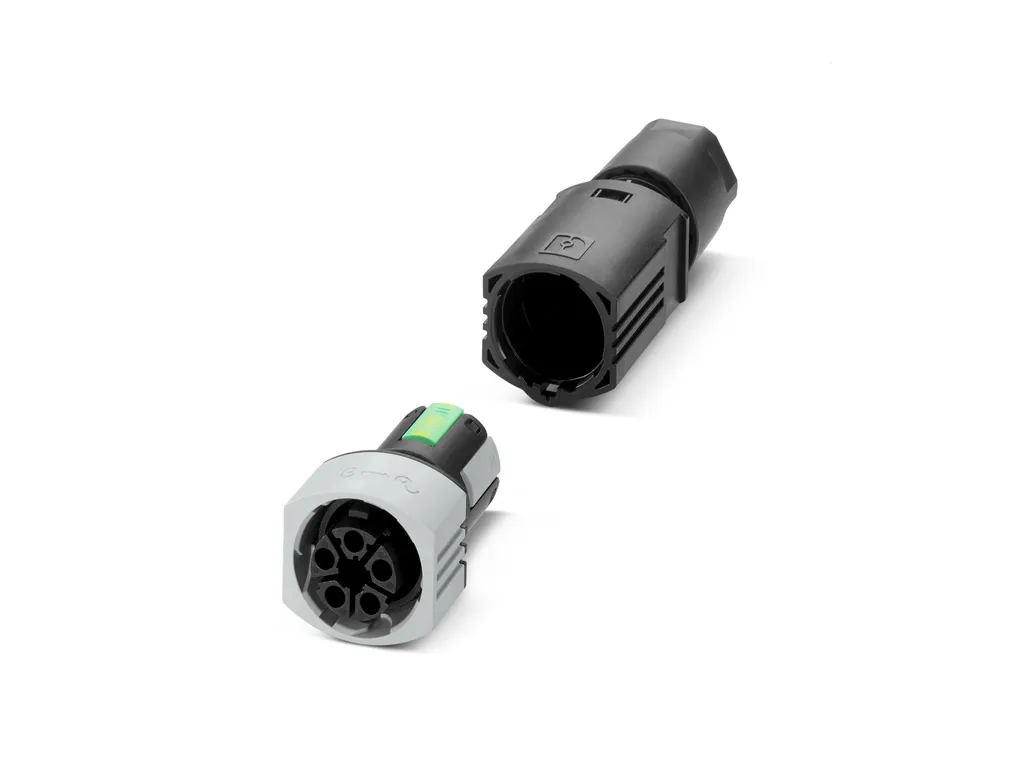

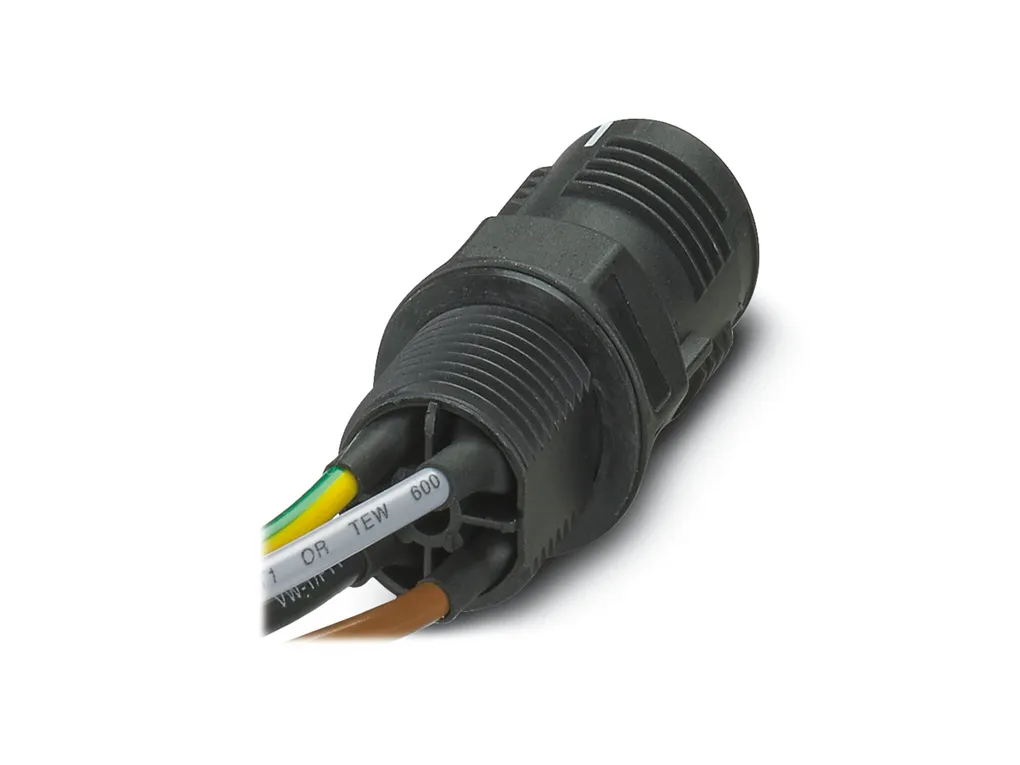

Q 1,5/3IDC/13-13KU-KU - Conductor connectors
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Mounting | Assembly instructions: If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. Connection method: QUICKON fast connection |
Product properties | Product type: Cable connector Number of positions: 3 Position marking: 1, 2, 3 Number of connections: 3 Number of connections per position: 1 Coding: no Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/71b040059af9d6459f858d793d4c89e1/-S204x204-FJPG Width: 24 mm Height: 24 mm Length: 62.2 mm Diameter: 24 mm External dimensions Outside diameter: 7 mm ... 9 mm |
Connection data | Connection technology Connection method: QUICKON fast connection Connection system, internal: IDC connection Connection technology: QUICKON connection Frequency of connections between conductors of the same cross section: max. 10 (if the conductor is connected more than once, seal and cap may need to be replaced.) Conductor connection Tightening torque: 2.5 Nm Tightening torque Union nut: 2.5 Nm Wrench size Union nut: 24 mm Wrench size Contact carrier: 24 mm |
Electrical properties | Rated surge voltage (II/2): 6 kV Rated surge voltage (III/2): 6 kV Rated surge voltage (III/3): 6 kV Contact resistance: ⤠5 mé rated voltage (II/2): 630 V rated voltage (III/2): 320 V Rated voltage (III/3): 250 V Nominal voltage UN: 500 VAC 500 VDC Nominal current IN: 17.5 A |
Material specifications | Material: PA Copper alloy tin-plated Flammability rating according to UL 94: V0 Material wire insulation: PVC / PE |
Cable/line | Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 class 1 to 6/min. 0.15 mm External cable diameter (): 7 mm ... 9 mm Wire diameter including insulation: >= 3 mm Position marking: 1, 2, 3 Material wire insulation: PVC / PE |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 80°C -25°C ... 50°C (when the conductor is connected. Specifications of the cable manufacturer must also be observed.) Temperature when conductor connected: -5°C ... 50°C Ambient temperature (storage/transport): -40°C ... 80°C |
ECLASS | ECLASS-11.0: 27440605 ECLASS-13.0: 27440605 ECLASS-12.0: 27440605 |
ETIM | ETIM 9.0: EC002560 |
UNSPSC | UNSPSC 21.0: 39121400 |
