| Product properties | Product type: NPT adapter |

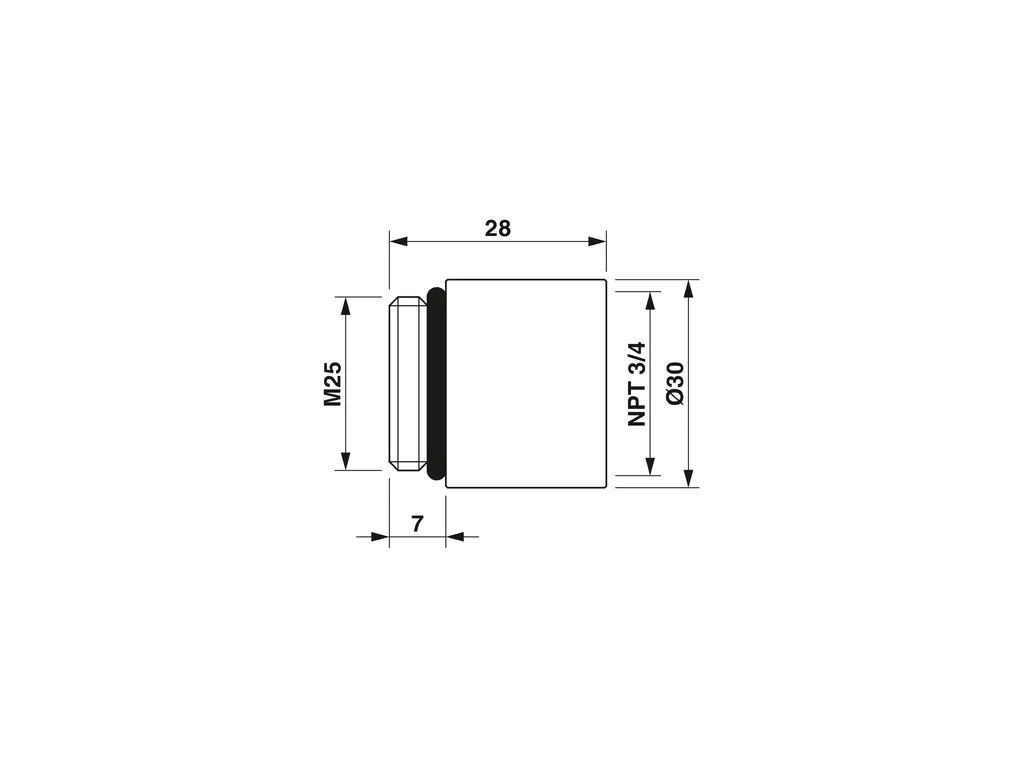

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5e177374bdd9b24990445c615cfb4ba2/-S204x204-FJPG Length: 28 mm Length of the connecting thread: 7 mm Length without connecting thread: 21 mm Diameter: 25 mm Connecting thread diameter: 25 mm Thread type connection side: M25 Thread type on seal side: 3/4 inch NPT |
| Material specifications | Color: Brass Material: Brass, nickel-plated Seal material O-ring: NBR |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 (Depends on the screw connection used) Ambient temperature (operation): -20°C ... 80°C |
