Notes | General: Refer to the data sheet for the range in the download area. |

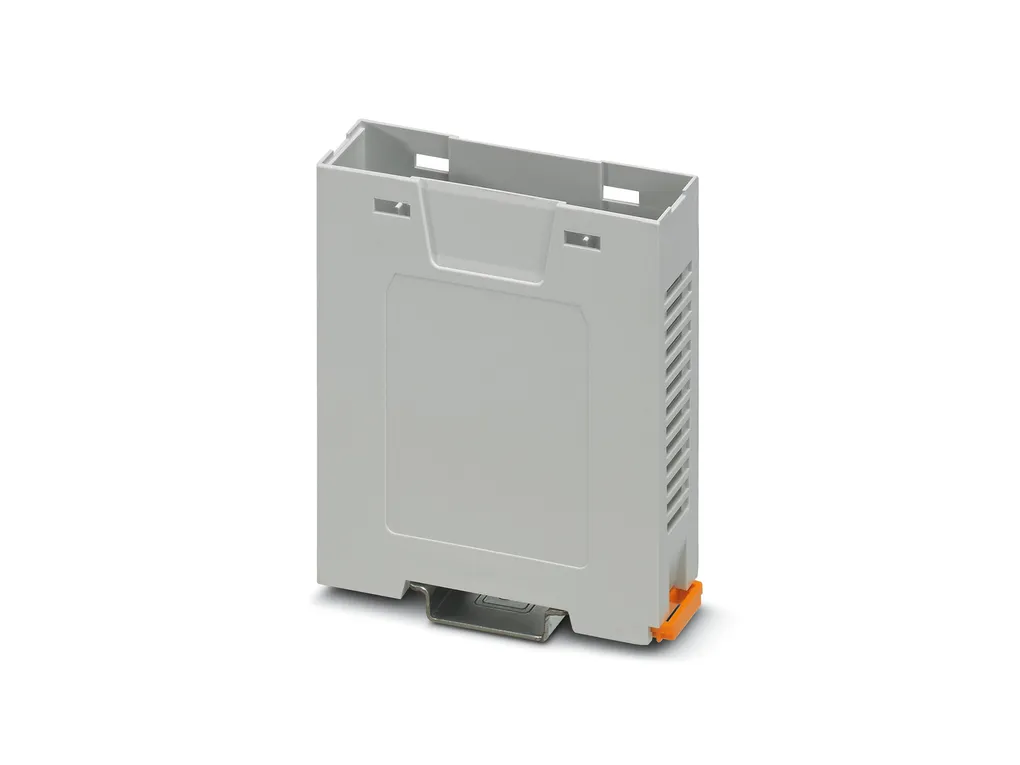

Product properties | Product type: Upper housing part Max. number of positions: 10 (pitch: 5 mm) Type: Set consisting of upper housing part and connection technology Housing type: DIN rail housing Ventilation openings present: no Housing series: ME PLC |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d57751add254744981ad8fe7e756ab74/-S204x204-FJPG Width: 39.7 mm Height: 128 mm Depth: 48.3 mm |
Material specifications | Color: light grey (7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 225 Surface characteristics: untreated Housing material: Polycarbonate |
Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 95 % |
Mounting | Mounting type: Latching with lower housing part Mounting position: Vertical (horizontal DIN rail) |
Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
