EH 35-B/ABS GY7035 - Mounting base housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Refer to the data sheet for the range in the download area. |
Product properties | Type: Lower housing parts with vents, housing cover necessary to complete the module Lower housing part with base latch, tall design Product type: Enclosure bottom part Product family: EH 35 Housing type: DIN rail housing Ventilation openings present: yes Housing series: EH |

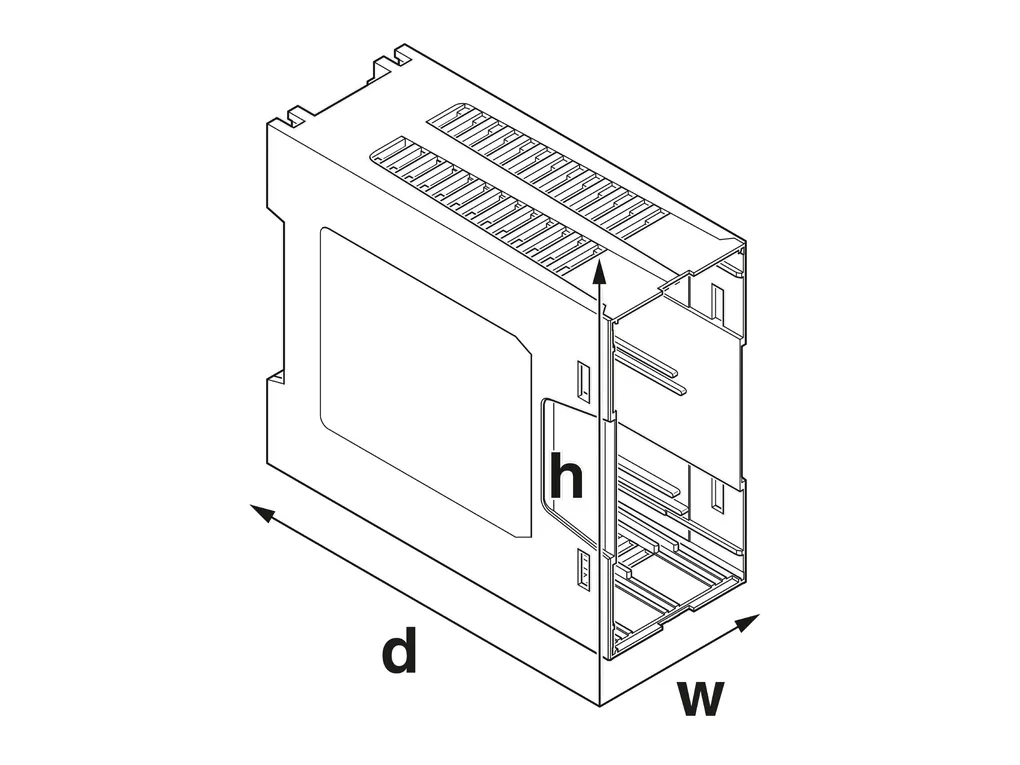

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1267f6285000224b8a14488ad9389ac9/-S204x204-FJPG Width: 35.1 mm Height: 75 mm Depth: 87.3 mm Depth from top edge of DIN rail to support point on upper part: 83 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
Material specifications | Color: light grey (7035) Flammability rating according to UL 94: HB Surface characteristics: untreated Housing material: ABS |
Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min Amplitude: 0.15mm (10Hz...58.1Hz) Acceleration: 2g (58.1Hz...150Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Glow-wire test Specification: IEC 60695-2-11:2014-02 Temperature: 850°C Time of exposure: 30 s Thermal stability / ball thrust test Specification: IEC 60695-10-2:2014-02 Temperature: 80°C Test duration: 1 h Force: 20 N Mechanical strength / tumbling barrel Specification: IEC 60998-1:2002-12 Height of fall: 50cm Frequency: 10 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Half-sine Acceleration: 15g Shock duration: 11ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Degree of protection (IP code) Specification: IEC 60529:1989-11 + AMD1:1999-11 + AMD2:2013-08 Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 80°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 80°C Relative humidity (storage/transport): 95 % |
PCB data | Number of PCB holders: 4 Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm |
Mounting | Mounting type: DIN rail mounting/wall mounting (with optional base latch) Mounting position: Vertical (horizontal DIN rail) |
Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190601 |
ETIM | ETIM 9.0: EC001031 |
UNSPSC | UNSPSC 21.0: 31261500 |
