| Notes | General: Refer to the data sheet for the range in the download area. |
| Product properties | Product type: Connection plate Product family: ICS20 Type: ICS filler, with antenna function cutout Housing type: DIN rail housing Ventilation openings present: no Housing series: ICS |

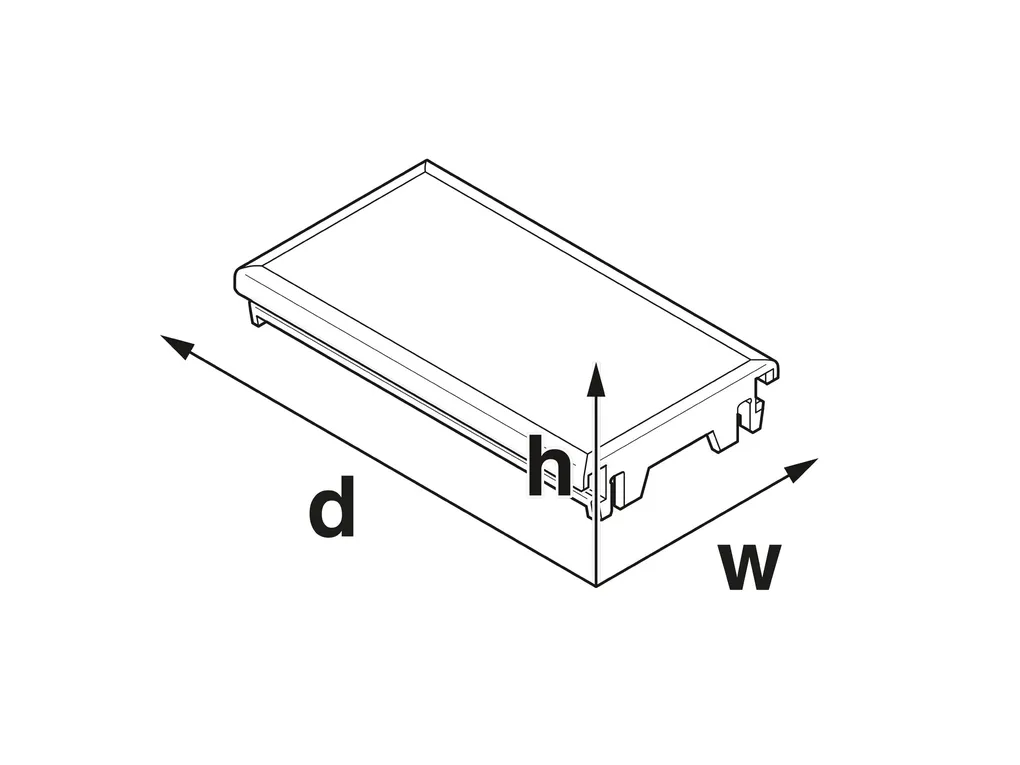

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/53f89e095d73064d9c151f568b955827/-S204x204-FJPG Width: 20 mm Height: 7.25 mm Depth: 22.4 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
| Material specifications | Color: light grey (7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Surface characteristics: untreated Housing material: Polyamide |
| Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min Amplitude: 0.15mm (10Hz...58.1Hz) Acceleration: 2g (58.1Hz...150Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Glow-wire test Specification: IEC 60695-2-11:2014-02 Temperature: 850°C Time of exposure: 30 s Thermal stability / ball thrust test Specification: IEC 60695-10-2:2014-02 Temperature: 125°C Test duration: 1 h Force: 20 N Mechanical strength / tumbling barrel Specification: IEC 60068-2-31:2008-05 Height of fall: 50cm Frequency: 50 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Half-sine Acceleration: 15g Shock duration: 11ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Test for substances that would hinder coating with paint or varnish Specification: VDMA24364:2018-05 Result: Test passed Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 % |
| PCB data | Number of PCB holders: 2 Type of PCB mount: Slot Thickness of the PCB: 1.4 mm ... 1.8 mm |
| Mounting | Mounting type: Slot |
| Packaging specifications | Outer packaging type: Resealable bag |
| ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190605 |
| ETIM | ETIM 9.0: EC001031 |
| UNSPSC | UNSPSC 21.0: 31261500 |
