Input data | Input voltage: 24 VDC (SELV) Input voltage range: 22.5 VDC ... 30 VDC Fixed backup threshold: < 22 VDC > 30 VDC Current consumption IN (UN, IOUT = IN, Icharge = 0): 13.5 A (max.) Current consumption Imax (UN, IOUT = IStat.Boost, Icharge = max): 13.5 A Current consumption INo-Load(UN, IOUT = 0, Icharge = 0): 0.1 A (No-load) Current consumption Icharge (UN, IOUT = 0, Icharge = max): 1 A (charging process) Power consumption Pmax (UN, IOUT = IStat.Boost, Icharge = max): 324 W Power consumption PN (UN, IOUT = IN, Icharge = 0): 245 W Power consumption Pcharge (UN, IOUT = 0, Icharge = max): 24 W Buffer time: 5 min. (1A) 30 s (10A) 30 s (10A) Charging time: approx. 22 min. Recharging time: approx. 12 min. Inrush current: ⤠7 A (ï£4ms) Switch-on time: 1 ms (buffer mode) Internal input fuse: no Dielectric strength: max. 35 VDC (Reverse polarity protection) Voltage drop, input/output: 0.5 VDC |
Output data | Efficiency: > 97 % (with charged energy storage device) Connection in parallel: no Connection in series: No Mains operation Output voltage: 24 VDC (depending on the input voltage) Output current IN: 10 A Static Boost (IStat.Boost): 12.5 A Output power POUT (UN, IOUT = IN): 240 W Output power POUT (UN, IOUT = Istat.Boost): 300 W Power dissipation No load (UN, IOut = 0, ICharge = 0): 2.5 W Power dissipation Nominal load (UN, IOut = IN, ICharge = 0): 6 W Short-circuit-proof: yes (with input fuse) Idling-proof: yes Battery operation Output voltage: 22 VDC (typical) Output current IN: 10 A (depending on output current) Static Boost (IStat.Boost): 12.5 A Output power POUT (UN, IOUT = IN): 240 W Output power POUT (UN, IOUT = Istat.Boost): 300 W Short-circuit-proof: yes Idling-proof: yes |
Energy storage | Input Nominal capacity: 0.08 Ah General Capacity: 8 kJ IQ-Technology: no Storage medium: Double-layer capacitor Buffer time: 5 min. (1A) 30 s (10A) 30 s (10A) |
Connection data | Input Position: 1.x Connection technology Position marking: 1.1(+), 1.2(-) Conductor connection Connection method: Screw connection rigid: 0.2 mm² ... 2.5 mm² flexible: 0.2 mm² ... 2.5 mm² flexible with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² flexible with ferrule with plastic sleeve: 0.25 mm² ... 2.5 mm² rigid (AWG): 30 ... 12 Stripping length: 6.5 mm Tightening torque: 0.5 Nm ... 0.6 Nm Drive form screw head: Slotted L 2-conductor connection rigid: 0.2 mm² ... 0.75 mm² flexible: 0.2 mm² ... 0.75 mm² flexible with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1.5 mm² Output Position: 2.x Connection technologyâ Position marking: 2.1(+), 2.2(-) Conductor connectionâ Connection method: Screw connection rigid: 0.2 mm² ... 2.5 mm² flexible: 0.2 mm² ... 2.5 mm² flexible with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² flexible with ferrule with plastic sleeve: 0.25 mm² ... 2.5 mm² rigid (AWG): 30 ... 12 Stripping length: 6.5 mm Tightening torque: 0.5 Nm ... 0.6 Nm Drive form screw head: Slotted L 2-conductor connectionâ rigid: 0.2 mm² ... 0.75 mm² flexible: 0.2 mm² ... 0.75 mm² flexible with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1.5 mm² Signal Position: 3.x Conductor connectionââ Connection method: Push-in connection rigid: 0.2 mm² ... 1.5 mm² flexible: 0.2 mm² ... 1.5 mm² flexible with ferrule without plastic sleeve: 0.2 mm² ... 1.5 mm² flexible with ferrule with plastic sleeve: 0.2 mm² ... 0.75 mm² rigid (AWG): 24 ... 18 Stripping length: 8 mm |
Interfaces | Interface: USB (Modbus/RTU) Number of interfaces: 1 Connection method: MINI-USBTypeB Position: 5.x Locking: Screw Transmission physics: USB 2.0 Topology: Point-to-point Transmission speed: 9600 baud Transmission length: max. 5 m Access time: ⤠2 s Chipset: Silicon Labs CP2104-F03-GM Electrical isolation: Yes, UL approved |
Signaling | Signal state Remote Connection labeling: 3.5 Channel: DI (digital input) State (configurable): Remote State condition: Remote Low signal: <3kéto SGnd High signal: open (>470kï between Remote and SGnd) Signal - state assignment: low - active Reference potential: 3.6 (SGnd, identical to 1.2, 2.2) Signal state Alarm Connection labeling: 3.3 Channel: DO (digital output) Switching output: Transistor State (configurable): Group alarm State condition (configurable): Alarm Output voltage: 24 V (UN - 1V (typical)) Output can be loaded: max. 20 mA State - signal assignment: active - low Reference potential: 3.6 (SGnd, identical to 1.2, 2.2) LED status indicator: red (Alarm) Signal state UIN OK Connection labeling: 3.1, 3.2 Channel: DO (digital output) Switching output: Electronic relays (OptoMOS) State (configurable): UIn OK State condition (configurable): UIn>22,5VDC, UIn<30VDC Output voltage: max. 30 V Output can be loaded: 300 mA State - signal assignment: active - high LED status indicator: green (UIn OK) Signal state Ready Connection labeling: 3.4 Channel: DO (digital output) Switching output: Transistor State (configurable): Ready State condition (configurable): State of charge = 100% or buffer mode Output voltage: 24 V (UN - 1V (typical)) Output can be loaded: max. 20 mA State - signal assignment: active - high Reference potential: 3.6 (SGnd, identical to 1.2, 2.2) LED status indicator: Green (state of charge - SOC) Signal ground SGnd Connection labeling: 3.6 Switching voltage: 0 V Current carrying capacity: max. 60 mA Function: Signal ground Reference potential: 3.3Alarm, 3.4Ready, 3.5Remote |
Electrical properties | Insulation voltage input, output / housing: 500 V |

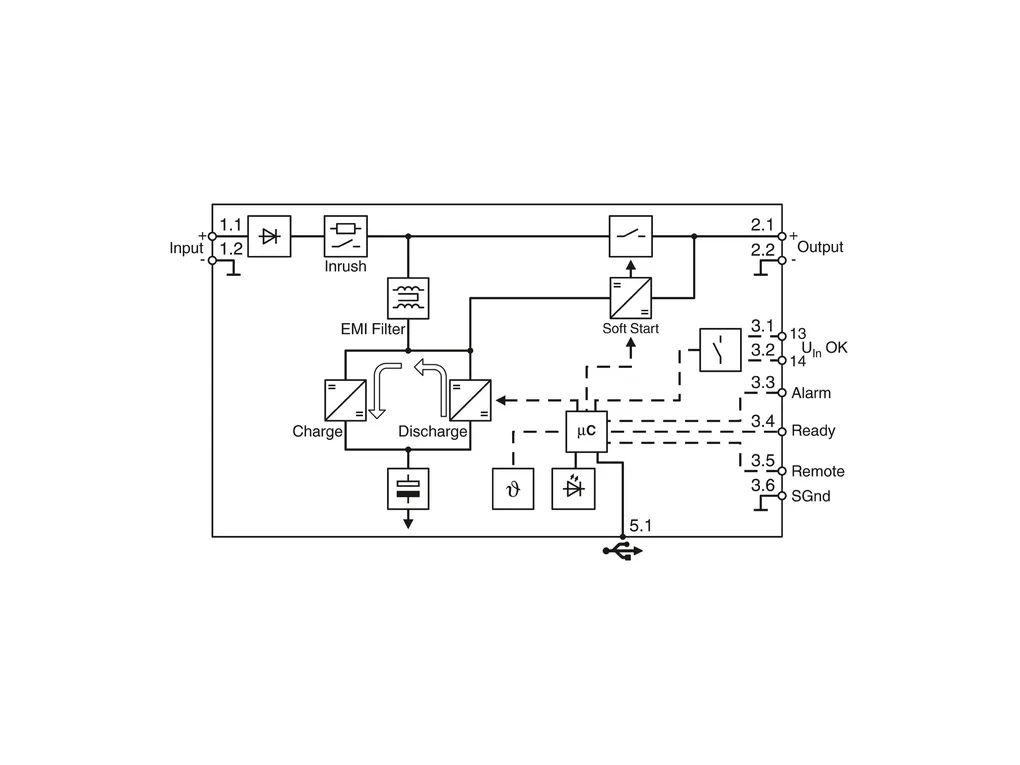

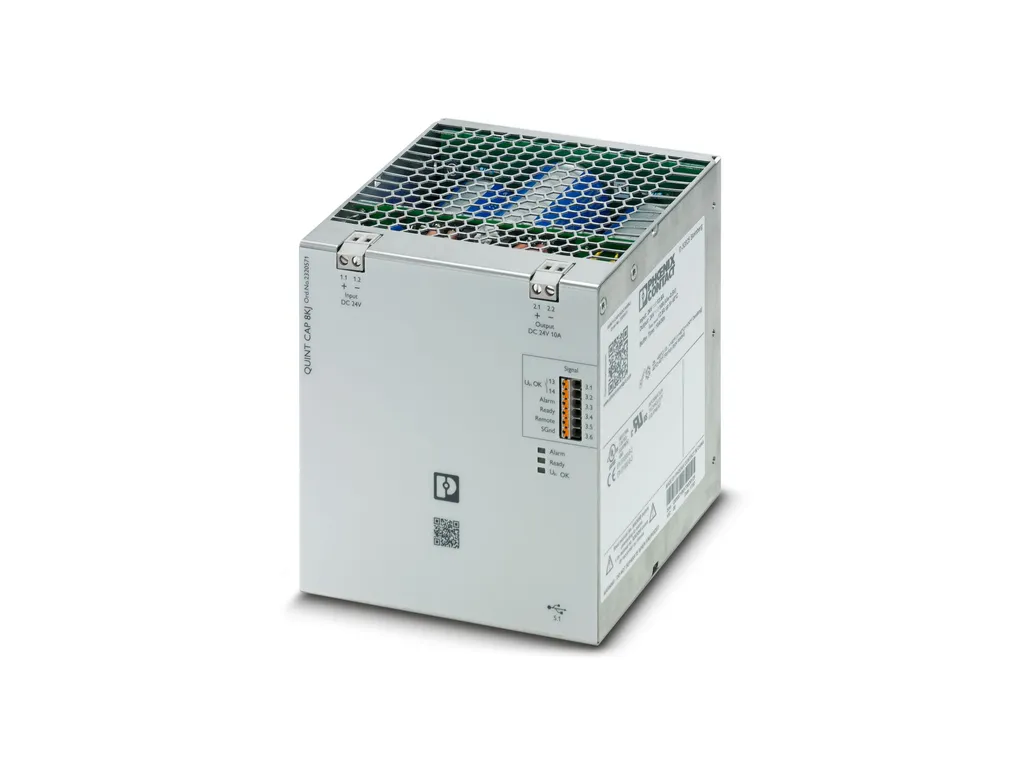

Product properties | Product type: DC UPS with integrated capacitor Product family: QUINT capacity module MTBF (IEC 61709, SN 29500): 2102818 h (25°C) 1387185 h (40°C) 697626 h (60°C) Insulation characteristics Protection class: III (SELV) Degree of pollution: 2 Life expectancy (electrolytic capacitors) Time: 83352 h |
Dimensions | Item dimensions Width: 118 mm Height: 130 mm Depth: 125 mm Installation dimensions Installation distance right/left: 0 mm / 0 mm Installation distance top/bottom: 50 mm / 50 mm |
Mounting | Mounting type: DIN rail mounting Assembly instructions: alignable: horizontally 0mm, vertically 50mm Mounting position: horizontal DIN rail NS 35, EN 60715 |
Material specifications | Flammability rating according to UL94 (housing / terminal blocks): V0 Housing material: Metal |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 60°C (>40°C Derating: 1%/K) Ambient temperature (storage/transport): -40°C ... 60°C Ambient temperature (start-up type tested): -40°C Maximum altitude: ⤠4000 m Climatic class: 3K3 (in acc. with EN 60721) Max. permissible relative humidity (operation): ⤠95 % Shock: 30g, 18ms per spatial direction (in accordance with IEC 60068-2-27) Vibration (operation): 0,7g |
Standards and regulations | Overvoltage category UL60950-1: II Protective extra-low voltage Standard designation: Protective extra-low voltage Standards/specifications: UL61010-2-201 |
Approvals | UL Identification: UL/C-UL Listed UL 508 ULâ Identification: UL/C-UL Recognized UL60950-1 ULââ Identification: UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) ULâââ Identification: CAN/CSA-C22.2 No.107.1-01 CB scheme Identification: UL60950-1 |
EMC data | Low Voltage Directive: Conformance with Low Voltage Directive 2014/35/EC EMC requirements for noise emission: EN61000-6-3 EN61000-6-4 EMC requirements for noise immunity: EN61000-6-1 EN61000-6-2 Electromagnetic compatibility: Conformance with EMC Directive 2014/30/EU Noise emission: EN55016 EN61000-6-3 Electrostatic discharge Standards/regulations: EN61000-4-2 Electrostatic dischargeâ Contact discharge: 6 kV (Test Level 3) Discharge in air: 8 kV (Test Level 3) Comments: Criterion B Electromagnetic HF field Standards/regulations: EN61000-4-3 Electromagnetic HF fieldâ Frequency range: 80 MHz ... 6 GHz Test field strength: 10 V/m Comments: Criterion A Fast transients (burst) Standards/regulations: EN61000-4-4 Fast transients (burst)â Input: 2 kV (Test Level 3 - asymmetrical) Output: 2 kV (Test Level 3 - asymmetrical) Signal: 2 kV (Test Level 3 - asymmetrical) Comments: Criterion B Surge voltage load (surge) Standards/regulations: EN61000-4-5 Signal: 1 kV (Test Level 2 - asymmetrical) Comments: Criterion B Input/Output: 1 kV (Test Level 2 - symmetrical) 2 kV (Test Level 3 - asymmetrical) Conducted interference Standards/regulations: EN61000-4-6 Conducted interferenceâ Frequency range: 0.15 MHz ... 80 MHz Comments: Criterion A Voltage: 10 V Criteria Criterion A: Normal operating behavior within the specified limits. Criterion B: Temporary impairment to operational behavior that is corrected by the device itself. |
ECLASS | ECLASS-11.0: 27040705 ECLASS-12.0: 27040705 ECLASS-13.0: 27040705 |
ETIM | ETIM 9.0: EC000382 |
UNSPSC | UNSPSC 21.0: 26111700 |
