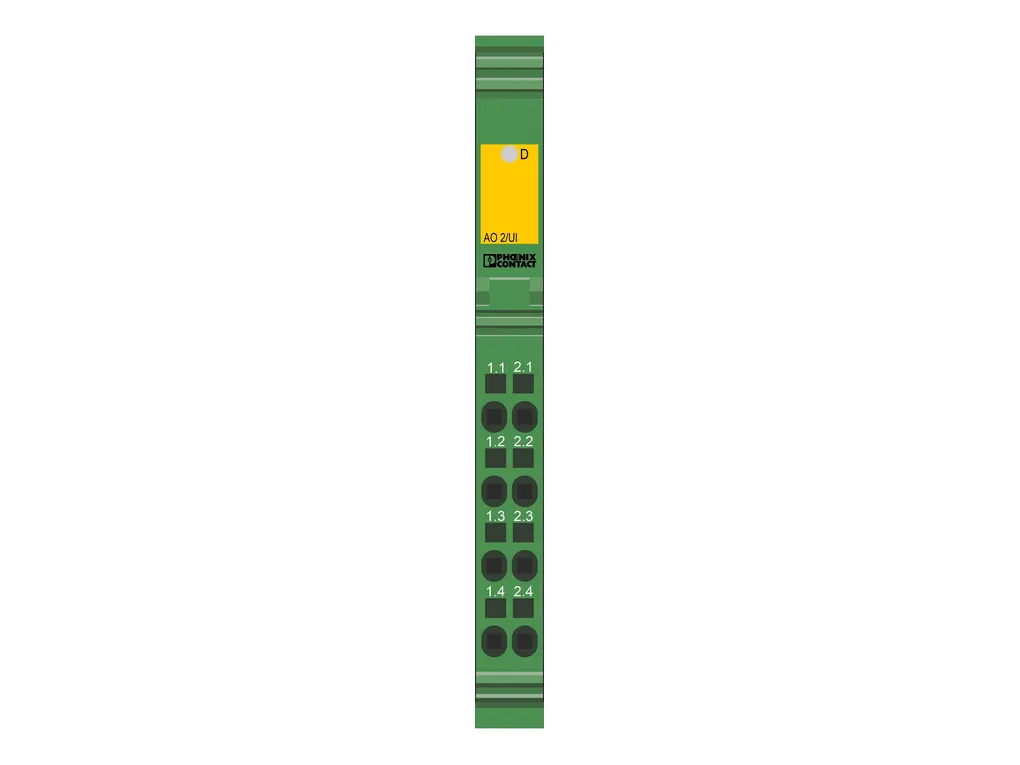

IB IL AO 2/UI-PAC - Analog module

Inline, Analog output terminal, Analog outputs: 2, 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA, connection technology: 2-conductor, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connector and labeling field

Product Code: 2700775

Partner cod.: 2700775

PHOENIX CONTACT

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/61847ea072ac2f4a94bf2299909bd975/-S204x204-FJPG Width: 12.2 mm Height: 119.8 mm Depth: 71.5 mm Note on dimensions: Housing dimensions
Interfaces	Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 500 kbps Transmission physics: Copper
System properties	Module ID code (dec.): 91 ID code (hex): 5B Length code (hex): 04 Length code (dec): 04 Process data channel: 64 bit Input address area: 8 Byte Output address area: 8 Byte Register length: 64 bit Required parameter data: 10 Byte Required configuration data: 5 Byte
Output data	Analog Output name: Analog outputs Connection technology: 2-conductor Note regarding the connection technology: shielded Number of outputs: 2 D/A conversion time: typ. 10 µs D/A converter resolution: 12 bit Protective circuit: Short-circuit and overload protection; Electronic Transient protection; Suppressor diode Data formats: IB IL, S7-compatible Representation of output values: 12 bits (11 bits + sign bit) Process data update: bus-synchronous Current output signal: 0 mA ... 20 mA 4 mA ... 20 mA -20 mA ... 20 mA Load/output load current output: Ã¢¤ 450 Ã© Voltage output signal: 0 V ... 10 V -10 V ... 10 V Load/output load voltage output: > 1 kÃ© Permissible cable length: max. 250 m (The specifications refer to nominal operation after complying with installation instructions. The specifications refer to the following reference cable type: Shielded power station cable: LiYCY; 2 x 2 x 0,5mm²; VDE0812)
Product properties	Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connector and labeling field Diagnostics messages: Failure of the internal I/O supply I/O error message sent to the bus coupler I/O supply failure Message in the diagnostic code (in the IBIL format) Short circuit/overload of the outputs Message in the diagnostic code (in the IBIL format) Configuration invalid Message in the diagnostic code (in the IBIL format)
Electrical properties	Maximum power dissipation for nominal condition: max. 1.97 W Potentials Power consumption: typ. 1.32 W (Nominal voltage load (U_OUT1/2=10V, R_L=1kÃ©)) typ. 1.97 W (Nominal current load (I_OUT1/2=20mA, R_L=0Ã©)) Potentials: Communications power (U Supply voltage: 7.5 VDC (via voltage jumper) Current draw: max. 65 mA typ. 55 mA Potentials: Supply of analog modules (U Supply voltage: 24 VDC (via voltage jumper) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 75 mA (Nominal current load (I_OUT1/2=20mA, R_L=0Ã©)) max. 30 mA (No-load) typ. 38 mA (Nominal voltage load (U_OUT1/2=10V, R_L=1kÃ©)) max. 45 mA (Nominal voltage load (U_OUT1/2=10V, R_L=1kÃ©)) typ. 65 mA (Nominal current load (I_OUT1/2=20mA, R_L=0Ã©)) typ. 24 mA (No-load) Electrical isolation/isolation of the voltage ranges Test voltage: 7.5 V supply (bus logics)/24 V analog supply (analog I/O): 500 VAC, 50 Hz, 1 min. Test voltage: 7.5V supply (bus logic)/functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: 24V analog supply (analog I/O)/functional ground: 500 VAC, 50 Hz, 1 min.
Connection data	Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (according to DINEN61131-2) Permissible humidity (storage/transport): 10 % ... 95 % (according to DINEN61131-2)
Standards and regulations	Protection class: III (IEC 61140, EN61140, VDE0140-1)
Mounting	Mounting type: DIN rail mounting
