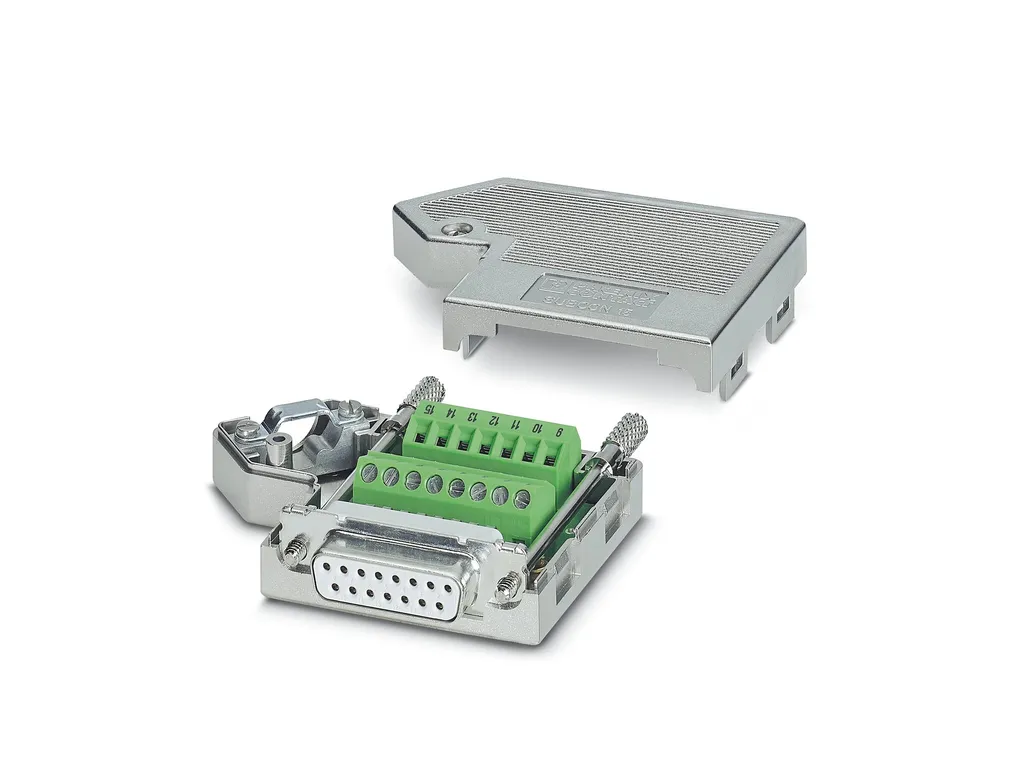

| Notes | Utilization restriction CCCex note: Use in potentially explosive areas is not permitted in China. |
| Product properties | Product type: Data plug MTTF: 6706 Years (SN29500 standard, temperature25°C, operating cycle21%) 1817 Years (SN29500 standard, temperature40°C, operating cycle34.25%) 155 Years (SN29500 standard, temperature40°C, operating cycle100%) Pin assignment: All connections are 1:1 on the screw terminal block |
| Electrical properties | Nominal voltage UN: 50 VDC Nominal current IN: 100 mA Transmission medium: Copper |
| Connection data | D-SUB connection Connection method: D-SUB socket PCB connection Connection method: Screw connection Stripping length: 5 mm Conductor cross section, rigid min.: 0.14 mm² Conductor cross section, rigid max.: 1.5 mm² Conductor cross section flexible min.: 0.14 mm² Conductor cross section flexible max.: 1 mm² Single-wire/terminal point, rigid AWG min.: 26 Single-wire/terminal point, rigid AWG max.: 16 Min. AWG conductor cross section, flexible: 26 Max. AWG conductor cross section, flexible: 18 |
| Interfaces | Signal: Modbus |

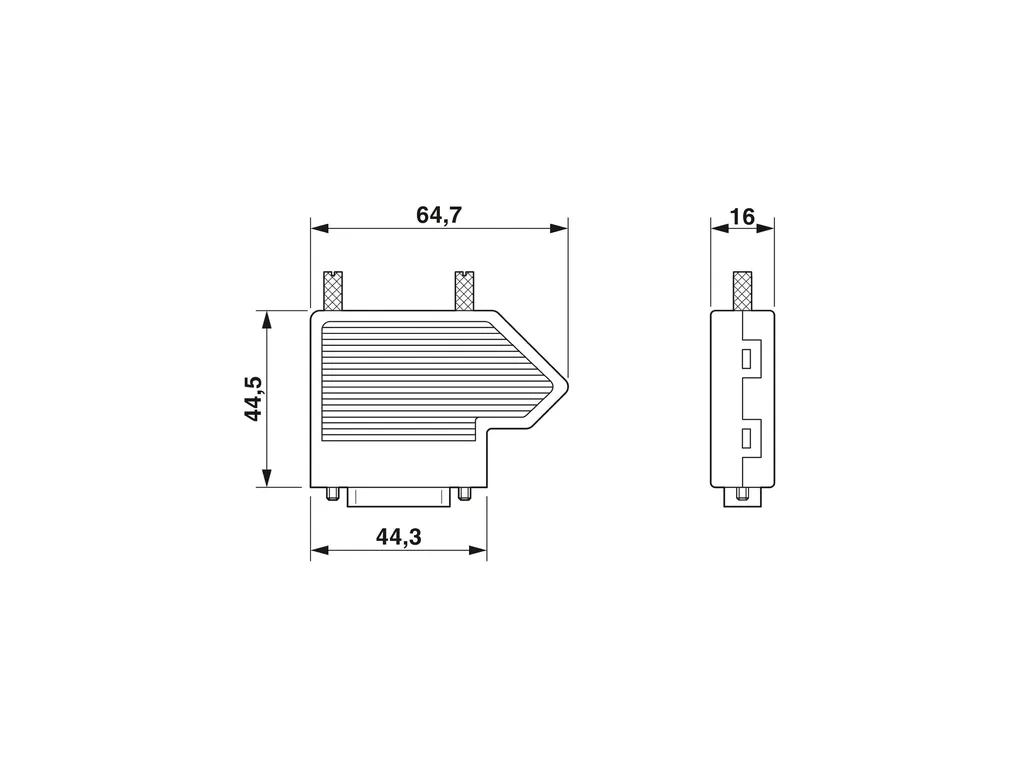

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b5611dc3eb479c48ac578abe02da42c1/-S204x204-FJPG Width: 16 mm Height: 55 mm Length: 65 mm |
| Material specifications | Material: ABS, metal-plated |
| Cable/line | External cable diameter (): 4 mm ... 10 mm (Incoming bus line) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 200 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 75°C Ambient temperature (storage/transport): -25°C ... 80°C Altitude: ⤠5000 m (For restrictions, see the manufacturer's declaration for altitude operation) Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing) |
| Approvals | ATEX Identification: ï II 3 G Ex nA IIC T4 Gc X Note: Please follow the special installation instructions in the documentation! Corrosive gas test Identification: ISA-S71.04-1985 G3 Harsh Group A |
| Standards and regulations | Free from substances that could impair the application of coating: in accordance with VW-AUDI-Seat central standard P-VW 3.10.7 57 65 0 |
| ECLASS | ECLASS-11.0: 27440302 ECLASS-13.0: 27440302 ECLASS-12.0: 27440302 |
| ETIM | ETIM 9.0: EC001132 |
| UNSPSC | UNSPSC 21.0: 39121400 |
