PHOENIX CONTACT 2790871

Not available

UEG 30/1 - Electronic housing

Electronic housing, for PCB insertion, fully equipped with 4 screw or tab connections per side

Product Code: 2790871

Partner cod.: 2790871

PHOENIX CONTACT

Tecnichal data

Technical Specs

Download

Tecnichal data

Product properties	Type: Connection system integrated, housing closed Product type: Complete housing Product family: UEG Number of positions: 8 Pitch: 5 mm Number of rows: 2 Housing type: Component housing Housing series: UEG Pin layout: Linear pinning
Electrical properties	Nominal voltage U_N: 500 V (Voltage and current values are affected by the configuration of the printed circuit board.) Nominal current I_N: 10 A

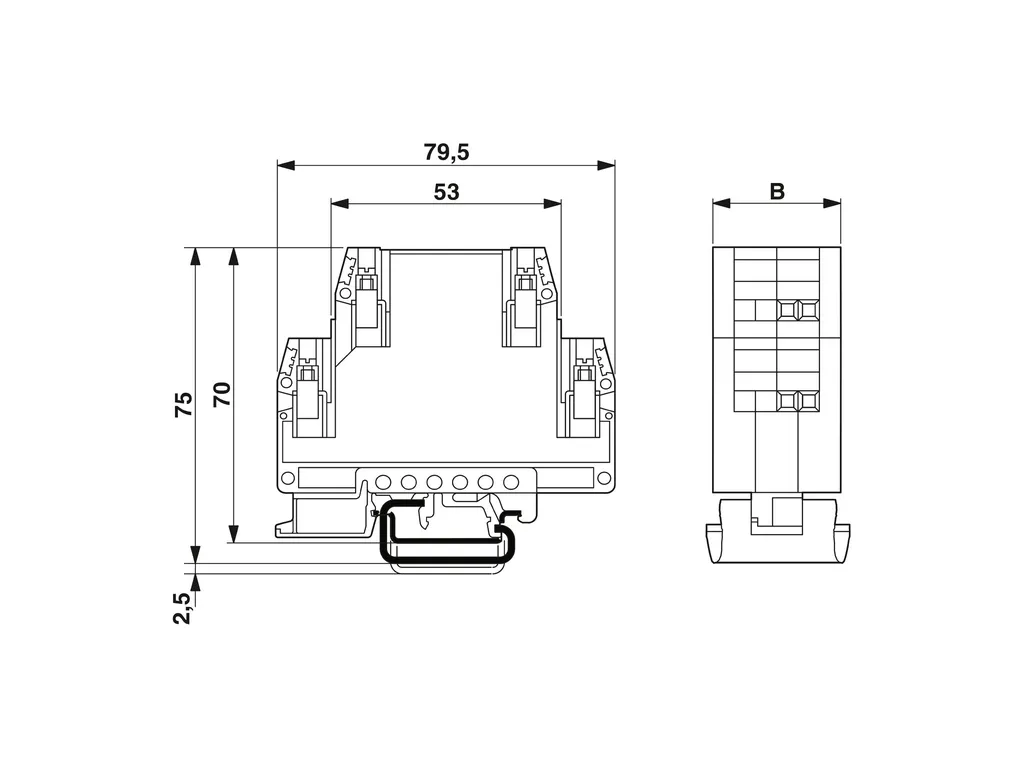

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f534ddacdc28a040b38dac838dc118c5/-S204x204-FJPG Width: 30 mm Installed height: 70 mm Height NS 35/7,5: 70 mm Depth: 79.5 mm Length: 79.5 mm Pitch: 5 mm
Material specifications	Color: green Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polyamide
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 105°C
Mounting	Mounting type: Soldering Pin layout: Linear pinning Connection method: Screw connection

Technical Specs

ECLASS	ECLASS-11.0: 27182702 ECLASS-13.0: 27190101
ETIM	ETIM 8.0: EC001031
UNSPSC	UNSPSC 21.0: 31261500
