MSTBO 2,5/ 3-G1R BUGY - PCB header

PCB headers, nominal cross section: 2.5 mm², color: blue grey, nominal current: 12 A, rated voltage (III/2): 320 V, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: MSTBO 2,5/..-G1R, pitch: 5 mm, connection method: pluggable, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, locking: without, type of packaging: packed in cardboard, Product with pin output on right side

Product Code: 2853158

Partner cod.: 2853158

PHOENIX CONTACT

Product properties	Product line: COMBICON Connectors M Product type: PCB headers Product family: MSTBO 2,5/..-G1R Number of positions: 3 Pitch: 5 mm Number of connections: 3 Number of rows: 1 Mounting flange: no Number of potentials: 3 Pin layout: Linear pinning Solder pins per potential: 1
Electrical properties	Nominal current I_N: 12 A Nominal voltage U_N: 250 V Degree of pollution: 3 Contact resistance: 1.6 mÃ© Rated voltage (III/3): 250 V Rated surge voltage (III/3): 4 kV Rated voltage (III/2): 320 V Rated surge voltage (III/2): 4 kV Rated voltage (II/2): 630 V Rated surge voltage (II/2): 4 kV
Mounting	Mounting type: Wave soldering Pin layout: Linear pinning
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: tin-plated Material data - housing Color (Housing): blue grey (7031) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to EN60695-2-12: 850 Glow wire ignition temperature GWIT according to EN60695-2-13: 775 Temperature for the ball pressure test according to EN60695-10-2: 125°C
Dimensions	Pitch: 5 mm Width [w]: 14.95 mm Height [h]: 16.5 mm Length [l]: 14.65 mm Solder pin length [P]: 3.5 mm Pin dimensions: 1 x 1 mm PCB design Hole diameter: 1.4 mm
Mechanical tests	Visual inspection Specification: IEC 60512-1-1:2002-02 Result: Test passed Dimension check Specification: IEC 60512-1-2:2002-02 Result: Test passed Resistance of inscriptions Specification: IEC 60068-2-70:1995-12 Result: Test passed Polarization and coding Specification: IEC 60512-13-5:2006-02 Result: Test passed Contact holder in insert Specification: IEC 60512-15-1:2008-05 Contact holder in insert Requirements >20 N: Test passed Insertion and withdrawal forces Result: Test passed No. of cycles: 25 Insertion strength per pos. approx.: 8 N Withdraw strength per pos. approx.: 6 N
Electrical tests	Thermal test \| Test group C Specification: IEC 60512-5-1:2002-02 Tested number of positions: 4 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >5MÃ© Air clearances and creepage distances \| Specification: IEC 60664-1:2007-04 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 250 V Rated surge voltage (III/3): 4 kV minimum clearance value - non-homogenous field (III/3): 3 mm minimum creepage distance (III/3): 3.2 mm Rated insulation voltage (III/2): 320 V Rated surge voltage (III/2): 4 kV minimum clearance value - non-homogenous field (III/2): 3 mm minimum creepage distance (III/2): 1.6 mm Rated insulation voltage (II/2): 630 V Rated surge voltage (II/2): 4 kV minimum clearance value - non-homogenous field (II/2): 3 mm minimum creepage distance (II/2): 3.2 mm

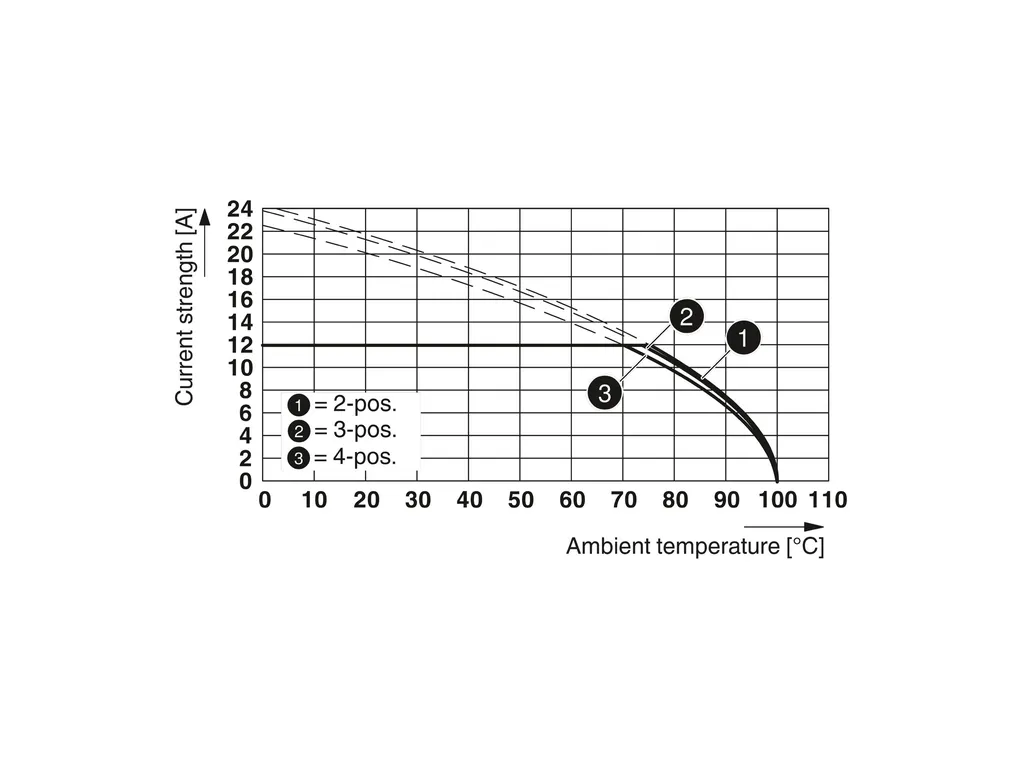

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min 5g (60.1Hz...150Hz) Amplitude: 0.35mm (10Hz...60.1Hz) Test duration per axis: 2.5 h Durability test Specification: IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level: 4.8 kV Contact resistance R₁: 1.6 mÃ© Contact resistance R₂: 1.6 mÃ© Insertion/withdrawal cycles: 25 Insulation resistance, neighboring positions: >5MÃ© Climatic test Specification: ISO6988:1985-02 Corrosive stress: 0.2 dm³SO₂on 300 dm³/40°C/1 cycle Thermal stress: 100°C/168h Power-frequency withstand voltage: 2.21 kV Ambient conditions Ambient temperature (operation): -40°C ... 105°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 55°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton
