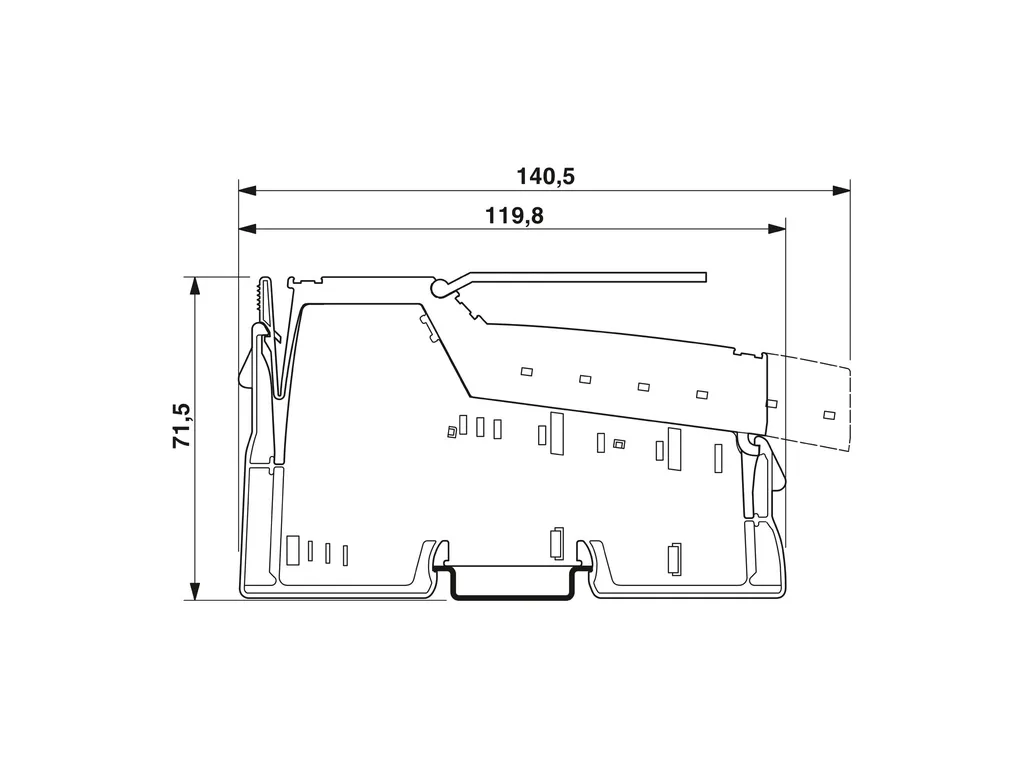

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/61847ea072ac2f4a94bf2299909bd975/-S204x204-FJPG Width: 12.2 mm Height: 119.8 mm Depth: 71.5 mm Note on dimensions: Housing dimensions |
| Interfaces | Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 500 kbps |
| System properties | Module ID code (dec.): 189 ID code (hex): BD Length code (hex): C2 Length code (dec): 194 Process data channel: 2 bit Input address area: 0 Byte Output address area: 2 bit Register length: 2 bit Required parameter data: 3 Byte Required configuration data: 4 Byte |
| Output data | Digital Output name: Digital outputs Connection method: Spring-cage connection Connection technology: 4-conductor Number of outputs: 2 (NPN) Protective circuit: Overload protection, short-circuit protection of outputs Output voltage: 24 VDC Maximum output current per channel: 500 mA Maximum output current per module: 1 A Nominal output voltage: 24 VDC Nominal load, inductive: 12 VA Nominal load, lamp: 12 W Nominal load, ohmic: 12 W Behavior with overload: Auto restart Behavior with inductive overload: Output can be destroyed Behavior at voltage switch-off: The output follows the power supply without delay |
| Product properties | Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connector and labeling field No. of channels: 2 Diagnostics messages: Short-circuit or overload of the digital outputs Error message in the diagnostic code (bus) and display (2 Hz) via the LED (D) on the module |
| Electrical properties | No. of channels: 2 Potentials: Communications power (U Supply voltage: 7.5 VDC (via voltage jumper) Current draw: max. 32 mA Potentials: Segment circuit supply (U Supply voltage: 24 VDC (via voltage jumper) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 1 A Electrical isolation/isolation of the voltage ranges Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics): 500 VAC, 50 Hz, 1 min. Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics): 500 VAC, 50 Hz, 1 min. Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O): 500 VAC, 50 Hz, 1 min. Test voltage: 24V supply (I/O) / functional ground: 500 VAC, 50 Hz, 1 min. |
| Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (according to DINEN61131-2) Permissible humidity (storage/transport): 10 % ... 95 % (according to DINEN61131-2) |
| Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
| Mounting | Mounting type: DIN rail mounting |
| ECLASS | ECLASS-11.0: 27242604 ECLASS-12.0: 27242604 ECLASS-13.0: 27242604 |
| ETIM | ETIM 9.0: EC001599 |
| UNSPSC | UNSPSC 21.0: 32151600 |
