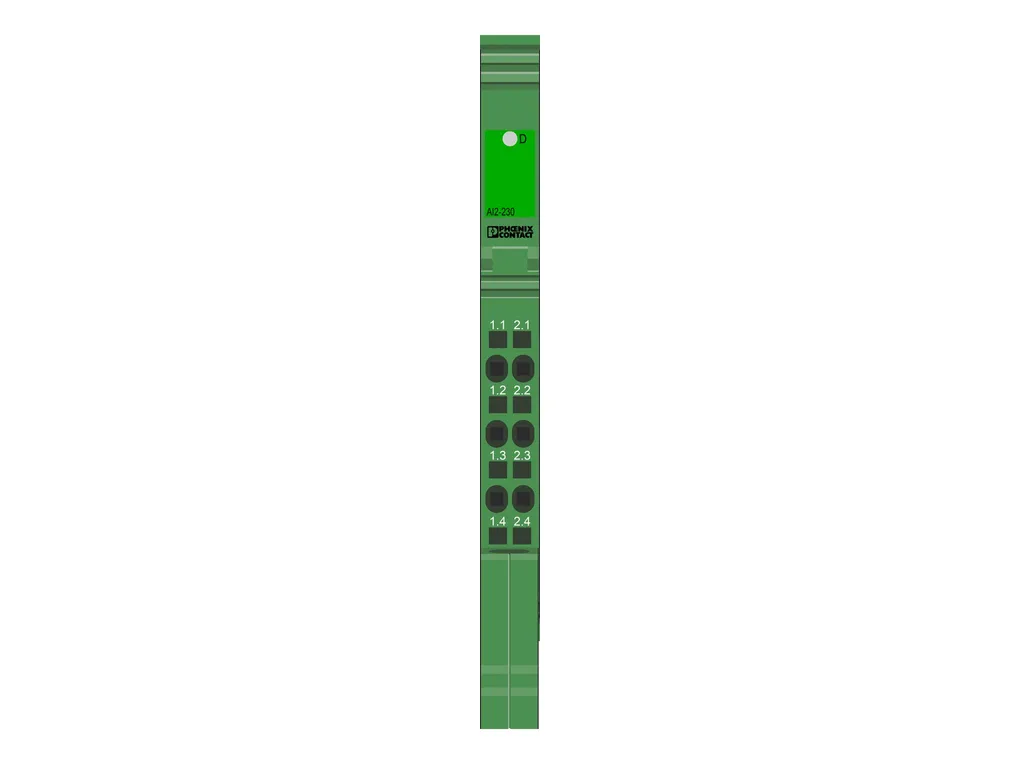

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8f49d2b498684640a945b59e148b2698/-S204x204-FJPG Width: 12.2 mm Height: 136.8 mm Depth: 71.5 mm Note on dimensions: Housing dimensions |
Interfaces | Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 500 kbps |
System properties | Module ID code (dec.): 127 ID code (hex): 7F Length code (hex): 02 Length code (dec): 02 Process data channel: 32 bit Input address area: 4 Byte Output address area: 4 Byte Register length: 32 bit Required parameter data: 6 Byte Required configuration data: 4 Byte |
Input data | Analog Input name: Analog inputs Description of the input: Single-ended inputs, voltage or current Number of inputs: 2 A/D conversion time: typ. 120 µs (per channel) Connection method: Inline shield connector Connection technology: 2-conductor Note regarding the connection technology: shielded Current input signal: 0 mA ... 20 mA 4 mA ... 20 mA -20 mA ... 20 mA Input resistance current input: 50 é (Shunt) Voltage input signal: 0 V ... 10 V -10 V ... 10 V Input resistance of voltage input: > 220 ké Data formats: IB IL, IB ST, IB RT, standardized representation Limit frequency (3 dB): 230 Hz Common mode voltage range signal - ground: 40 V (Between current input and functional ground) 40 V (between voltage input and functional ground) Measuring principle: Successive approximation Measured value resolution: 16 bits (15 bits + sign bit) Measured value representation: 16 bit two's complement Protective circuit: Surge protection; Suppressor diodes in the analog inputs |
Product properties | Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connector and labeling field Operating mode: Process data operation with 2 words Diagnostics messages: Failure of the internal I/O supply yes I/O error Error message in the process data User error Error message in the process data Insulation characteristics Overvoltage category: II (IEC 60664-1, EN60664-1) Pollution degree: 2 (IEC 60664-1, EN60664-1) |
Electrical properties | Potentials Power consumption: typ. 662 mW max. 882 mW Potentials: Communications power (U Supply voltage: 7.5 VDC (via voltage jumper) Current draw: max. 60 mA typ. 45 mA Potentials: Supply of analog modules (U Supply voltage: 24 VDC (via voltage jumper) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 18 mA typ. 13 mA Electrical isolation/isolation of the voltage ranges Test voltage: 7.5 V supply (bus logic), 24 V supply UANA / I/O: 500 VAC, 50 Hz, 1 min. Test voltage: 7.5V supply (bus logic), 24V supply UANA / functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: I/O/functional ground: 500 VAC, 50 Hz, 1 min. |
Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing) |
Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
Mounting | Mounting type: DIN rail mounting |
ECLASS | ECLASS-11.0: 27242601 ECLASS-12.0: 27242601 ECLASS-13.0: 27242601 |
ETIM | ETIM 9.0: EC001596 |
UNSPSC | UNSPSC 21.0: 32151600 |
