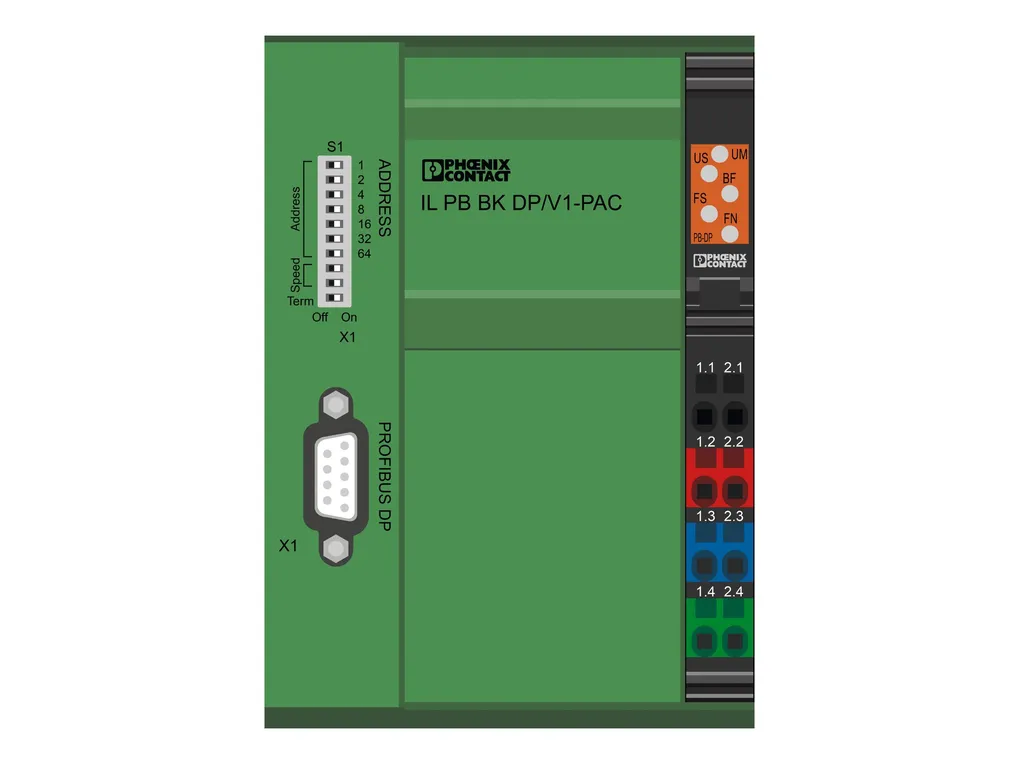

IL PB BK DP/V1-PAC - Bus coupler
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/da0caa5030deb84f98163ec401ea492e/-S204x204-FJPG Width: 85 mm Height: 119.8 mm Depth: 71.5 mm |
Notes | Utilization restriction CCCex note: Use in potentially explosive areas is not permitted in China. |
Interfaces | PROFIBUS DP Number of interfaces: 1 Connection method: D-SUB-9 female connector Number of positions: 9 Transmission speed: 9.6 kbps ... 12 Mbps Inline local bus Number of interfaces: 1 Connection method: Inline data jumper Transmission speed: 500 kbps Fieldbus: Local bus gateway Max. number of local bus devices: 63 |
System properties | System limits Number of supported devices: max. 63 (per station) Number of local bus devices that can be connected: max. 63 Number of devices with parameter channel: max. 16 Number of supported branch terminals with remote bus branch: 0 Module ID code (hex): none |
Product properties | Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connector and labeling field |
Electrical properties | Maximum power dissipation for nominal condition: 30 W Protective circuit: Protection against polarity reversal, surge protection (24-V supply UBK and US) Potentials: Bus coupler supply U Supply voltage: 24 VDC (via Inline connector) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 1.25 A (with max. number of connected I/O terminal blocks) typ. 100 mA (without connected Inline I/O terminals) Potentials: Communications power (U Supply voltage: 7.5 VDC Potentials: Supply of analog modules (U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Potentials: Main circuit supply (U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Potentials: Segment circuit supply (U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Electrical isolation/isolation of the voltage ranges Test voltage: PROFIBUS/local bus and supply voltage UBK and US: 500 V Test voltage: PROFIBUS / FE: 500 V Test voltage: PROFIBUS / FE D-SUB: 500 V Test voltage: Local bus and supply voltage UBK and US / FE: 500 V Test voltage: Local bus and supply voltage UBK and US / FE D-SUB: 500 V Test voltage: FE / FE D-SUB: 500 V |
Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): 0°C ... 55°C Degree of protection: IP20 Air pressure (operation): 80 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 85 % (non-condensing) Permissible humidity (storage/transport): 85 % (non-condensing) |
Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
Mounting | Mounting type: DIN rail mounting |
ECLASS | ECLASS-11.0: 27242608 ECLASS-12.0: 27242608 ECLASS-13.0: 27242608 |
ETIM | ETIM 9.0: EC001604 |
UNSPSC | UNSPSC 21.0: 32151600 |
