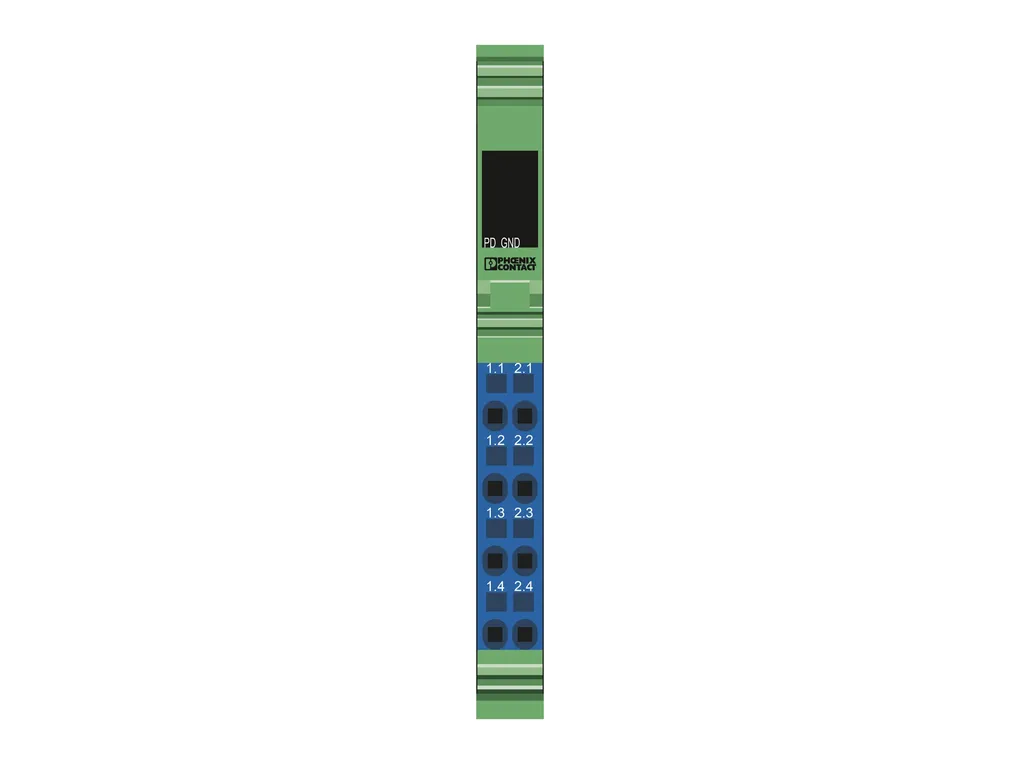

IB IL PD GND-PAC - Potential distributors
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/61847ea072ac2f4a94bf2299909bd975/-S204x204-FJPG Width: 12.2 mm Height: 119.8 mm Depth: 71.5 mm |
Interfaces | Inline local bus Connection method: Inline data jumper Transmission speed: 500 kbps / 2 Mbps |
System properties | Module ID code (dec.): none ID code (hex): none Register length: 0 bit Required parameter data: 0 Byte Required configuration data: 0 Byte |
Product properties | Type: modular Product type: I/O component Product family: Inline Insulation characteristics Protection class: III (IEC 61140, EN61140, VDE0140-1) |
Electrical properties | Test section: 24V supply (I/O) / functional ground 500 VAC 50 Hz 1 min. Supply I/O voltage: GND Max. current consumption: 8 A |
Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 55°C Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 75 % ... 85 % Permissible humidity (storage/transport): 75 % ... 85 % |
Mounting | Mounting type: DIN rail mounting |
ECLASS | ECLASS-11.0: 27242692 ECLASS-12.0: 27242692 ECLASS-13.0: 27242692 |
ETIM | ETIM 9.0: EC002584 |
UNSPSC | UNSPSC 21.0: 32151600 |
