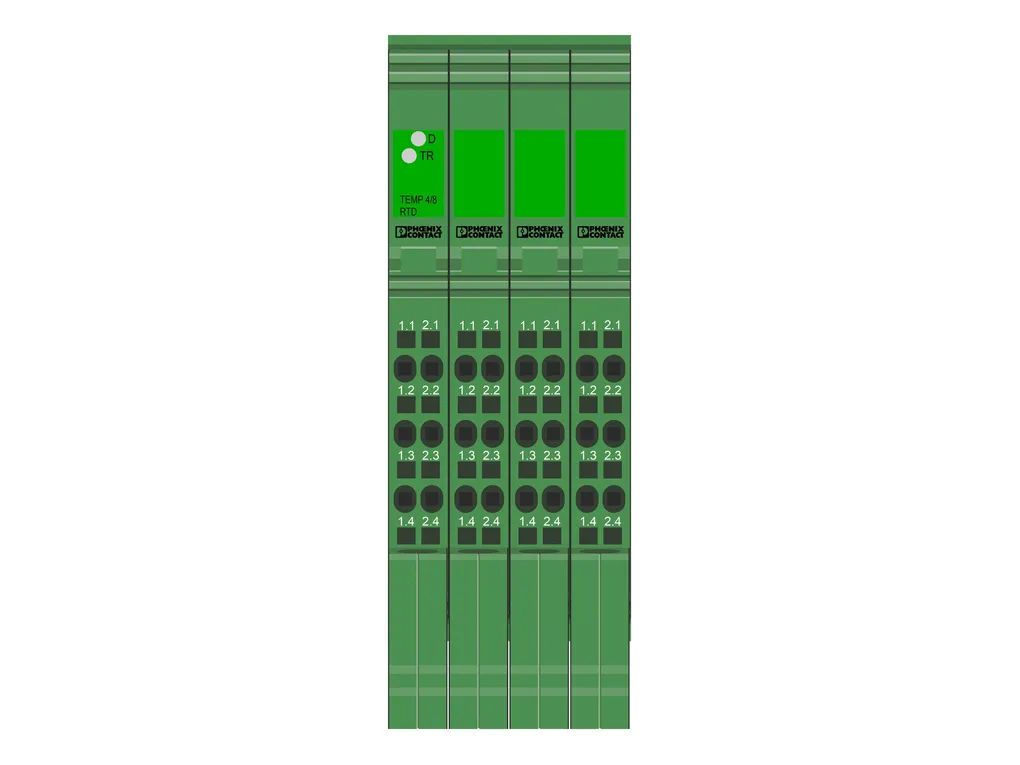

IB IL TEMP 4/8 RTD-PAC - Temperature module
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8f49d2b498684640a945b59e148b2698/-S204x204-FJPG Width: 48.8 mm Height: 136.8 mm Depth: 71.5 mm |
Interfaces | Inline local bus Connection method: Inline data jumper Transmission speed: 500 kbps Transmission physics: Copper |
System properties | Module ID code (dec.): 223 ID code (hex): DF Length code (hex): 05 Length code (dec): 05 Process data channel: 80 bit Input address area: 10 Byte Output address area: 10 Byte Register length: 96 bit Required parameter data: 31 Byte Required configuration data: 5 Byte |
Input data | Analog Input name: Analog RTD inputs Description of the input: Input for resistive temperature sensors Number of inputs: 8 Connection method: Spring-cage connection Connection technology: 2, 3-conductor A/D conversion time: max. 10 µs Sensor types (RTD) that can be used: Pt, Ni, KTY, Cu sensors, linear resistors Data formats: IB IL, IB ST, S7 compatible Measuring principle: Successive approximation Measured value representation: 16 bits (15 bits + sign bit) Linear resistance measuring range: 0 é ... 400 é 0 é ... 20 ké Process data update: 6 ms (Up to 230 ms possible depending on operating mode) |
Product properties | Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connectors and marking fields Operating mode: Process data mode with 5 words/1 word PCP |
Electrical properties | Maximum power dissipation for nominal condition: 0.59 W Potentials Power consumption: typ. 1.24 W Potentials: Communications power (U Supply voltage: 7.5 VDC (via voltage jumper) Current draw: max. 100 mA typ. 75 mA Potentials: Supply of analog modules (U Supply voltage: 24 VDC (via voltage jumper) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 55 mA typ. 28 mA Electrical isolation/isolation of the voltage ranges Test voltage: 7.5 V supply (bus logic)/±15.5 V, ±5 V analog supply (analog I/O): 500 VAC, 50 Hz, 1 min. Test voltage: 7.5V supply (bus logic)/functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: ±15.5V, ±5V analog supply (analog I/O)/functional ground: 500 VAC, 50 Hz, 1 min. |
Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (according to DINEN61131-2) Permissible humidity (storage/transport): 10 % ... 95 % (according to DINEN61131-2) |
Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
Mounting | Mounting type: DIN rail mounting |
ECLASS | ECLASS-11.0: 27242601 ECLASS-12.0: 27242601 ECLASS-13.0: 27242601 |
ETIM | ETIM 9.0: EC001596 |
UNSPSC | UNSPSC 21.0: 32151600 |
