Notes | General: Refer to the data sheet for the range in the download area. Material of contact pads for bus connector, galvanic gold (hard gold) |

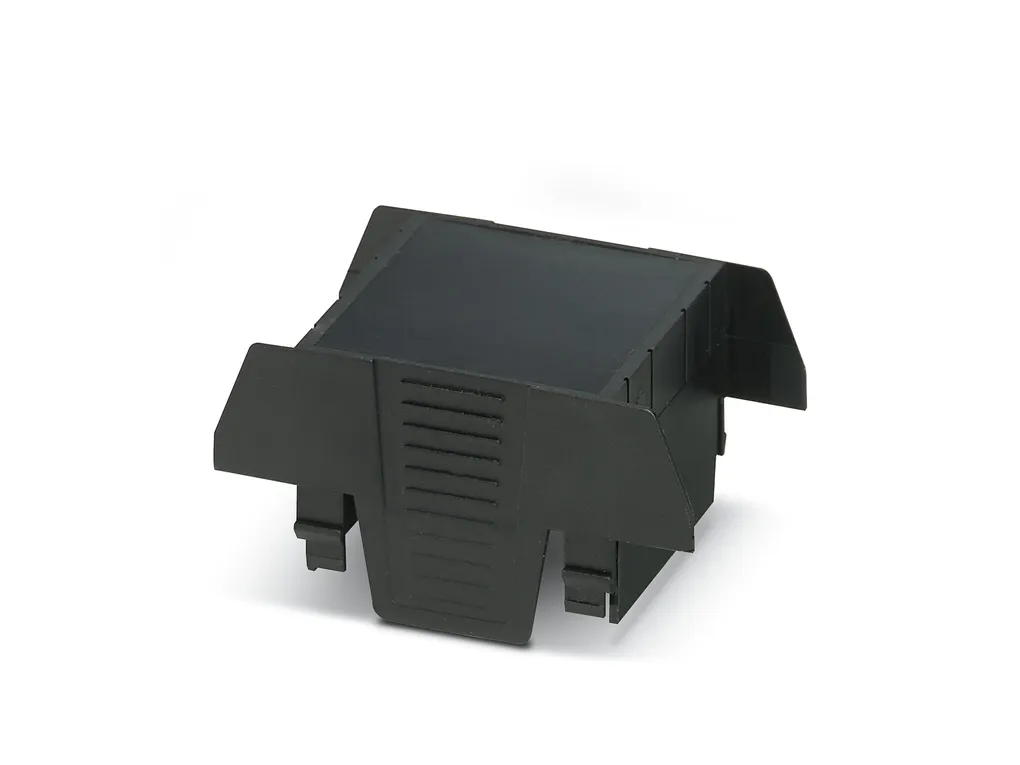

Product properties | Type: Lower housing parts with vents, housing cover necessary to complete the module Complete housing with metal foot catch, tall design Product type: Complete housing Product family: ME MAX 3-3 Max. number of positions: 60 (pitch: 3.5 mm) 48 (pitch: 5 mm) 36 (pitch: 7.25 mm/7.5 mm) Number of rows: 3 Housing type: DIN rail housing Ventilation openings present: yes Housing series: ME-MAX |
Dimensions | Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22580/full/b250?format=jpg Width: 45.2 mm Height: 99 mm Depth: 113.65 mm Depth from top edge of DIN rail: 107 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
Material specifications | Color: light grey (7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Surface characteristics: untreated Housing material: Polyamide |
Environmental and real-life conditions | Power dissipation single housing for 20°C Ambient temperature: 20°C Reduction factor: 1 Mounting position: vertical Power dissipation: 8.2 W Power dissipation single housing for 30°C Ambient temperature: 30°C Reduction factor: 0.91 Mounting position: vertical Power dissipation: 7.45 W Power dissipation single housing for 40°C Ambient temperature: 40°C Reduction factor: 0.81 Mounting position: vertical Power dissipation: 6.65 W Power dissipation single housing for 50°C Ambient temperature: 50°C Reduction factor: 0.7 Mounting position: vertical Power dissipation: 5.75 W Power dissipation single housing for 60°C Ambient temperature: 60°C Reduction factor: 0.57 Mounting position: vertical Power dissipation: 4.65 W Power dissipation single housing for 70°C Ambient temperature: 70°C Reduction factor: 0.49 Mounting position: vertical Power dissipation: 4 W Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min Amplitude: 0.15mm (10Hz...58.1Hz) Acceleration: 2g (58.1Hz...150Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Glow-wire test Specification: IEC 60695-2-11:2014-02 Temperature: 850°C Time of exposure: 30 s Mechanical strength / tumbling barrel Specification: IEC 60998-1:2002-12 Height of fall: 50cm Frequency: 10 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Half-sine Acceleration: 15g Shock duration: 11ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Degree of protection (IP code) Specification: IEC 60529:1989-11 + AMD1:1999-11 + AMD2:2013-08 Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 % |
PCB data | Number of PCB holders: 2 Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm |
Mounting | Mounting type: DIN rail mounting Mounting position: Vertical (horizontal DIN rail) |
Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
