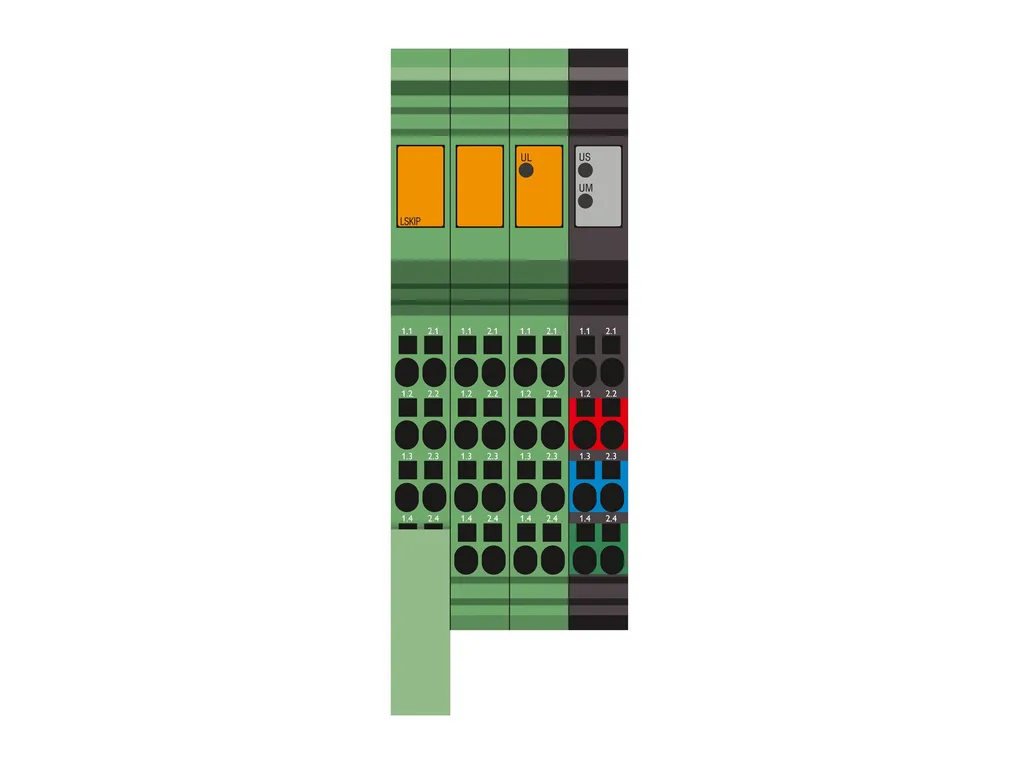

IB IL 24 LSKIP-PAC - Communication module

Inline, Coupler terminal, for extending the Inline local bus, transmission speed in the local bus:500 kbps / 2 Mbps, degree of protection: IP20, including Inline connectors and marking fields

Product Code: 2897457

Partner cod.: 2897457

PHOENIX CONTACT

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/20a984302842e949b5ce7beb58df3766/-S204x204-FJPG Width: 48.8 mm Height: 135 mm Depth: 71.5 mm
Interfaces	Inline local bus Number of interfaces: 1 (incoming local bus) Connection method: Inline shield connector Note on the connection method: Standard INTERBUS cable Transmission speed: 500 kbps / 2 Mbps (Can be used in Inline stations with these transmission speeds) Transmission physics: Copper Inline local busÃ¢ Number of interfaces: 1 Connection method: Inline data jumper Transmission speed: 500 kbps / 2 Mbps
System properties	System limits Number of local bus devices that can be connected: max. 63 (without additional power terminal block, observe allowable total current consumption) Number of devices with parameter channel: 63 Module ID code (hex): none Input address area: 0 Byte Output address area: 0 Byte Register length: 0 bit Required parameter data: 0 Byte Required configuration data: 0 Byte
Product properties	Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connectors and marking fields
Electrical properties	Protective circuit: Surge protection (segment supply, main supply, 24 V supply); Input protective diodes (can be destroyed by permanent overload)Pulse loads up to 1500W are short circuited by the input protective diode. Protection against polarity reversal (segment supply/main supply); Parallel diodes for protection against polarity reversal; in the event of an error the high current flowing through the diodes causes the fuse connected upstream to blow. Polarity reversal (24 V supply); Serial diode in the lead path of the power supply unit; in the event of an error only a low current flows. In the event of an error, no fuse trips within the external power supply unit. Short-circuit protection of the communications power; electronic Short-circuit protection of the analog supply; electronic Potentials: 24 V supply (U Supply voltage: 24 VDC (via Inline connector) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 1.25 A (at nominal voltage; consisting of: 0.75 A DC for the communications power and 0.5 A DC for the analog voltage supply) min. 60 mA (without connected Inline I/O terminals) Potentials: Communications power (U Supply voltage: 7.5 VDC Potentials: Supply of analog modules (U Supply voltage: 24 VDC (via voltage jumper) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Potentials: Main circuit supply (U Supply voltage: 24 VDC (via Inline connector) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Potentials: Segment circuit supply (U Supply voltage: 24 VDC (via Inline connector) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Electrical isolation/isolation of the voltage ranges Test voltage: 5 V supply incoming local bus / 7.5 V communications power, 24 V analog power supply, 24 V power supply for generating voltages U_L and U_ANA: 500 VAC, 50 Hz, 1 min. Test voltage: 5 V supply incoming local bus / 24 V main supply, 24 V segment supply: 500 VAC, 50 Hz, 1 min. Test voltage: 7.5 V communications power, 24 V analog power supply, 24 V power supply for generating voltages U_L and U_ANA / functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: 7.5 V communications power, 24 V analog power supply, 24 V power supply for generating voltages U_L and U_ANA / 24 V main supply, 24 V segment supply: 500 VAC, 50 Hz, 1 min. Test voltage: 24 V main supply, 24 V segment supply, 24 V power supply for generating voltages U_L and U_ANA / functional ground: 500 VAC, 50 Hz, 1 min.
Connection data	Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing)
Standards and regulations	Protection class: III (IEC 61140, EN61140, VDE0140-1)
Mounting	Mounting type: DIN rail mounting
