CB S-BE - Base element
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Type: Base element, PCB mounting Product type: Base element Product family: CB BE |
Electrical properties | General Rated insulation voltage Ui: 80 VDC 277 VAC Rated surge voltage: 2.5 kV Insertion/withdrawal cycles: 50 Main circuit Rated voltage: 80 VDC 277 VAC Rated current IN: 16 A Remote indication circuit Rated voltage: 80 VDC 277 VAC Rated current IN: 1 A |

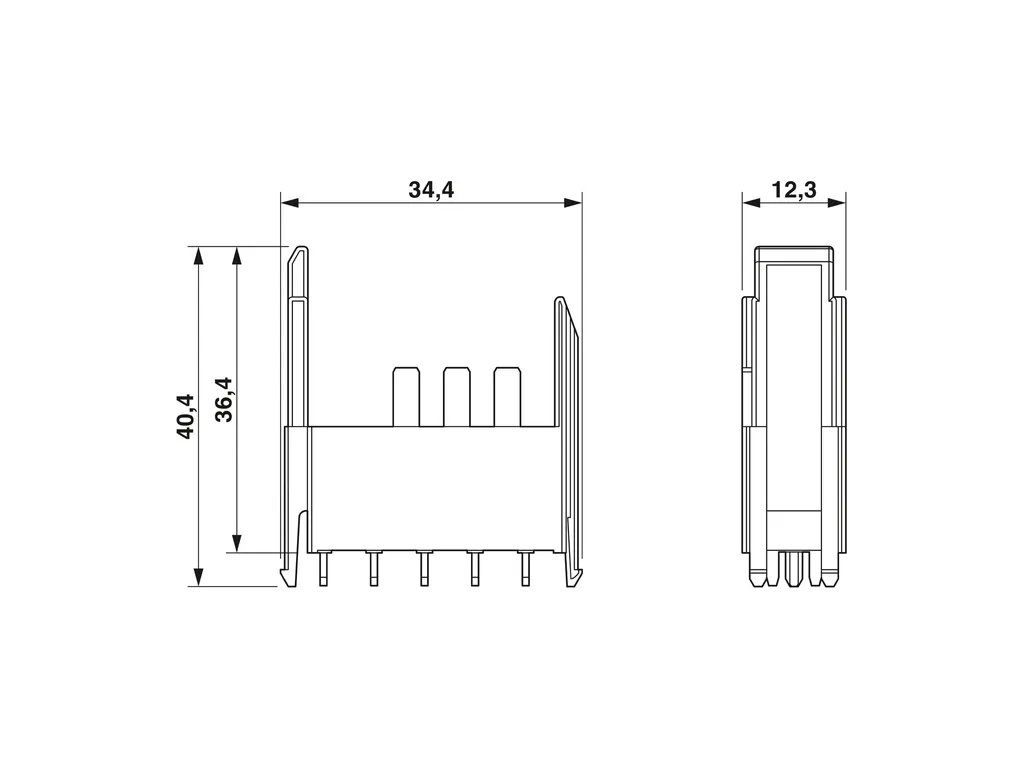

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7cd165a0ac04734c9d5d8cd41b592e54/-S204x204-FJPG Width: 12.3 mm Height: 34.8 mm Depth: 36.4 mm |
Material specifications | Flammability rating according to UL 94: V-0 Housing material: PA 6.6 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP30 (Plug-in area with plugged-in device) IP00 (Connection area) Ambient temperature (operation): -30°C ... 60°C Ambient temperature (storage/transport): -40°C ... 80°C Humidity test: 240 h, 95 % RH, 40°C |
Standards and regulations | Standards/specifications: DINEN50155 IEC 60068-2 |
Mounting | Mounting type: On PCB Connection method: Solder connection |
ECLASS | ECLASS-11.0: 27130803 ECLASS-13.0: 27140492 |
ETIM | ETIM 9.0: EC002936 |
UNSPSC | UNSPSC 21.0: 39121600 |
