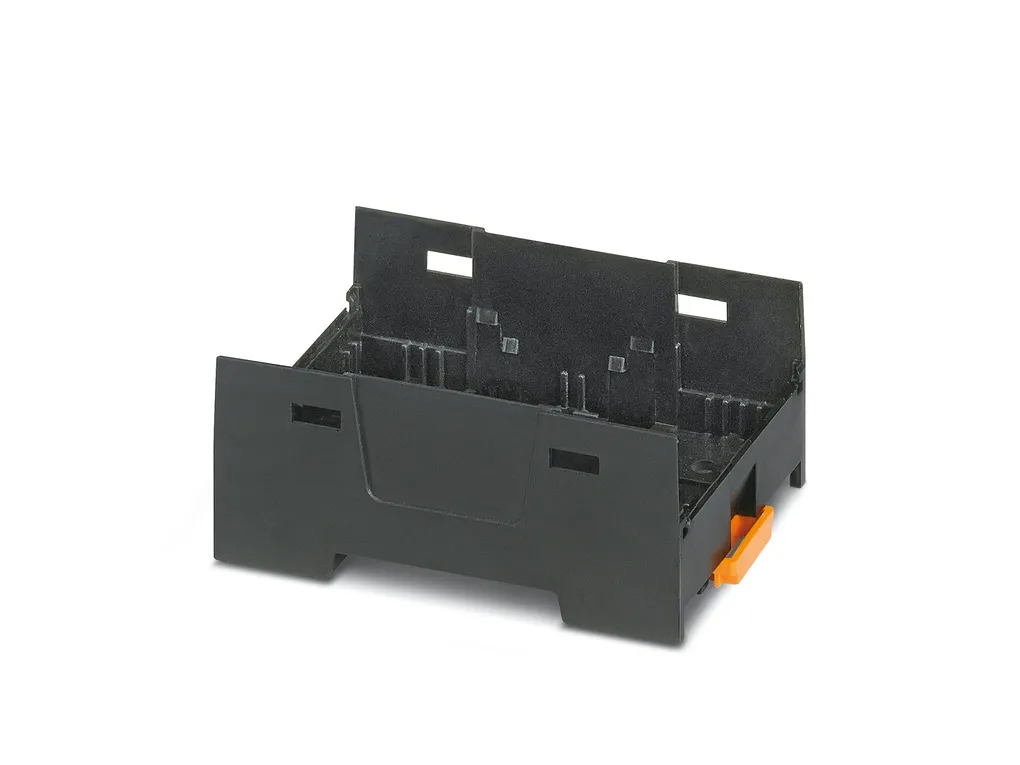

ME 17,5 UT/FE BUS/10 GN - Mounting base housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Refer to the data sheet for the range in the download area. Material of contact pads for bus connector, galvanic gold (hard gold) |
Product properties | Type: Lower housing parts with vents, housing cover necessary to complete the module Lower housing part with metal foot catch, with FE contact, tall design Product type: Enclosure bottom part Product family: ME UT FE BUS Housing type: DIN rail housing Ventilation openings present: yes Housing series: ME |
Electrical properties | Nominal current IN: 8 A (parallel contacts) Degree of pollution: 3 Rated voltage (III/3): 63 V Rated surge voltage (III/3): 1.5 kV Rated voltage (III/2): 150 V Rated surge voltage (III/2): 2.5 kV Rated voltage (II/2): 300 V Rated surge voltage (II/2): 2.5 kV |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f7cb8d787f84004f8d1011c43706dd99/-S204x204-FJPG Width [w]: 17.6 mm Height [h]: 99 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
Material specifications | Material data - contact Contact material: Cu alloy Surface characteristics: gold-plated Material data - housing Color (Housing): green (6021) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 |
Connector | Connection 1 Insulating material: PA CTI according to IEC 60112: 600 |
Electrical tests | Air clearances and creepage distances | Specification: IEC 60664-1:2007-04 Insulating material group: I Rated insulation voltage (III/3): 63 V Rated surge voltage (III/3): 1.5 kV minimum clearance value - non-homogenous field (III/3): 0.8 mm minimum creepage distance (III/3): 1.6 mm Rated insulation voltage (III/2): 150 V Rated surge voltage (III/2): 2.5 kV minimum clearance value - non-homogenous field (III/2): 1.5 mm minimum creepage distance (III/2): 0.8 mm Rated insulation voltage (II/2): 300 V Rated surge voltage (II/2): 2.5 kV minimum clearance value - non-homogenous field (II/2): 1.5 mm minimum creepage distance (II/2): 1.5 mm |
Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 55°C Relative humidity (storage/transport): 30 % ... 70 % 80 % Ambient temperature (assembly): -5°C ... 100°C |
PCB data | Number of PCB holders: 1 Type of PCB mount: Insertion (optional latching by PCB stop) Thickness of the PCB: 1.4 mm ... 1.8 mm |
Mounting | Mounting type: DIN rail mounting Mounting position: Vertical (horizontal DIN rail) |
Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190601 |
ETIM | ETIM 9.0: EC001031 |
UNSPSC | UNSPSC 21.0: 31261500 |
