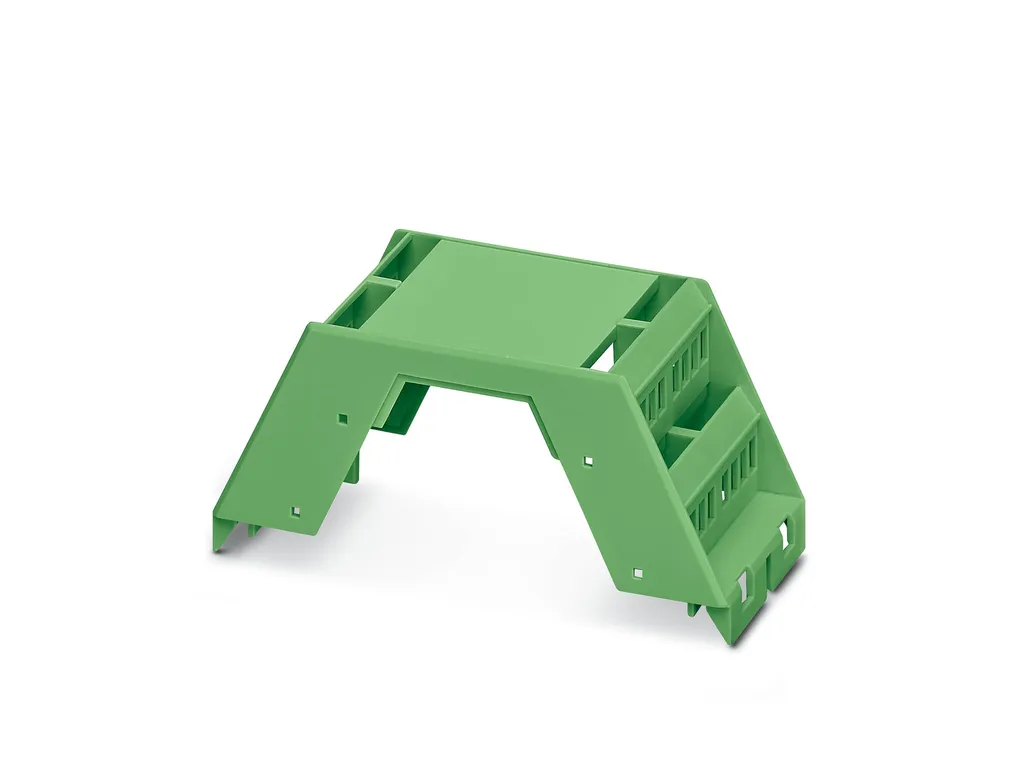

Product properties | Type: Lower housing part, removable cover as option, connection system integrated Lower and upper part, with snap-on foot, including PCB terminal blocks Product type: Stackable housing set Product family: EMG LG SET Number of positions: 18 Pitch: 5 mm Housing type: Component housing Housing series: EMG |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e7e3639cca3cdc4aaa699907eed76adc/-S204x204-FJPG Width: 50 mm Installed height: 47.5 mm Height NS 35/7,5: 55 mm 83 mm Depth: 75 mm Length: 75 mm Pitch: 5 mm |
Material specifications | Color: green Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polycarbonate, glass-fiber-reinforced |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 125°C |
Mounting | Mounting type: DIN rail mounting |
ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190301 |
ETIM | ETIM 8.0: EC001031 |
UNSPSC | UNSPSC 21.0: 31261500 |
