| Product properties | Type: Lower part of housing, removable cover optional Lower and upper part with snap-on foot, with lateral opening for connectors Product type: Complete housing Product family: EMG LG MSTB Housing type: Component housing Housing series: EMG |

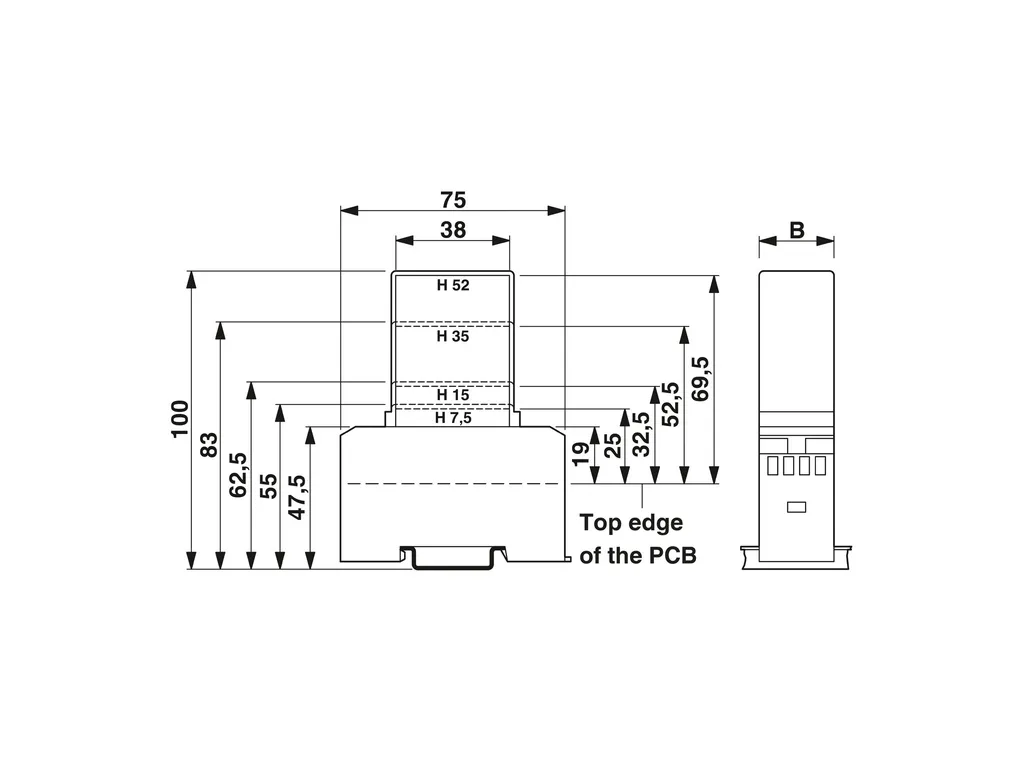

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e7e3639cca3cdc4aaa699907eed76adc/-S204x204-FJPG Width: 125 mm Installed height: 47.5 mm Height NS 35/7,5: 55 mm 83 mm Depth: 75 mm Length: 75 mm |
| Material specifications | Color: green Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polycarbonate, glass-fiber-reinforced |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 125°C |
| Mounting | Mounting type: DIN rail mounting |
| ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190101 |
| ETIM | ETIM 8.0: EC001031 |
| UNSPSC | UNSPSC 21.0: 31261500 |
