| Product properties | Type: Lower part of housing, removable cover optional Lower and upper part, with universal foot Product type: Complete housing Product family: EMG Number of positions: 8 Pitch: 5 mm Set comprises: 2942991 EMG 22-LG/SET Housing type: Component housing Housing series: EMG |

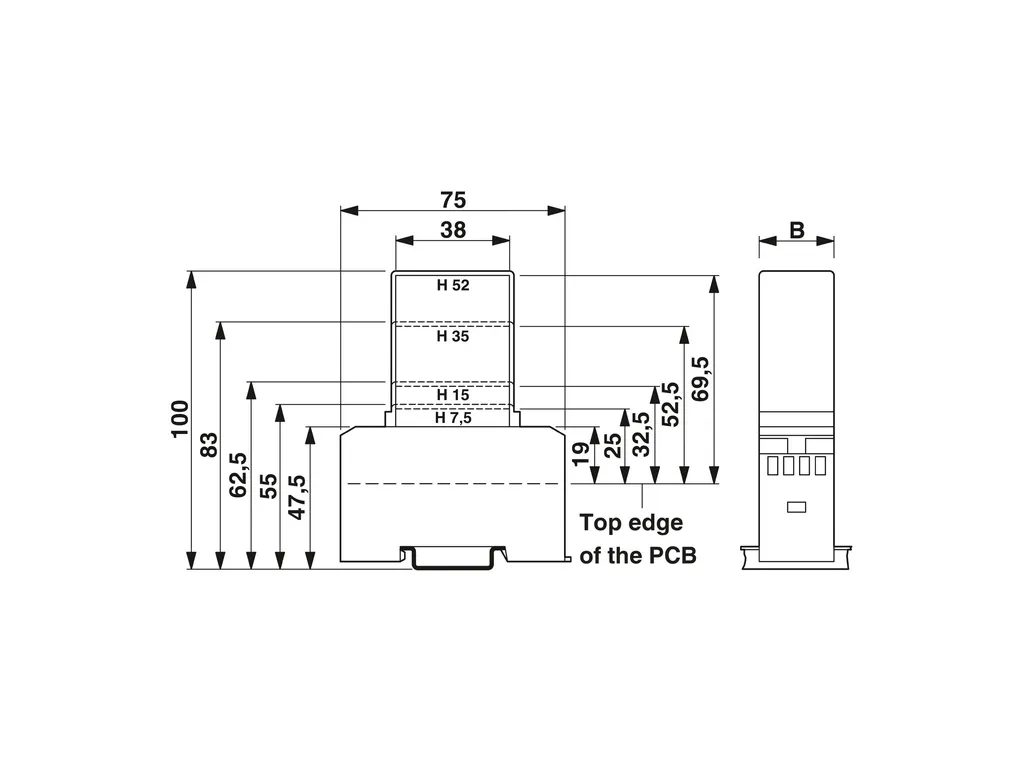

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e7e3639cca3cdc4aaa699907eed76adc/-S204x204-FJPG Width: 22.5 mm Installed height: 47.5 mm Height NS 35/7,5: 55 mm 83 mm 100 mm Depth: 75 mm Length: 75 mm Pitch: 5 mm |
| Material specifications | Color: green Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polycarbonate, glass-fiber-reinforced |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 125°C |
| Mounting | Mounting type: DIN rail mounting |
