EMG 25-LG - Electronic housing

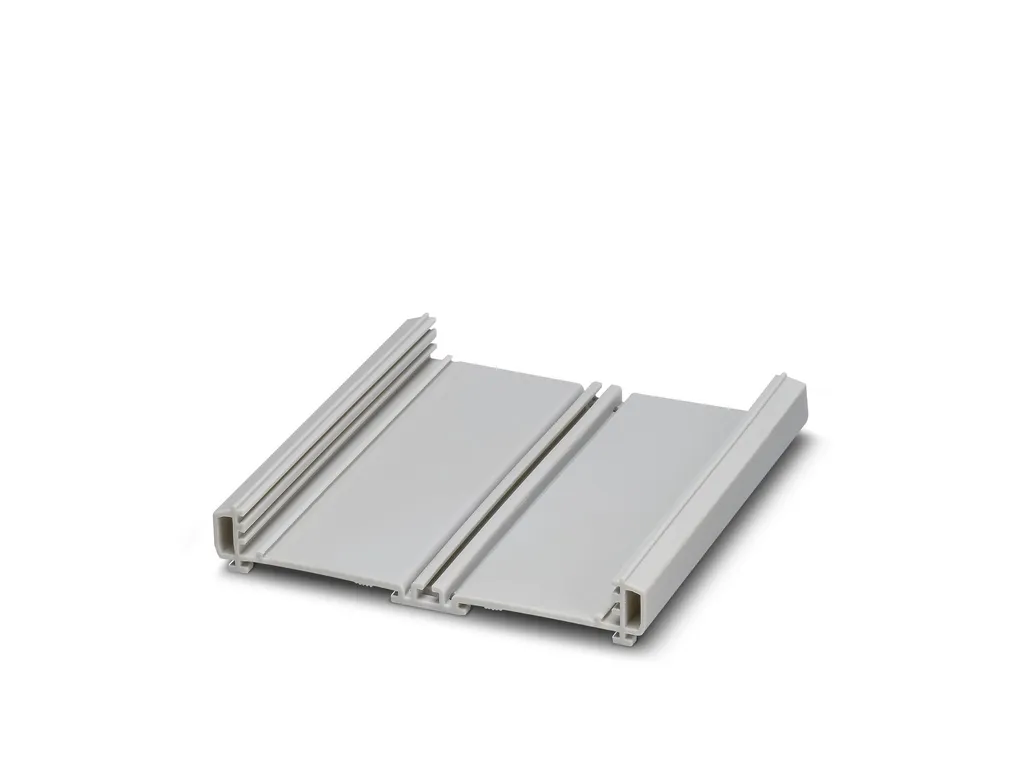

Press-drawn section housings, Latching with side elements, latching with foot element, Basic profile, color: light grey (7035), profile width (internal): 108 mm, length: 109 mm, depth: 19.8 mm

DIN rail housing, Base latch and spring for 100 mm housing height, width: 14.7 mm, height: 33.51 mm, depth: 6.5 mm, color: silver

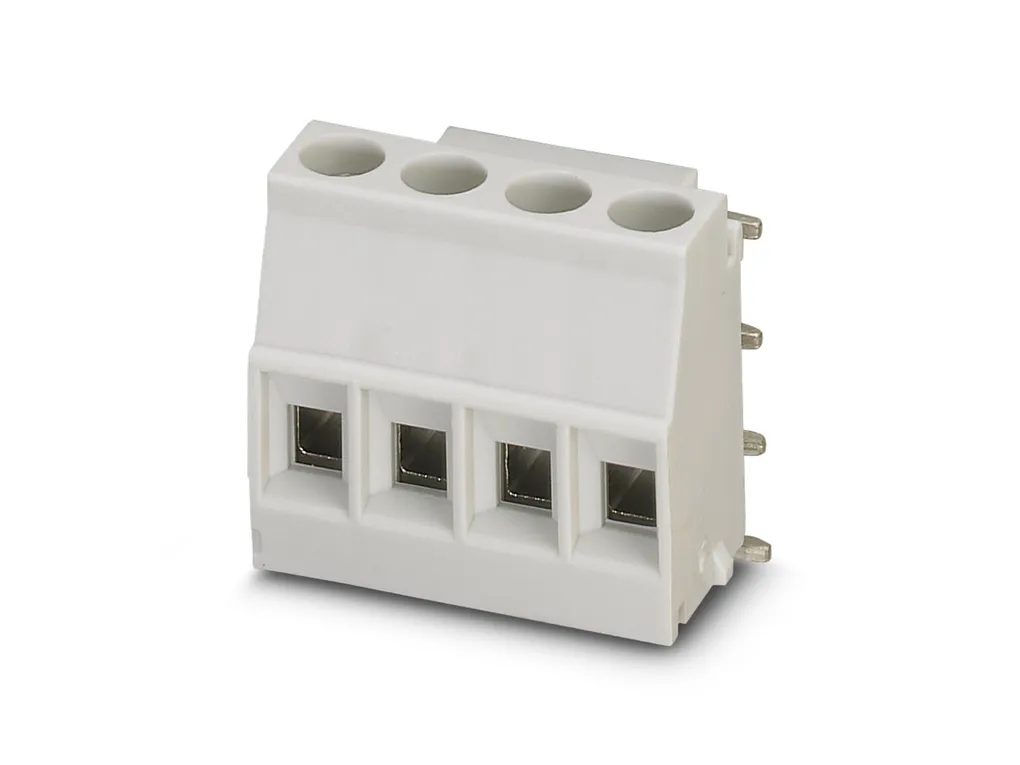

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: MKDSO 2,5/..-R, pitch: 5 mm, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: light grey, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. Product with pin output on right side
