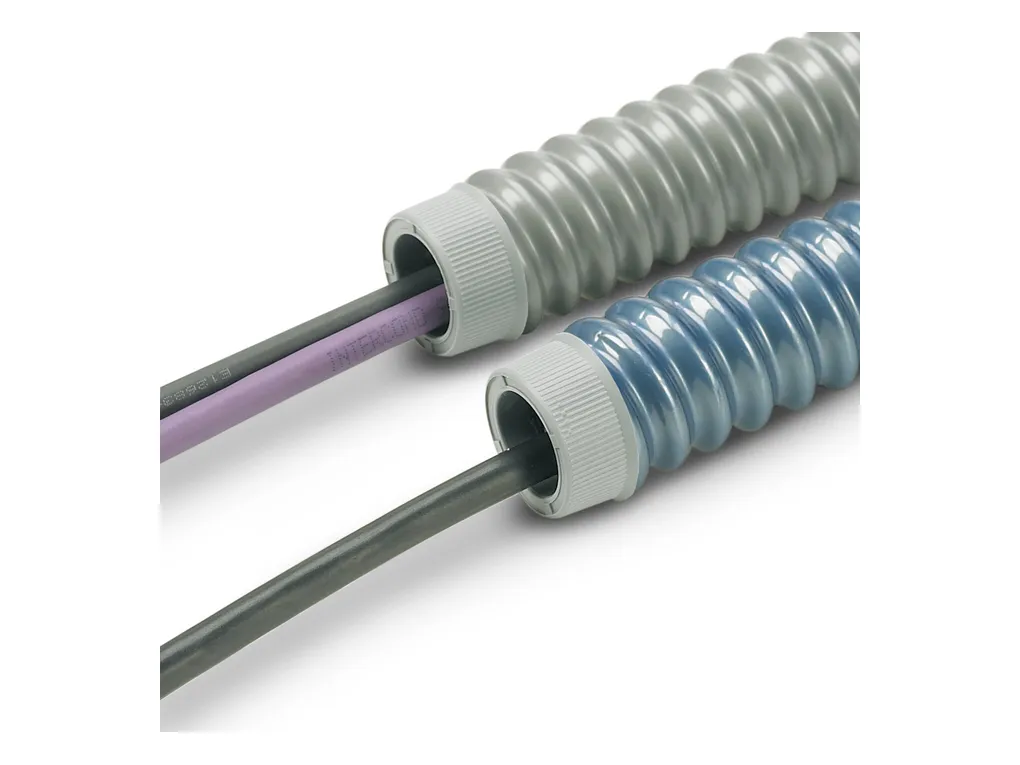

WP-SPIRAL PVC C 36 - Protective hose
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Protective hose length is measured stretched out; length tolerance±5% |
Product properties | Product type: Corrugated pipe Tensile strength GRP: 100 N |
Dimensions | External dimensions Outside diameter: 36 mm Internal dimensions Internal diameter: 29 mm |
Material specifications | Material: PVC Components: Free from silicone and cadmium |
Cable/line | Bending radius, dynamic: 65 mm Bending radius, static: 25 mm Tensile strength: 100 N Halogen-free: no |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 Ambient temperature (operation): -25°C ... 90°C Resistance to UV radiation: no Short-term temperature: 100°C |
Standards and regulations | Resistance to UV radiation: no |
ECLASS | ECLASS-11.0: 27430304 ECLASS-12.0: 27430304 ECLASS-13.0: 27430304 |
ETIM | ETIM 9.0: EC001177 |
UNSPSC | UNSPSC 21.0: 40141700 |
