| Mounting | Mounting type: This product is only intended for use outdoors. Assembly instructions: This product is only intended for use outdoors. If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. Connection method: QUICKON fast connection |
| Product properties | Type: D7 Male Product type: Contact insert with a fixed no. of positions Number of positions: 3 Connection profile: 3+PE Contact numbering: 1 - 3 Application: Standard No. of cable outlets: 1 Housing type: Complete housing Series: HC-A Shielded: no Cable outlet: straight Pg screw connection: with Insulation characteristics Overvoltage category: III Degree of pollution: 3 |

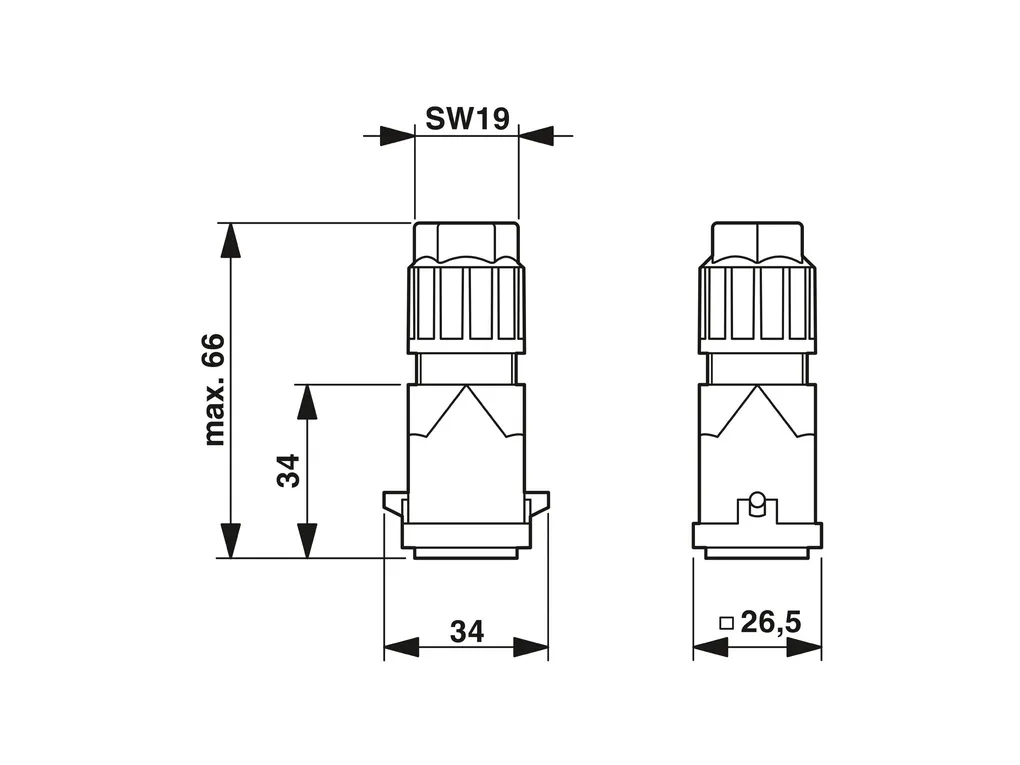

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/53eeb36e130c9a439c048520a44e3dd0/-S204x204-FJPG Width: 34 mm Height: 66 mm Length: 26.5 mm |
| Connection data | Connection technology Connection technology: QUICKON connection Conductor connection Conductor cross section: 0.75 mm² ... 1.5 mm² Connection cross section AWG: 18 ... 16 Tightening torque: 3 Nm |
| Electrical properties | Rated voltage (III/3): 230 V (Conductor-PE) 400 V (Conductor-Conductor) Rated surge voltage (II/2): 4 kV Rated surge voltage (III/2): 4 kV Rated surge voltage (III/3): 4 kV Rated surge voltage: 4 kV Rated current: 10 A |
| Mechanical properties | Mechanical data Locking type: Pin Insertion/withdrawal cycles: >= 500 |
| Material specifications | Material: PA Flammability rating according to UL 94: V0 Material wire insulation: PVC / PE Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PA/PC |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -25°C ... 80°C Temperature when conductor connected: -5°C ... 50°C (specifications of the cable manufacturer must also be observed) Ambient temperature (storage/transport): -25°C ... 80°C |
| ECLASS | ECLASS-11.0: 27440101 ECLASS-12.0: 27440113 ECLASS-13.0: 27440113 |
| ETIM | ETIM 9.0: EC002636 |
| UNSPSC | UNSPSC 21.0: 39121400 |
