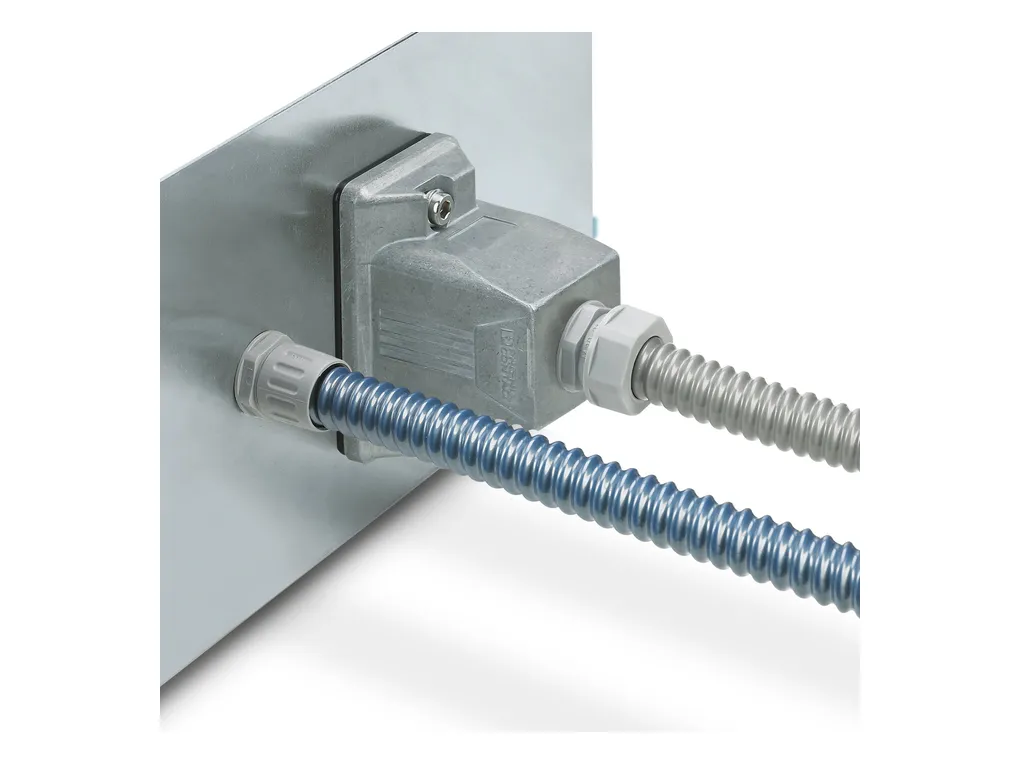

Product properties | Product type: Corrugated pipe screw connection Application: Cable gland Type of the screw connection: Conduit adapter Type: Outer thread Cable outlet: straight Thread type: metric |
Dimensions | Width: 35 mm Height: 44 mm Wrench size for mounting: 29 mm 32 mm |
Material specifications | Material: PP Flammability rating according to UL 94: HB Material for screw connection: PP Components: halogen-free |
Cable/line | Halogen-free: yes |
Mechanical properties | Mechanical data Type of the screw connection: Conduit adapter |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -10°C ... 110°C |
Mounting | Wrench size: 29 mm |
ECLASS | ECLASS-11.0: 27430311 ECLASS-13.0: 27430311 ECLASS-12.0: 27430311 |
ETIM | ETIM 9.0: EC001178 |
UNSPSC | UNSPSC 21.0: 39121300 |
