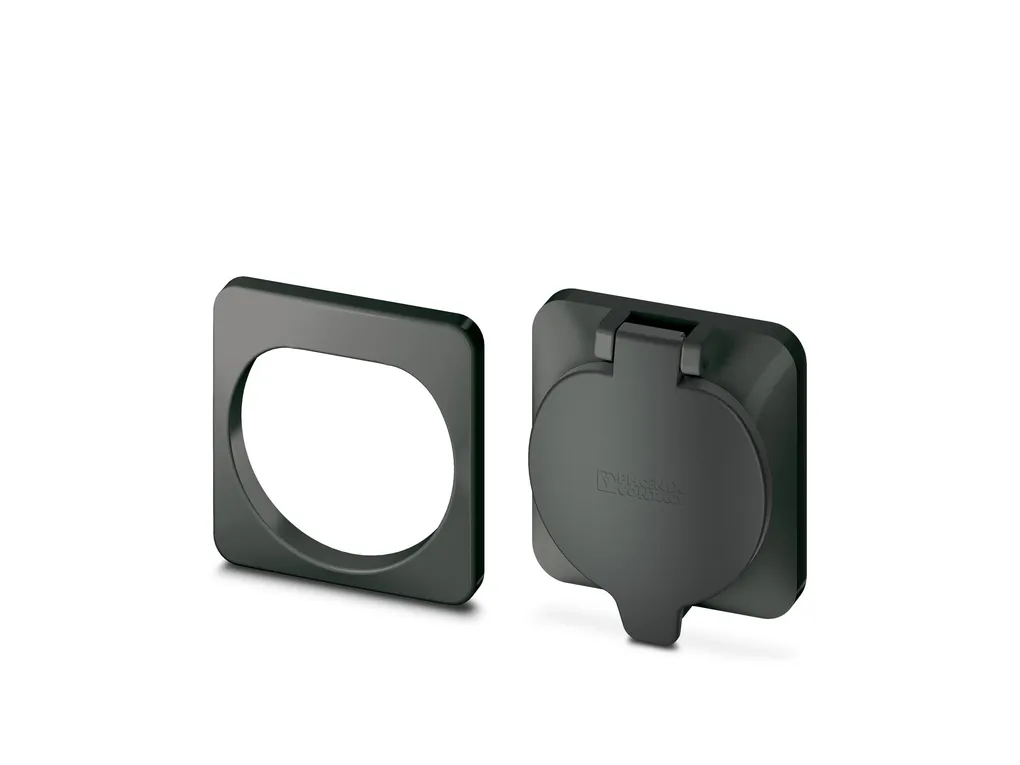

| Product properties | Product type: Panel mounting frame for Socket Outlet Product family: CHARX connect basic Application: for attaching to infrastructure charging sockets Type: Accessories Affixed logo: Without logo Charging standard: Type2 Charging mode: Mode 3, Case B |
| Dimensions | Width: 76.6 mm Height: 76.8 mm Depth: 13.4 mm Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/56812b78ef10a7479e64bd3f005bbe6e/-S204x204-FJPG Bore dimensions: 60 mm x 60 mm |
| Material specifications | Color (Housing): black (9005) Material (Housing): Plastic |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -30°C ... 50°C Ambient temperature (storage/transport): -40°C ... 80°C |
| Standards and regulations | Standards Standards/regulations: IEC 62196-2 |
| Mounting | Mounting type Protective cover: Front mounting (rear screw connection) Fixing screws: M5 thread |
| ECLASS | ECLASS-11.0: 27144792 ECLASS-12.0: 27144792 ECLASS-13.0: 27144792 |
| ETIM | ETIM 9.0: EC002884 |
| UNSPSC | UNSPSC 21.0: 39121500 |
