SACC-CI-M12FSY-8CON-L180 THR - Contact carrier

Contact carrier, Ethernet CAT5 (IEC11801:2002), 8-position, Socket, straight, M12, coding: Y, PCB mounting, THR solder connection, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238713

Cod. Articolo: 1405225

Cod. Fornitore: 1405225

PHOENIX CONTACT

Notes	General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Product properties	Product type: Contact insert Sensor type: Ethernet Number of positions: 8 Application: Hybrid Seal present: no Shielded: yes Coding: Y Thread type: M12 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 0.8 kV Contact resistance: Ã¢¤ 3 mÃ© Insulation resistance: > 100 MÃ© Nominal voltage U_N: 48 VAC (Power and data) 50 VDC (Power and data) Nominal current I_N: 0.5 A (Data) 6 A (Power) Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002)
Interfaces	Signal type/category: Ethernet CAT5 (IEC 11801:2002)

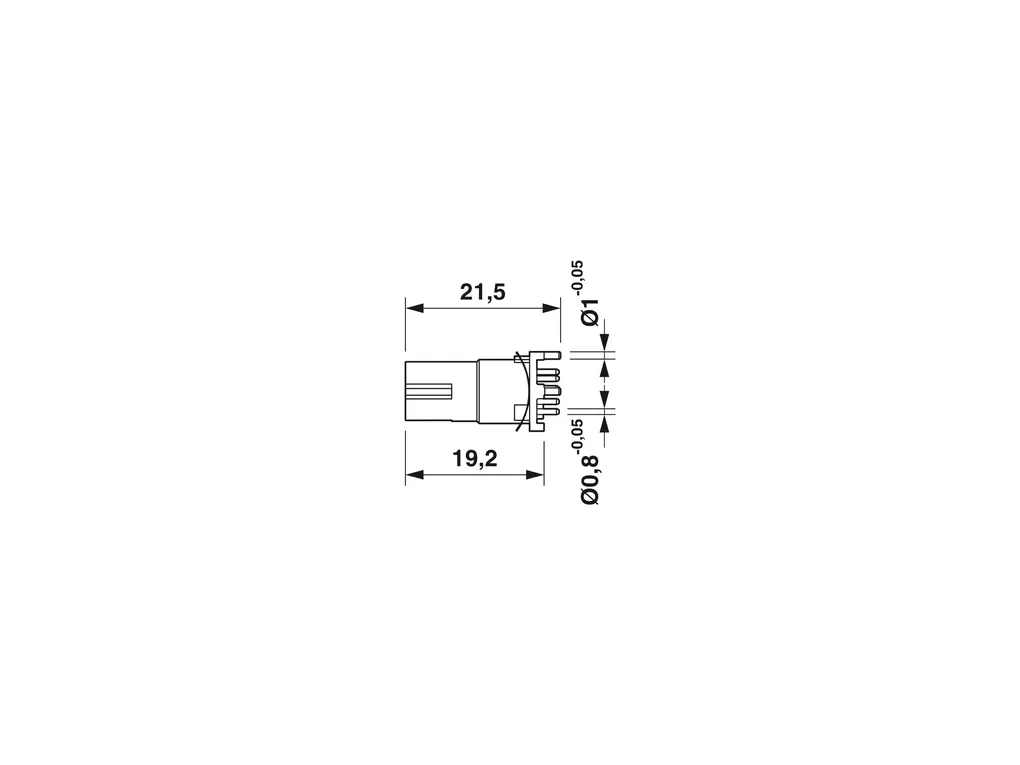

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/56bca5434576e240ac5e4d5969fdbed0/-S204x204-FJPG Length of the solder pin: 2.3 mm
Material specifications	Material: Zinc die-cast (nickel-plated) Flammability rating according to UL 94: V0 Contact material: CuZn Contact surface material: Au Contact carrier material: PPA
Connector	Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Coding: Y
Cable/line	Signal type/category: Ethernet CAT5 (IEC 11801:2002)
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 100
Environmental and real-life conditions	Ambient conditions Degree of protection (when plugged in): IP67 (correctly plugged in and locked) Degree of protection: IP67 (correctly plugged in and locked) IP67, when plugged in Ambient temperature (operation): -40°C ... 90°C (Plug / socket)
Mounting	Mounting type: PCB mounting Connection method: THR solder connection
Packaging specifications	Type of packaging: Blister
