| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.4 Connectors for outside environment (optical fibre) and chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |

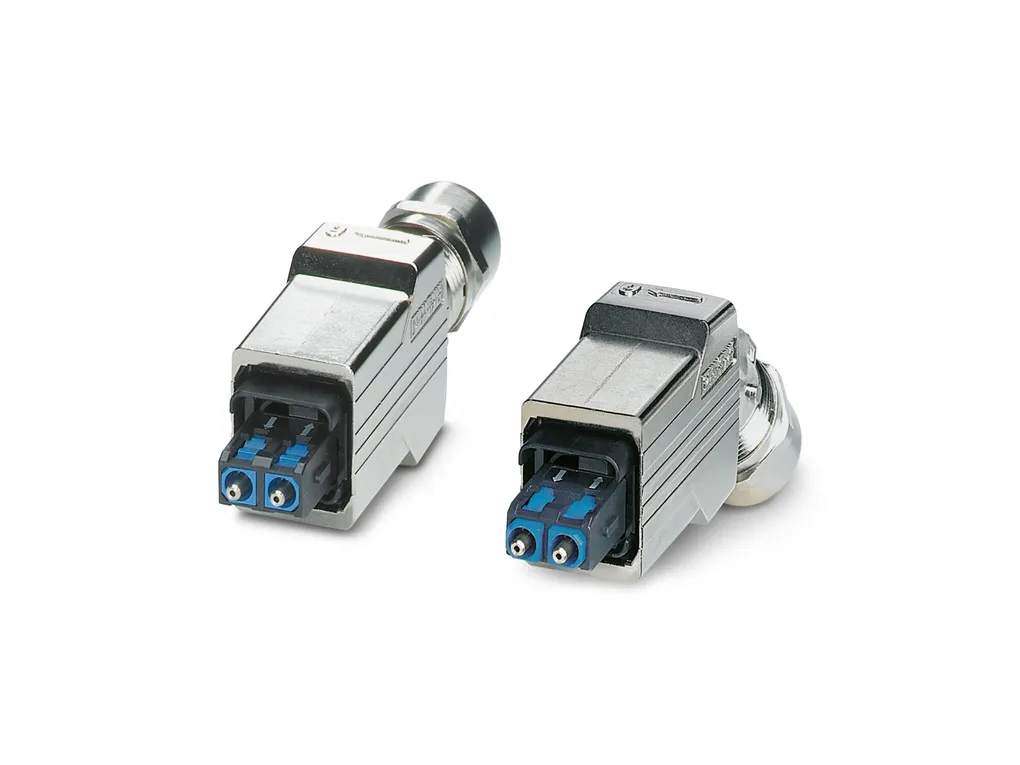

| Product properties | Type: SC-RJ Product type: Data connector (cable side) Number of positions: 2 Connection profile: SCRJ Cable outlet: angled Insulation characteristics Overvoltage category: I Degree of pollution: 3 |
| Electrical properties | Attenuation: ⤠1.5 dB (in accordance with ISO/IEC 24702) Transmission medium: FO Transmission characteristics (category): MM |
| Dimensions | Width: 22 mm Height: 34 mm Length: 80 mm |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR Ferrule material: Copper alloy Housing surface material: nickel-plated Housing material: Metal |
| Cable/line | Cable type: Plastic fiber External cable diameter (): 5.5 mm ... 10 mm External cable diameter: ⤠10 mm (of 5mm) 5.5 mm ... 10 mm Resistance to oil: yes Flame resistance: yes FO cable Number of fibers: 2 Fiber: 980/1000µm Fiber type: POF |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠100 |
| Characteristics | Attenuation: ⤠1.5 dB (in accordance with ISO/IEC 24702) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -25°C ... 70°C Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -10°C ... 40°C Resistance to oil: yes |
| Standards and regulations | Flame resistance: yes Resistance to oil: yes |
| ECLASS | ECLASS-11.0: 19170122 ECLASS-12.0: 19170122 ECLASS-13.0: 19170122 |
| ETIM | ETIM 9.0: EC001122 |
| UNSPSC | UNSPSC 21.0: 43223300 |
