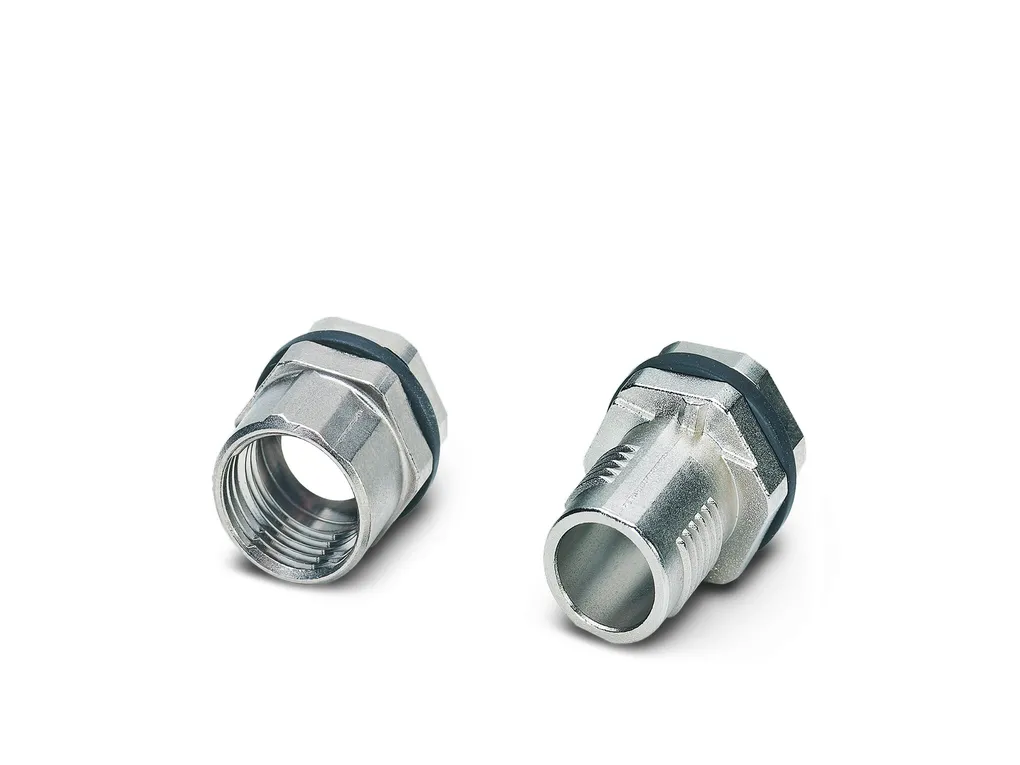

| Notes | General: Lock nut is included in the scope of delivery |
| Product properties | Product type: Panel mounting base |
| Material specifications | Material: Zinc die-cast (nickel-plated) Seal material: EPDM HNBR Material of grip body: Zinc die-cast, nickel-plated Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated |
| Cable/line | Ambient temperature (operation): -40°C ... 85°C (cable, fixed installation) -25°C ... 85°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection (when plugged in): IP67 (correctly plugged in and locked) Degree of protection: IP67 (correctly plugged in and locked) Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation) -25°C ... 85°C (Cable, flexible installation) -40°C ... 85°C (cable, fixed installation) |
| Standards and regulations | M12 Standards/specifications: IEC 61076-2-101 |
| Mounting | Mounting type: M12 x 1 |
| ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
| ETIM | ETIM 8.0: EC002635 |
| UNSPSC | UNSPSC 21.0: 39121400 |
