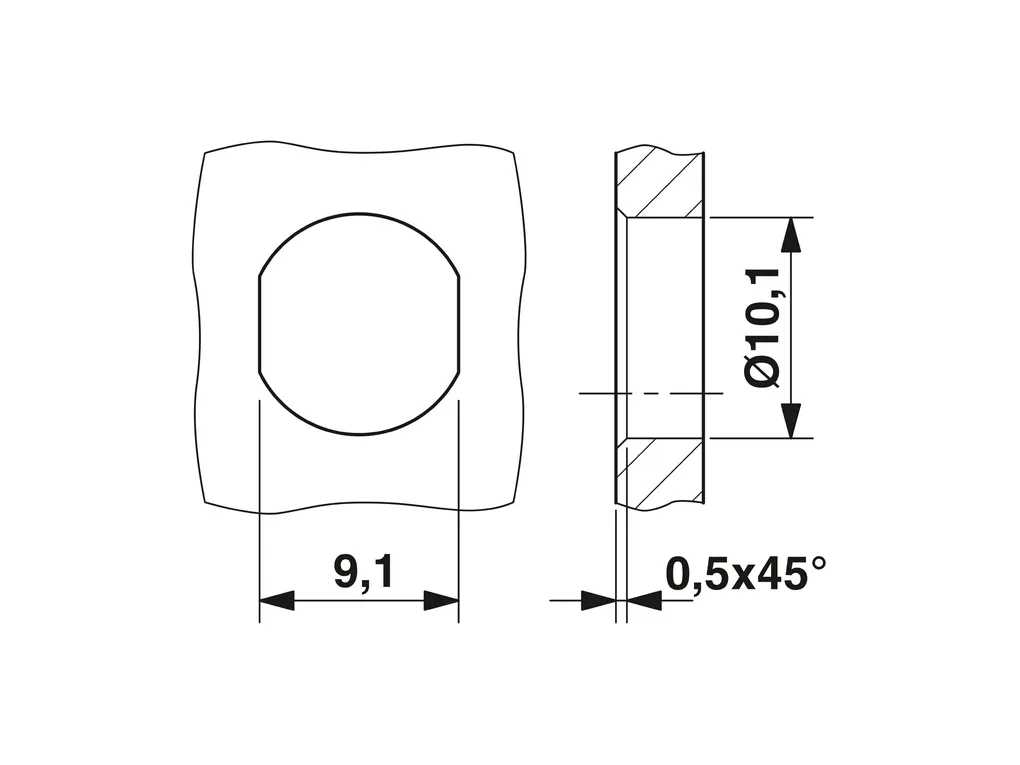

| Mounting | Mounting type: Rear mounting M10 Connection method: Individual wires |
| Product properties | Product type: Circular connectors (device side) Number of positions: 8 Shielded: no Coding: A Thread type: M8 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Contact material: Cu alloy Contact surface material: Au Contact carrier material: PUR/PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated Conductor material: Tin-plated Cu litz wires |
| Electrical properties | Contact resistance: ⤠3 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 30 V Nominal current IN: 1.5 A Max. conductor resistance: 80 é/km |
| Connection data | Conductor connection Connection method: Individual wires Contact connection type: Socket Conductor cross section: 0.14 mm² |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M8 |
| Cable/line | Cable length: 0.5 m Cable type: PVC litz wire Wire diameter incl. insulation: 1.3 mm ±0.1mm Single wire, color: white, brown, green, yellow, gray, pink, blue, red Cable cross section: 0.14 mm² Conductor material: Tin-plated Cu litz wires Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Material wire insulation: PVC / UL Thickness, insulation: 0.38 mm Nominal voltage, cable: 300 V Test voltage, cable: 2000 VAC Cable resistance: ⥠80 é/km Cable insulation resistance: ⥠20 Mé*km Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation) -10°C ... 105°C |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C -40°C ... 105°C (cable, fixed installation) -10°C ... 105°C |
| Standards and regulations | M8 Standard designation: M8 connector Standards/specifications: IEC 61076-2-104 |
| ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
| ETIM | ETIM 9.0: EC002635 |
| UNSPSC | UNSPSC 21.0: 39121400 |
