SACCBP-MSD-4CON-PG9/0,5-933SCO - Device connector, rear mounting

Device connector, rear mounting, PROFINET CAT5 (IEC 11801:2002) (100 Mbps), EtherCAT^® CAT5 (100 Mbps), 4-position, PVC, green RAL 6018, shielded, Pin, straight, M12-SPEEDCON, coding: D, on free cable end, Rear mounting, Cable connection, cable length: 0.5 m, PROFINET PVC stranded CAT5, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239684

Cod. Articolo: 1437805

Cod. Fornitore: 1437805

PHOENIX CONTACT

Notes	General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Mounting	Mounting type: Rear mounting Connection method: Cable connection
Product properties	Product type: Circular connectors (device side) Sensor type: PROFINET Number of positions: 4 Application: Data No. of cable outlets: 1 Shielded: yes Coding: D Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: V0 Seal material: FKM Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PA 6.6 Outer sheath, material: PVC
Electrical properties	Rated surge voltage: 2.5 kV Contact resistance: Ã¢¤ 3 mÃ© Insulation resistance: Ã¢¥ 100 MÃ© Nominal voltage U_N: 250 VAC Nominal current I_N: 4 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed) Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002)
Connection data	Conductor connection Connection method: Cable connection Contact connection type: Pin Tightening torque: 2 Nm 3 Nm
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢¥ 100
Connector	Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M12 Head locking type: SPEEDCON Coding: D Connection 2 Head design: free cable end

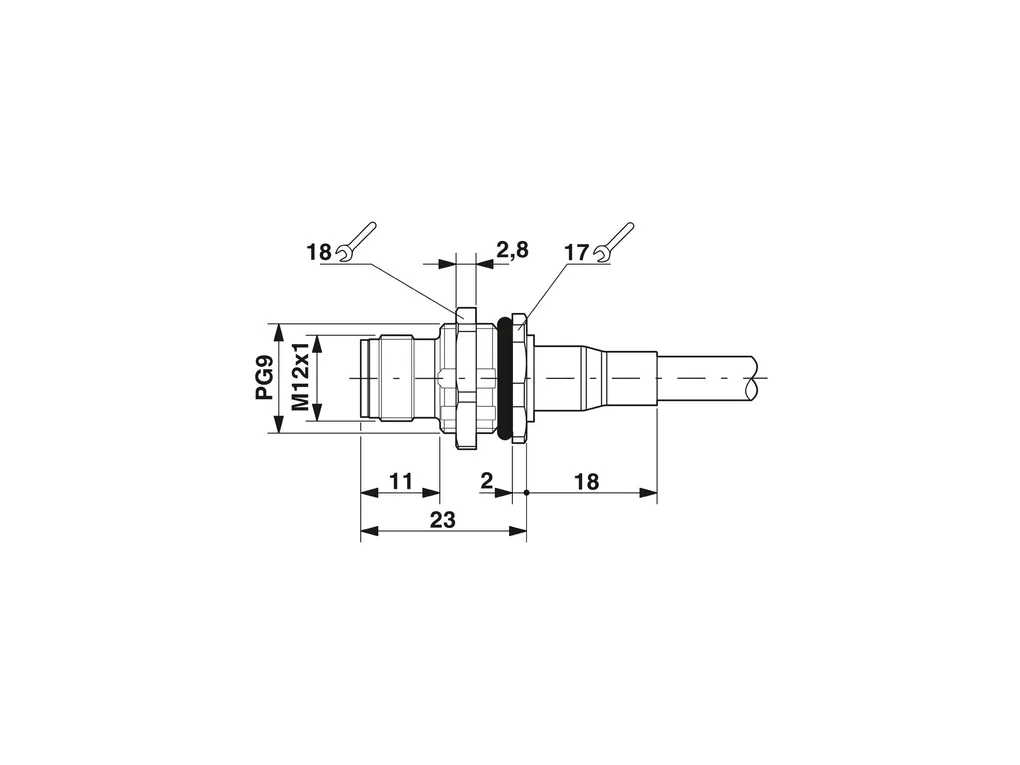

Cable/line	Cable length: 0.5 m PROFINET PVC stranded CAT5[93B] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9641ad6bfe7a694da352f4faa5bb90c4/-S204x204-FJPG Cable weight: 67 kg/km UL AWM Style: 21694 Number of positions: 4 Shielded: yes Cable type: PROFINET PVC stranded CAT5[93B] Conductor structure: 1x4xAWG22/7, SF/TQ Signal runtime: 5.3 ns/m Signal speed: 0.66 c Conductor structure signal line: 7x 0.25 mm AWG signal line: 22 Conductor cross section: 4x 0.34 mm² Wire diameter incl. insulation: 1.55 mm External cable diameter: 6.5 mm ±0.2mm Outer sheath, material: PVC External sheath, color: green RAL 6018 Conductor material: Tin-plated Cu litz wires Material wire insulation: PE Single wire, color: white, yellow, blue, orange Thickness, outer sheath: approx. 0.9 mm Overall twist: Star quad Optical shield covering: 85 % Insulation resistance: Ã¢¥ 500 MÃ©*km Coupling resistance: Ã¢¤ 20.00 mÃ©/m (at 10 MHz) Loop resistance: Ã¢¤ 120.00 Ã©/km Wave impedance: 100 Ã© ±15Ã© (at 100 MHz) Nominal voltage, cable: 600 V Test voltage Core/Core: 2000 V (50Hz, 1min.) Test voltage Core/Shield: 2000 V (50Hz, 1min.) Minimum bending radius, fixed installation: 3 x D Minimum bending radius, flexible installation: 7 x D Smallest bending radius, fixed installation: 20 mm Smallest bending radius, movable installation: 46 mm Near end crosstalk attenuation (NEXT): 80 dB (with 1 MHz) 76 dB (at 4 ÃHz) 70 dB (at 10 MHz) 65 dB (at 16 MHz) 63 dB (at 20ÃHz) 60 dB (at 31.25ÃHz) 55 dB (at 62.5ÃHz) 50 dB (at 100 MHz) Shield attenuation: 2.1 dB (with 1 MHz) 4 dB (at 4 ÃHz) 6.3 dB (at 10 MHz) 8 dB (at 16 MHz) 9 dB (at 20ÃHz) 11.4 dB (at 31.25ÃHz) 16.5 dB (at 62.5ÃHz) 21.3 dB (at 100 MHz) Flame resistance: according to UL1685 (CSA FT 4) Resistance to oil: Resistant to oil to a limited extent Other resistance: UV resistant According to UL1581, Section 1200 Ambient temperature (operation): -40°C ... 70°C (cable, fixed installation) -40°C ... 70°C (Cable, flexible installation) Ambient temperature (installation): -20°C ... 60°C
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 (When plugged in) IP65 (When plugged in) IP65/IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation)
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
